Waste Water Storage Tanks For UASB Reactor In Wastewater Treatment Plant

Waste Water Storage Tanks For UASB Reactor In Wastewater Treatment Plant
Waste Water Storage Tanks For UASB Reactor In Wastewater Treatment Plant

Large Image :  Waste Water Storage Tanks For UASB Reactor In Wastewater Treatment Plant

Product Details:
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, NSF - 61 , AWWA D103 , OSHA , BSCI
Model Number: W20160831001
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 30 days after deposit received
Supply Ability: 60 sets per month
Detailed Product Description
Foundation: Concrete Or Glass Fused Steel Tank Body: Glass Fused To Steel
Service Life: ≥30 Years Holiday Test: >1500v
Tank Material: Glass Fused To Steel Corrosion Integrity: Excellent
High Light:

0.25mm Waste Water Storage Tanks

,

PH14 Wastewater Storage Tanks

Using Wastewater Storage Tanks As UASB Reactor in wastewater treatment plant



We specialized in bolted steel tanks of excellent corrosion resistance, Surface of the tank is well treated with advanced technology, so it can withstand the harsh environment. It is an ideal tank option for the wastewater treatment plant. Both sides of the panel are coated with enamel, the thickness is 0.25mm~0.4mm, standard PH is 3~11 if, for special use, PH can be updated to 1~14. Our bolted steel wastewater storage tanks are widely used as UASB reactor in wastewater treatment plant



What is UASB ( Upflow Anaerobic Sludge Bed )



UASB reactor tank is a kind of anaerobic biological reaction tank treated with sewage, and its superiority is gradually recognized and valued in the treatment of high concentration organic wastewater. UASB reactor was set at the top of the gas and solid and liquid three-phase separator, the lower part of sludge suspension layer and sludge bed, wastewater by uniform pumping sludge bed area at the bottom of the reactor, and anaerobic sludge fully contact reaction, organic matter is decomposed into biogas anaerobic microorganisms.



Wastewater Storage Tanks Specifications





Coating color dark blue, dark green , white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm , depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coating internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet , around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance

excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds





Wastewater Storage Tanks Manufacturer



Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.

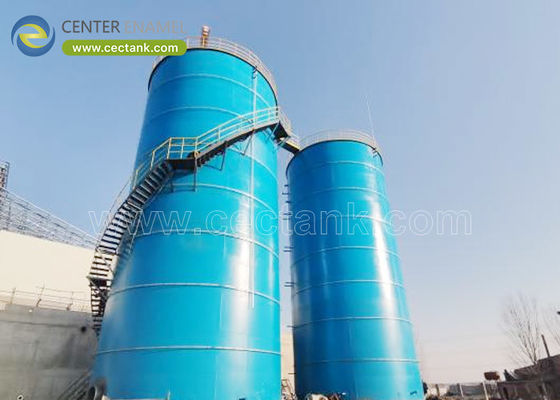

Wastewater Storage Tanks Project References



Waste Water Storage Tanks For UASB Reactor In Wastewater Treatment Plant 0
