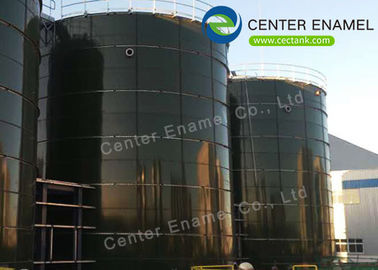

Bolted Steel Liquid Storage Tanks As CSTR Rector In Wastewater Treatment Project
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | J2016012327 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 0-60 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | J2016012327 |
| Capacity: | 20 M3 - 18,000 M3 | Color: | Customized |
| Material: | Glass Fused To Steel | Acid And Alkalinity Proof :: | Standard Sheet PH：3～11; Special Sheet PH： 1～14 |
| Coating Color: | Ark Green, White, Blue, Color Can Be Customized Upon Your Request | Holiday Test: | > 1500 V |
| Corrosion Resistance: | Excellent. Suitable For Waste Water Treatment, Sewage Treatment, Effluent Treatment.、salt Water、sea Water、high-sulfur Crude Oil、salt Fox、organic And Inorganic Compounds | High Light: | liquid fertilizer storage tanks,crude oil storage tank |
Product Description
CSTR reactor plays an important role in wastewater treatment projects, which equipped with mixing equipment to make a high concentration of suspended solids organic wastewater and anaerobic microorganisms in a relatively complete mixture state, so as to degrade organic pollutants in the wastewater and remove suspended solids. CSTR reactor is mainly used for high concentration suspended solids wastewater or waste residue, such as livestock and poultry feces, crop straw, kitchen waste, municipal sludge, distiller's grains, etc.
Our bolted steel liquid storage tanks are the perfect choice for CSTR rector, which are constructed from individual steel panels that are manufactured and finished at our factory, then transported to the project site and bolted together. Glass-Fused-to-Steel technology is the premium coating technology in the storage tanks market. Glass-lined steel tanks have been used for water storage for decades worldwide.
Bolted Steel Liquid Storage Tanks Specifications
| Coating color | dark blue, dark green, white, and customized |
| A standard steel plate size | effective size 2400mm x 1200 m |
| Steel plates thickness | 3mm - 12mm, depends on the diameter & height |
| Coating thickness | 0.25mm - 0.4mm, two coatings internal and external |
| Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
| Adhesion | 3,450N/cm |
| Elastic | same as steel sheet, around 500KN/mm |
| Hardness | 6.0 Mohs |
| Service life | >30 years |
| Spark test | >1500 V |
| Permeability | gas and liquid impermeable |
| Easy yo clean | smooth, glossy, inert, anti-adhesion |
| Corrosion resistance |
excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds
|
Bolted Steel Liquid Storage Tanks Manufacturer
Center Enamel is a well established, world-leading storage tanks manufacturer in China. Center Enamel provides the best storage tank solutions for storage tank projects for drinking water, Agricultural Water Tanks Dry Bulk Storage Tanks Potable Water Tanks Process Water Tanks wastewater, biogas storage, municipal sewage, firewater, grain storage, agricultural, oil, and other bulk liquids. Center Enamel has more than 30 years of industry experience and proud track record in the design and site erection of storage tanks and over the years has grown into a world-leading storage tanks manufacturer. Until 2018, Center Enamel storage tanks have been exported to more than 60 countries including the USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India, and South Africa, etc. The superior product quality and prompt service gain us worldwide recognition.
Bolted Steel Liquid Storage Tanks Project Reference
