Place of Origin: | China |
Brand Name: | CEC TANKS |
Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
Model Number: | W |
Minimum Order Quantity: | 1set |
Price: | $5000~$20000 one set |
Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden |
Delivery Time: | 10-30 days after deposit received |
Payment Terms: | L/C, T/T |
Supply Ability: | 60 sets per month |
Detail Information |
|||
Place of Origin | China | Brand Name | CEC TANKS |
---|---|---|---|
Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W |
Coating Thickness: | 0.25mm~0.40mm , Two Layer Of Coating Internal And External | Adhesion: | 3,450N/cm |
Steel Grade: | ART 310 | Size Of Panel: | 2.4M * 1.2M |
Capactiy Available: | 20 M3 To 20,000 M3 | Easy To Clean: | Smooth, Glossy, Inert, Anti-adhesion |
Easy To Cle: | Smooth, Glossy, Inert, Anti-adhesion | Warranty Period: | 2 Years Free Of Charge |
Impact Resistance: | Excellent | FeatureEco-friendly: | Durability |
Capactiy Availabl: | E20 M3 To 20,000 M3 | Impact: | ResistanceExcellent |
Applications: | Water , Waste Water, Digester , Reactor , Grain , Sludge , Chemicals | Defect Free: | Minimum Maintenance Needed |
Steel Plates Thickness: | 3mm - 12mm , Depends On The Diameter & Height | High Light: | fixed roof storage tank,municipal water storage tanks |

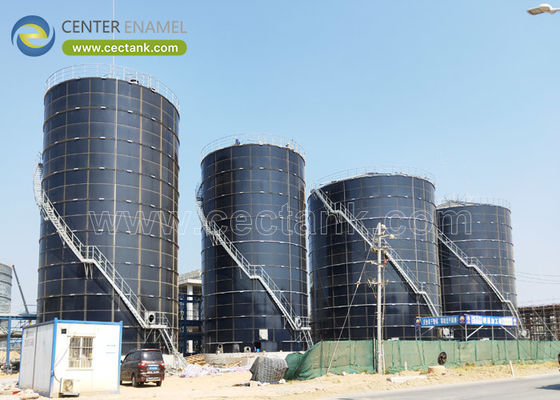

Glass Fused to Steel Crude Oil Wastewater Storage Tanks With AWWA D103-09 Standards
With more than 30 years of experience in Glass-Fused-to-Steel tanks design, manufacturer, and installation, Center Enamel provides the industry’s premier storage solution for crude oil wastewater storage. Glass fused to steel tanks combine the strength and flexibility of steel and the corrosion resistance of glass. After firing at 820°C-930°C high temperature, the molten glass reacts with the steel plate surface to form an inert and inorganic bond, which combines the strength and flexibility of steel and outstanding corrosion resistance of glass, so Glass-Fused-to-Steel tanks can provide many advantages over standard epoxy or weld painted storage tanks. Glass-Fused-to-Steel technology is the premium coating technology in the storage tanks market, and Glass-Fused-to-Steel tanks are widely used in bio-energy, municipal sewage, landfill leachate, and industrial wastewater treatment, etc. Applications.
Glass Fused to Steel Crude Oil Wastewater Storage Tanks Specifications
Coating color | dark blue, dark green, white, and customized |
A standard steel plate size | effective size 2400mm x 1200 m |
Steel plates thickness | 3mm - 12mm, depends on the diameter & height |
Coating thickness | 0.25mm - 0.4mm, two coatings internal and external |
Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
Adhesion | 3,450N/cm |
Elastic | same as steel sheet, around 500KN/mm |
Hardness | 6.0 Mohs |
Service life | >30 years |
Spark test | >1500 V |
Permeability | gas and liquid impermeable |
Easy yo clean | smooth, glossy, inert, anti-adhesion |
Corrosion resistance |
excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds
|
Glass Fused to Steel Crude Oil Wastewater Storage Tanks Manufacturer
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing, and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including the USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India, and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
Glass Fused to Steel Crude Oil Wastewater Storage Tanks References
