Glass Fused To Steel Bolted Municipal Sewage Storage Tank Panel Size 2.4M * 1.2M

China Center Enamel Co.,Ltd certification
China Center Enamel Co.,Ltd certification
It is really a great pleasure to work with this company ,I can always get the solution timely and on budget

—— Micheal Jonson

Highly recommend this company ! I am a water and wastewater project contractor ,.I am so glad to find such a trustworthy tank supplier .

—— Martin Jäger

Good service ,very patient to help me find the best solution .I will buy more tanks from them in the near future .

—— William Koh

The GFS tank are very durable and very strong enough. The installation work are very simple and rapid for this work job. Overall, the GFS tank are highly recommend

—— HW Chua

I'm Online Chat Now

Glass Fused To Steel Bolted Municipal Sewage Storage Tank Panel Size 2.4M * 1.2M

Glass Fused To Steel Bolted Municipal Sewage Storage Tank Panel Size  2.4M * 1.2M
Glass Fused To Steel Bolted Municipal Sewage Storage Tank Panel Size  2.4M * 1.2M

Large Image :  Glass Fused To Steel Bolted Municipal Sewage Storage Tank Panel Size 2.4M * 1.2M

Product Details:
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden
Delivery Time: 10-30 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Detailed Product Description
Foundation: Concrete Or Glass Fused Steel Chemical Resistance: Excellent
Steel Plates Thickness: 3mm To 12mm , Depends On The Tank Structure Roof Available: Glass Fused Steel Roof , Membrane Roof, Aluminum Roof , GRP Roof
Corrosion Integrity: Excellent Size Of Panel: 2.4M * 1.2M
High Light:

water treatment tank


sewage treatment tank

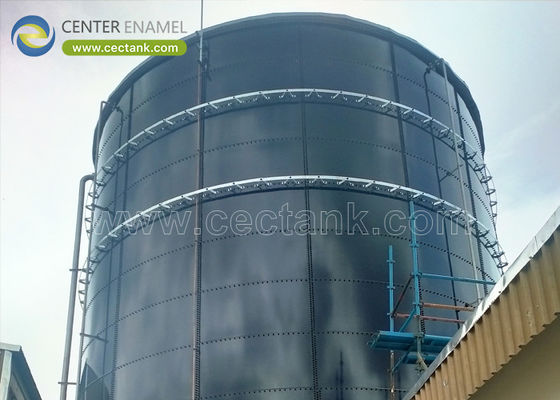

Glass Fused To Steel Bolted Municipal Sewage Storage Tank



With the rapid development of the global economy, the problem of environmental pollution, especially the treatment of municipal sewage has become a research hotspot in many countries. municipal sewage is the outcome of city development. With the development of urbanization and industrialization, its output has been increasing, and pollution has become increasingly serious, which has seriously restricted the sustainable development of the urban economy.

As a storage tank for municipal sewage treatment, Glass Fused To Steel Bolted Tank has become the preferred choice of municipal sewage storage solution in municipal sewage treatment plants of each city.


Why the municipal sewage treatment plant choose Glass Fused To Steel Bolted Tank?


The service life is more than 30 years with lower maintenance, Glass-Fused-to-Steel is two materials - Enamel glaze and steel plate surface are fused together after heat treatment at 850-940℃ and then create a tough and inert bond, which combines the strength of steel with the outstanding chemical and physical corrosion resistance of glass. Then it is easy to install, dismantled, removed and relocated, Glass-Fused-To-Steel tank is assembled by Glass-Fused-To-Steel plate and fixed by self - locking bolt. Then the sealing glue is applied to the joint gap and bolt position to improve the airtightness of the tank. Also, the tank’s color can be customized, which enables the Glass-Fused-to-Steel tank better integrate with the surrounding environment. That is why so many municipal sewage treatment plants choose Glass-Fused-to-Steel Tank as the municipal sewage storage tank.

Glass Fused To Steel Bolted Municipal Sewage Storage Tank Specifications


Coating color dark blue, dark green, white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm, depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coatings internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet, around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance

excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil,

salt fox, organic and inorganic compounds




About Center Enamel

Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
