Place of Origin: | China |
Brand Name: | CEC TANKS |
Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
Model Number: | W |
Minimum Order Quantity: | 1set |
Price: | $5000~$20000 one set |
Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden |
Delivery Time: | 10-30 days after deposit received |
Payment Terms: | L/C, T/T |
Supply Ability: | 60 sets per month |
Detail Information |
|||
Place of Origin | China | Brand Name | CEC TANKS |
---|---|---|---|
Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W |
Coating Thickness: | 0.25mm~0.40mm , Two Layer Of Coating Internal And External | Adhesion: | 3,450N/cm |
Service Life: | ≥30 Years | Steel Grade: | ART 310 |
Size Of Panel: | 2.4M * 1.2M | Acid And Alkalinity Proof: | Standard Coating Suits For PH3 - PH11, Special Coating Suits For PH1 - PH14 |
Capactiy Available: | 20 M3 To 20,000 M3 | Easy To Clean: | Smooth, Glossy, Inert, Anti-adhesion |
Steel Plates Thickness: | 3mm - 12mm , Depends On The Diameter & Height | Usage: | Waste Water Treatment , Sewage Treatment, Effluent Treatment, Ect. |
Easy To Cle: | Smooth, Glossy, Inert, Anti-adhesion | Warranty Period: | 2 Years Free Of Charge |
Defect Free: | Minimum Maintenance Needed | Impact Resistance: | Excellent |
Foundation: | Concrete Or Glass Fused Steel | Installation: | By Jacking Machine Or Steel Pole, Fast In Installation |
High Light: | commercial water storage tanks,municipal water storage tanks |

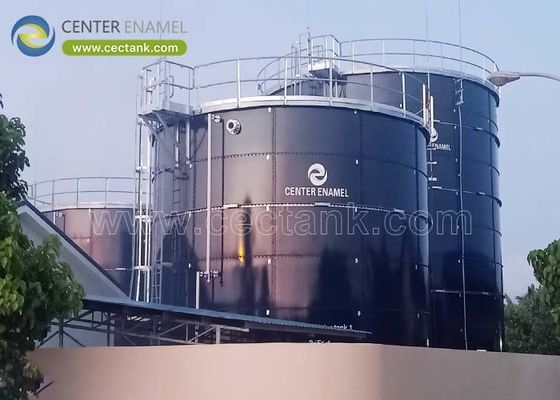

AWWA D103 / EN ISO28765 Standard Bolted Tanks for Industrial Water Storage
Center Enamel's bolted tanks engineering design meet or exceed AWWA D103-09 and EN/ISO28765:2011, and our bolted tank engineers make tank engineering calculation on each specific tank structure according to project local environmental conditions, such as snow load, wind speed, seismic zone, etc., to make sure the tank structure's adequate security in long-term service life.
Design Criterion
Design Code | AWWA D103 |
Wind load | 250 KM/h |
Freeboard | 300mm or as per request |
Seismic Zone | D |
Fluid Temperature | -5~ 77 Degree C. |
PH Range | 3 - 11 |
Specific Gravity | 1.105 |
Edge Protection | Yes, enameled edge |
Vacuum | -500PA( enamel roof), -200PA (membrane roof) |
Operating temperature | Ambient |
Operating pressure | Atmospheric |
Bolts | galvanized bolt with PP capped |
Bottom connection | Above ground (as per foundation drawings) |
Tank color | As customer’s request |
Center Enamel Co., Ltd is the first and most experienced Glass-Fused-to-Steel bolted tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA, etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture, etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including the USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa, etc. The superior product quality and prompt service gain us worldwide recognition.
