Product Details:
Payment & Shipping Terms:
|
| Coating Thickness: | 0.25mm~0.40mm , Two Layer Of Coating Internal And External | Adhesion: | 3,450N/cm |
|---|---|---|---|
| Service Life: | ≥30 Years | Steel Grade: | ART 310 |
| Roof Available: | Glass Fused Steel Roof , Membrane Roof, Aluminum Roof , GRP Roof | Size Of Panel: | 2.4M * 1.2M |
| Acid And Alkalinity Proof: | Standard Coating Suits For PH3 - PH11, Special Coating Suits For PH1 - PH14 | Applications: | Water , Waste Water, Digester , Reactor , Grain , Sludge , Chemicals |
| Capactiy Available: | 20 M3 To 20,000 M3 | Feature: | Eco-friendly, Durability |
| Easy To Clean: | Smooth, Glossy, Inert, Anti-adhesion | Steel Plates Thickness: | 3mm - 12mm , Depends On The Diameter & Height |
| Installation: | By Jacking Machine Or Steel Pole, Fast In Installation | Corrosion Integrity: | Excellent |
| Warranty Period: | 2 Years Free Of Charge | Impact Resistance: | Excellent |
| High Light: | grain storage tanks,irrigation water storage tanks |
||

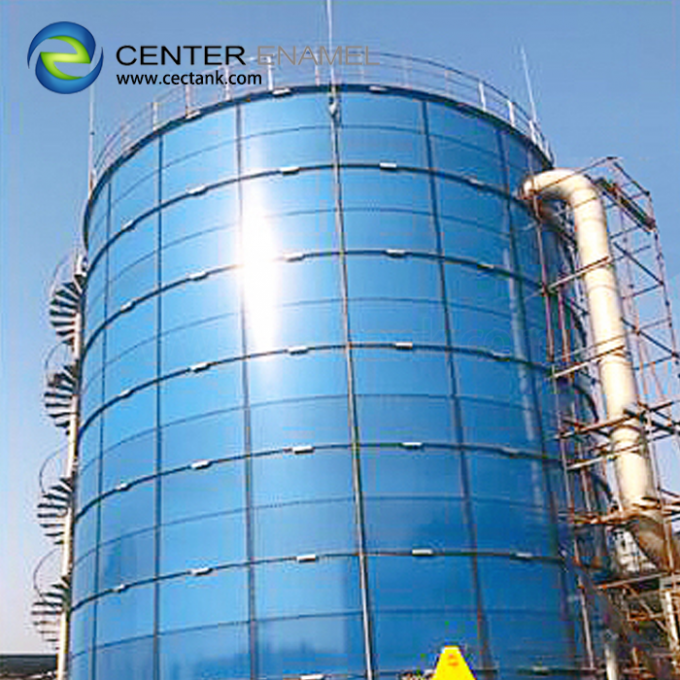

Glass-Fused-to-Steel Bolted Steel Water Tanks for Farms & Agricultural Use
Agriculture Water Storage Tank
Many rural properties do not have access to mains water supply and instead rely on private sources of water. Glass-Fused-to-Steel bolted steel water tanks are widely used to store rainwater, carted water, groundwater and surface water for farm and agricultural use. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including the USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India, and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
What're glass-fused-to-steel tanks?
After firing at 820°C-930°C high temperature, the molten glass reacts with the steel plate surface to form an inert and inorganic bond, which combines the strength and flexibility of steel and outstanding corrosion resistance of glass, so Glass-Fused-to-Steel tanks can provide many advantages over standard epoxy or weld painted storage tanks.
Fundamental Characteristics
Coating Color: dark green, white, blue, color can be customized
Coating Thickness: 0.25~0.40mm, double coating
Acid and alkalinity: Standard sheet PH: 3~11
Proof: Special sheet PH: 1~14
Adhesion: 3,450 N / cm
Elastic: Same as steel sheet, around 500 Kn / mm
Hardness: 6.0( Mohs )
Service life: >30Years
Holiday test: >1500v
Easy to clean: Smooth, glossy, inert, nonadhesive
Corrosion resistance: Excellent, suitable for wastewater,salt water,seawater,high-sulfur crude oil, salt fox, organic and inorganic compounds
Application of Agriculture Water Storage Tank
| Power & Energy | Wastewater Treatment | Water Supply and Treatment | Industrial Dry Bulk Storage |
| Biogas Biomass | Buffer Pool | Potable Water | Mineral |
| Aviation Oil | Aerobic Reactor | Bitter-brackish Water | Wood Product |
| Process Water | Biological Filter | Raw Water/Fresh Water | Chemicals |
| Boiler Feedwater | Effluent Treatment | Water Purifying Tank | Mining Industry |
| Fuel Oil | Regulating Tank | Disinfecting Water | Grain/seeds |
| Kerosene | Anaerobic Reactor | Fire-fighting Water | Foods |
| Coal Storage | Leachate Storage | Saline Water/Brine Water | Plasthetics |
| Fly Ash Silo | Irrigation Water | Sedimentation Container | Petrochemicals |
Advantage of Agriculture Water Storage Tank
- short construction period
- superior corrosion resistance, service life is more than 30 years
- low project cost
- tank volume can be easily expanded
- beautiful appearance, color can be customized
- not subject to weather conditions
- no need big installation equipment
- easily expand, dismantle, move
