Bolted Steel Liquid Storage Tanks For Crude Oil Storage Project
| Place of Origin: | CHINA |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W20180508003 |
| Minimum Order Quantity: | 1 SET |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates;wooden pallets and wooden box |
| Delivery Time: | 10-30 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | CHINA | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W20180508003 |
| Coating Color: | Dark Green, Or Customizing Colors | Coating Thickness: | 0.25~0.40mm, Double Coating |
| Acid And Alkalinity Proof: | Standard Coating Suits For PH3 - PH11, Special Coating Suits For PH1 - PH14 | Adhesion: | 3,450N/cm |
| Hardness: | 6.0 Mohs | Holiday Test: | >1500V |
| Installation: | By Jacking Machine Or Steel Pole, Fast In Installation | Foundation: | Concrete Or Glass Fused Steel |
| Steel Grade: | ART 310 | High Light: | liquid fertilizer storage tanks,crude oil storage tank |
Product Description

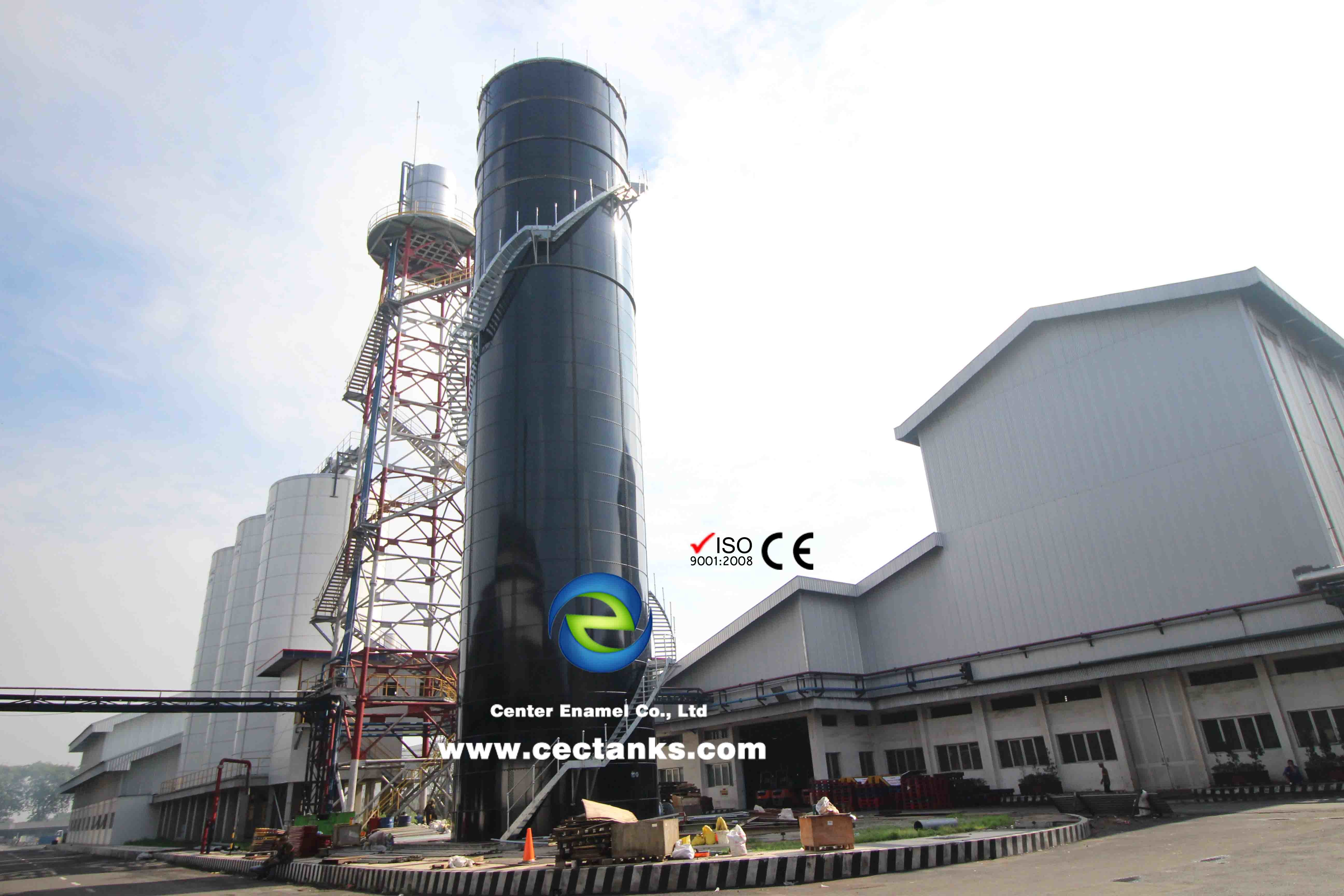

Bolted steel liquid storage tanks for the crude oil storage project
Bolted steel liquid storage tanks
Bolted steel liquid storage tanks are a convenient storage solution for either liquids or water storage. They are constructed from individual steel panels that are manufactured and finished in the factory, then transported to the site and bolted together. Unlike conventional concrete or welded storage solutions, which require extensive fabrication and finishing processes onsite, bolted tanks offer quick installation, lower shipping costs, and they can be assembled in nearly any type of weather, eliminating many weather-related delays. Bolted steel liquid storage tanks are widely used to store crude oil in crude oil storage project.
Application of enamel bolted tank
| Power and Energy | Water supply and Treatment | Wastewater Treatment | Industrial dry bulk storage |
| Biogas biomass | Potable water | Buffer Pool | Mineral |
| Aviation oil | Bitter-brackish water | Aerobic Reactor | Wood product |
| Process water | Raw water/Freshwater | Biological Filter | Stone/Clay/Glass |
| Boiler Feedwater | Aeration | Effluent Treatment | Chemicals |
| Fuel Oil | Biological Filter | Regulating Tank | Petrochemicals |
| Kerosene | Water Purifying | Anaerobic reactor | Foods |
| DI water | Fire-fighting water | Leachate Storage | Plasthetics |
| Coal Storage | Saline Water/Brine Water | Irrigation water | Grain / Seeds |
| Diesel | Sedimentation Container | Water Purifying | |
| Drilling mud | Raw Water | Sedimentation Container | |
| Reverse osmosis water | Sea water desalinization | Sludge Tank |
What are the advantages of the bolted steel tank
-- Fast installation and low cost
-- Pleasing appearance, harmoniously with around buildings
-- Excellent resistance of acid and alkali
-- Climate adaptable, can be used in a more all kinds of weather conditions ( a good solution for some areas )
-- Easy assembled, detachability, no requirement for the large installation tools. No requirement for the sites can be installed underground, above ground, indoor, even on roofs.
-- Comparing with other tanks, many years later enamel bolted tank is still bright with extremely low maintenance cost.
-- The volume can be expended for future requirement, before manufacture we can design it, and we can design it as customers’ requirement with free charge
About Us
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61, API, and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 45 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India, and South Africa, etc. The superior product quality and prompt service gain us worldwide recognition.
