Customized Anaerobic Digester With Super Corrosion Resistance And Long Service Life
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W20160504007 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 0-60 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W20160504007 |
| Material: | Glass Fused To Steel | Foundation: | Concrete Or Glass Fused Steel |
| Steel Grade: | ART 310 | Roof: | Can Be Glass Fused Steel Roof , Membrane Roof, Aluminum Roof , GRP Roof |
| Service Life: | Over 30 Years | High Light: | anaerobic sludge digester,anaerobic digestion tanks |
Product Description

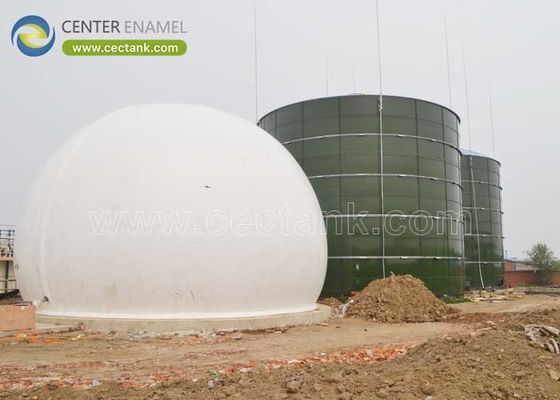

Customized Anaerobic Digester With Super Corrosion Resistance And Long Service Life
What is glass fused to steel tank ?
Glass fused steel tank is superior in corrosion resistant as it is actually the combination of “ glass ” and “ steel “ . So it has the advantages of both : superior corrosion resistance of glass , and strength and flexibility of steel . This is the combination of both to achieve the best . Glass fused steel tank is the best tank to be used as anaerobic reactor, especially when the media inside than tank could be highly corrosive.
The high temperature fusion of glass to steel fired at 800-950 degree results in an inert , durable finish . Applied to both interior and exterior , the GFS technology is able to withstand the rigorous of the construction site and provide many years of trouble free service in harsh environments .
The steel round (cylindrical) shell of the tank is built from two – layer( three layers) enameled sheets coated on both sides . The sheets are attached with special high-grade bolts and sealed by constantly flexible silicone (sealant) . The surface of connecting material and the shell itself are properly treated .
Comparation of different tanks
| Characteristic | Cement | 304 S.S. | FRP | Enamel tank (Glass-fused-to-Steel tanks) |
| Product Color | grey | Metal color | Any color | Green, white, blue, any color |
| Coating Thickness | No | no | >300mm | 0.2-0.4mm |
| Steel Thickness | >250mm | >3mm | >300mm | 2-12 mm |
| Aid & Alkali Resistance | normal | normal | Special fiber | excellent |
| Hardness | C15-C60, | HV310-370, Mohs 5.5 | Barcol hardness 40 | Mohs 6-7 |
| Service Life | 50 years | >30 years | <10 years | >30 years |
| Pressure Standing Ability | strong | normal | normal | strong |
| Installation Period | > 35 days | >20 days | >30 days | 7-10 days |
| Installation | Complex, request big professional equipment | Professional people, work high above the ground, dangerous installation | work high above the ground, dangerous installation, have request on weather condition | Safe installation, easy, fast, do not have requests on weather condition |
| Removal | impossible | Possible, but high cost | impossible | Possible, low cost |
| Out Appearance | normal |
Ok but only one color |
ok | Good looking |
Specification of GFS tanks
1. Steel plates thickness : 3mm - 12mm , depends on the diameter & height
2. Coating thickness : 0.25mm - 0.4mm, two coating internal and external
3. Acid and alkalinity proof : standard coating suits for PH3 - PH11 , special
4. coating suits for PH1 - PH14
5. Adhesion : 3,450N/cm
6. Elastic : same as steel sheet , around 500KN/mm
7. Hardness : 6.0 Mohs
8. Service life : >30 years
9. Spark test : >1500 V
10. Permeability : gas and liquid impermeable
11. Easy yo clean : smooth , glossy , inert , anti-adhesion
