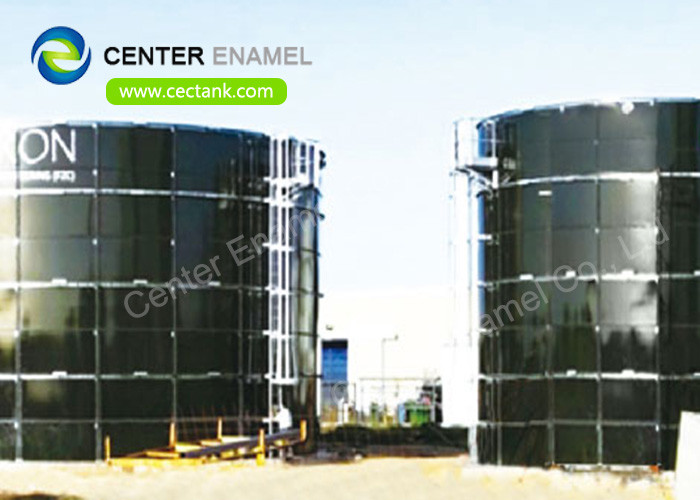

ART 310 Bolted Steel Waste Water Liquid Storage Tanks Chemical Resistance
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden |
| Delivery Time: | 10-30 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W |
| Tank Material: | Glass Fused To Steel | Foundation: | Concrete Or Glass Fused Steel |
| Steel Grade: | ART 310 | Roof Available: | Glass Fused Steel Roof , Membrane Roof, Aluminum Roof , GRP Roof |
| Corrosion Integrity: | Excellent | Chemical Resistance: | Excellent |
| Elastic: | Same As Steel Sheet ,around 500KN /mm | High Light: | ART 310 Liquid Storage Tanks,500KN /mm Liquid Storage Tanks |
Product Description
Center Enamel Provides Bolted Steel Water & Wastewater Tanks For Customers Around the World
Center Enamel design, manufacture and installation a comprehensive range of completely bolted steel water and wastewater Tanks from 20m³– 25,000 m³ capacity. A large range of chemical-resistant coatings are also available. Center Enamel bolted steel water and wastewater Tanks can be used to store/hold water, sewage, wastewater, and abrasive liquids.
Why the water and wastewater treatment plant choose bolted steel Tank?
The service life is more than 30 years with a lower maintenance, Glass-Fused-to-Steel is two materials - Enamel glaze and steel plate surface are fused together after heat treatment at 850-940℃ and then create a tough and inert bond, which combines the strength of steel with the outstanding chemical and physical corrosion resistance of glass. Then it is easy to install , dismantled, removed and relocated,Glass-Fused-To-Steel tank is assembled by Glass-Fused-To-Steel plate and fixed by self - locking bolt. Then the sealing glue is applied to the joint gap and bolt position to improve airtightness of the tank. Also tank’s color can be customized ,which enable the Glass-Fused-to-Steel tank better integrate with the surrounding environment. That is why so many municipal sewage treatment plant choose Glass-Fused-to-Steel Tank as the municipal sewage storage tank.
Bolted Steel Water & Wastewater Tanks Specifications
| Coating color | dark blue, dark green, white, and customized |
| A standard steel plate size | effective size 2400mm x 1200 m |
| Steel plates thickness | 3mm - 12mm, depends on the diameter & height |
| Coating thickness | 0.25mm - 0.4mm, two coatings internal and external |
| Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
| Adhesion | 3,450N/cm |
| Elastic | same as steel sheet, around 500KN/mm |
| Hardness | 6.0 Mohs |
| Service life | >30 years |
| Spark test | >1500 V |
| Permeability | gas and liquid impermeable |
| Easy yo clean | smooth, glossy, inert, anti-adhesion |
| Corrosion resistance | excellent! Suitable for wastewater saltwater, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds |
Bolted Steel Water & Wastewater Tanks Manufacturer
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2020, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 80 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
Bolted Steel Water & Wastewater Tanks Project References
