Center Enamel Glass Lined Steel Tanks For Potable Water Storage

Center Enamel Glass Lined Steel Tanks For Potable Water Storage
Center Enamel Glass Lined Steel Tanks For Potable Water Storage

Large Image :  Center Enamel Glass Lined Steel Tanks For Potable Water Storage

Product Details:

Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden
Delivery Time: 10-30 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Detailed Product Description
Tank Body Color: Dark Green / Can Be Customized Corrosion Integrity: Excellent
Steel Plates Thickness: 3mm To 12mm , Depends On The Tank Structure Chemical Resistance: Excellent
Size Of Panel: 2.4M * 1.2M Easy To Clean: Smooth, Glossy, Inert, Anti-adhesion
High Light:

liquid fertilizer storage tanks

,

crude oil storage tank

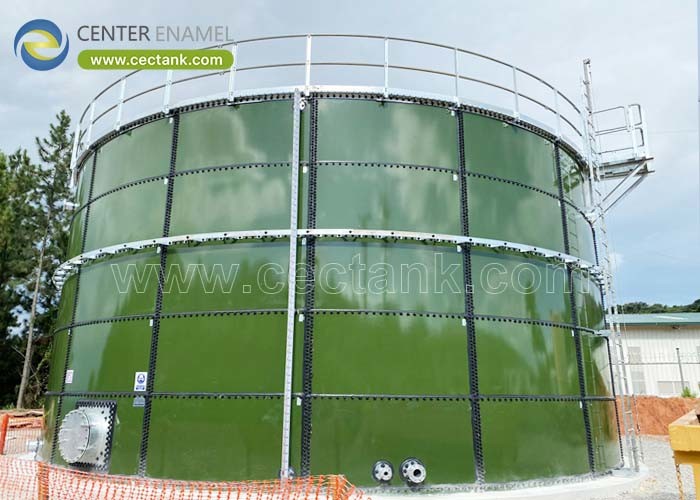

Center Enamel provide Glass Lined Steel Tanks For Potable Water Storage



Center Enamel provide Glass Lined Steel Tanks For Potable Water Storage. Glass Lined Steel Tanks are made from individual sections including steel plate, valves, doors or manhole covers and roofs. All the individual sections are manufactured and finished offsite, greatly reducing the time and labor involved in the field. Unlike conventional concrete or welded storage solutions, which require extensive fabrication and finishing processes onsite, bolted tanks offer quick installation, lower shipping costs, and they can be assembled in nearly any type of weather, eliminating many weather-related delays.



Glass Lined Steel Tanks Specifications



Coating color dark blue, dark green, white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm, depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coatings internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet, around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance excellent! Suitable for wastewater saltwater, seawater, high sulfur crude oil,
salt fox, organic and inorganic compounds







Center Enamel is not only the first Glass Lined Steel Tanks manufacturer and supplier in China, but also the most experienced Glass Lined Steel tanks manufacturer in all of Asia. Center Enamel Glass Lined Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61, API and NFPA etc. international standards. CEC bolted steel tanks are wildly used in in many industrial, commercial, residential, municipal and rural applications. Until 2018, Center Enamel bolted steel tanks have been exported to more than60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.





Project References



Center Enamel Glass Lined Steel Tanks For Potable Water Storage 0
