Bolted Steel Potable Drinking Water Storage Tanks 0.40mm Coating

Product Details
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 10-30 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Detail Information

Place of Origin China Brand Name CEC TANKS
Certification ISO 9001:2008, AWWA D103 , OSHA , BSCI Model Number W
Coating Thickness: 0.25mm~0.40mm & Double Coating Adhesion: Adhesion
Hardness: 6.0Mohs Service Life: ≥30 Years
Holiday Test: >1500v Permeability: Gas / Liquid Impermeable
Capacity: 20 M³ To 18,000 M³ Tank Material: Glass Fused To Steel
High Light:

0.40mm Coating Water Storage Tanks

,

6.0Mohs Water Storage Tanks

Product Description

Center Enamel Provide Bolted Steel Potable Water Storage Tanks and Drinking Water Tanks



Our range of Potable Water Tanks conforms to NSF standards for the safe storage of drinking water. Starting at 20m³ and ranging up to 25,000 m³ our Potable Water Tanks are made from Glass-Fused-to-Steel plate, which is a tough and durable material which will ensure the tank you buy is fit for purpose and made of the highest quality materials.



Center Enamel provide boltes Steel Tanks For Potable Water Storage. Glass Lined Steel Tanks are made from individual sections including steel plate, valves, doors or manhole covers and roofs. All the individual sections are manufactured and finished offsite, greatly reducing the time and labor involved in the field. Unlike conventional concrete or welded storage solutions, which require extensive fabrication and finishing processes onsite, bolted tanks offer quick installation, lower shipping costs, and they can be assembled in nearly any type of weather, eliminating many weather-related delays.



Bolted Steel Potable Water Storage Tanks Specifications



Coating color dark blue, dark green, white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm, depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coatings internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet, around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance excellent! Suitable for wastewater saltwater, seawater, high sulfur crude oil,
salt fox, organic and inorganic compounds







Center Enamel is not only the first Glass Lined Steel Tanks manufacturer and supplier in China, but also the most experienced Glass Lined Steel tanks manufacturer in all of Asia. Center Enamel Glass Lined Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61, API and NFPA etc. international standards. CEC bolted steel tanks are wildly used in in many industrial, commercial, residential, municipal and rural applications. Until 2020, Center Enamel bolted steel tanks have been exported to more than 80 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.

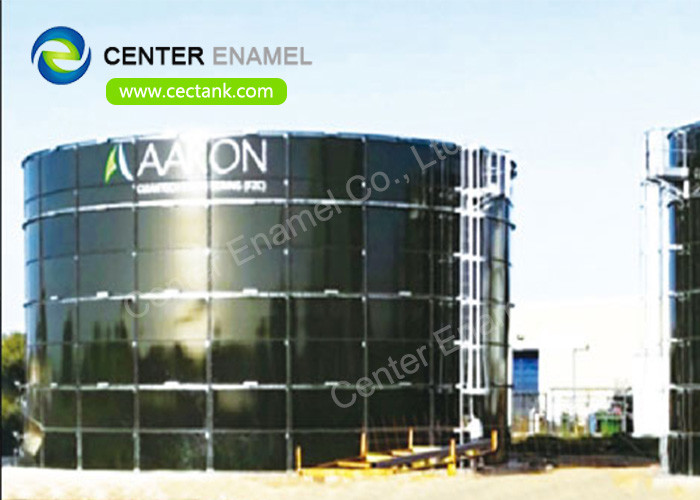

Bolted Steel Potable Water Storage Tanks Project References
