Glass Fused To Steel Bolted Biogas Storage Tank Dark Green

Product Details
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden
Delivery Time: 10-30 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Detail Information

Place of Origin China Brand Name CEC TANKS
Certification ISO 9001:2008, AWWA D103 , OSHA , BSCI Model Number W
Tank Body Color: Dark Green / Can Be Customized Corrosion Integrity: Excellent
Steel Plates Thickness: 3mm To 12mm , Depends On The Tank Structure Chemical Resistance: Excellent
Size Of Panel: 2.4M * 1.2M Easy To Clean: Smooth, Glossy, Inert, Anti-adhesion
High Light:

Bolted Biogas Storage Tank

,

Glass Fused Biogas Storage Tank

Product Description

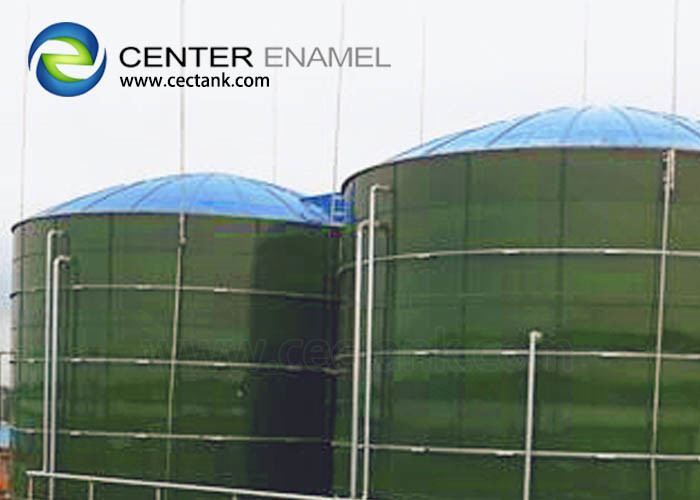

Glass Fused to Steel Bolted Biogas Storage Tank



Biogas renewable energy uses a process called anaerobic digestion to convert commercial and industrial waste into on-site electricity, heat and clean methane gas. The organic waste stream that supplies our factories includes supermarkets, kitchens, dairy products, vegetables, slaughterhouse and fishery waste, grain and legume residues, and general garden waste.



Anaerobic digestion produces large amounts of biogas, including methane and carbon dioxide. The cleaned methane fraction can be stored, pressurized and used to generate on-site electricity and heat, and the excess energy can be fed into the grid or used to power equipment and vehicles. The digestion by-products of this method can be easily and safely used as commercial organic compost or fertilizer.



Anaerobic digestion is not a new technology, but in the past 15 years, anaerobic digestion has been standardized and improved through extensive use and development in European (especially Germany) and British industries.



Biogas storage tank is also called biogas holder and is a kind of Anaerobic digestion tanks which are often cone shaped and supported at the centre with a single pole. The outer layer of membrane roof works as the protection for the inner membrane . The outer membrane is more strong and coated with UV resistance coating . Outer membrane can be against static electricity, ultraviolet radiation and aging. Inner coat can be against biogas leakage.





Glass Fused to Steel Bolted Biogas Storage Tank Specifications





Coating color dark blue, dark green, white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm, depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coatings internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet, around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance

excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil,

salt fox, organic and inorganic compounds













About Center Enamel Co., Ltd



Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
