Removable Expandable Biogas Storage Tanks For Biogas Projects
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W20160127023 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 0-60 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W20160127023 |
| PH Range: | 1~14 | Corrosion Integrity: | Excellent |
| Chemical Resistance: | Excellent | Relocation Capability: | Yes |
| Size Change: | Yes | Dismantle: | Yes |
| Weather Extremes: | Excellent | High Light: | Expandable Biogas Storage Tanks,Removable Biogas Storage Tanks |
Product Description
Removable and Expandable Biogas Storage Tanks for Biogas Projects
Our biogas storage tanks arer corrosion-resistance, removable, expandable. With Center Enamel, you can actually build a superior biogas storage tank while saving money. Glass fused to steel tank is the only patented option that forms and protects your tank in one step.
Our removable and expandable biogas storage tanks are assembled with special high-grade bolts and sealed by constantly flexible silicone ( sealant ). The connecting material and shell accessories are equipped by the surface treatment. Verified life time of such tank made from glass fused to steel plates is more than 30 years and have high abrasion resistance and chemical resistance ( pH 2 -13 ) standard. Glass fused to steel tanks are used for high variability of construction tank design ( diameter , height , piping connection ) and placing of technical equipment ( pumps , agitators , heating ).
Bolted Steel Biogas Storage Tanks Specififcations
| Coating color | dark blue, dark green, white, and customized |
| A standard steel plate size | effective size 2400mm x 1200 m |
| Steel plates thickness | 3mm - 12mm, depends on the diameter & height |
| Coating thickness | 0.25mm - 0.4mm, two coatings internal and external |
| Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
| Adhesion | 3,450N/cm |
| Elastic | same as steel sheet, around 500KN/mm |
| Hardness | 6.0 Mohs |
| Service life | >30 years |
| Spark test | >1500 V |
| Permeability | gas and liquid impermeable |
| Easy yo clean | smooth, glossy, inert, anti-adhesion |
| Corrosion resistance | excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds |
Leading Biogas Tanks Manufacturer in China
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel biogas Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel biogas tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel biogas tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. Our GFS biogas storage tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 65 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.

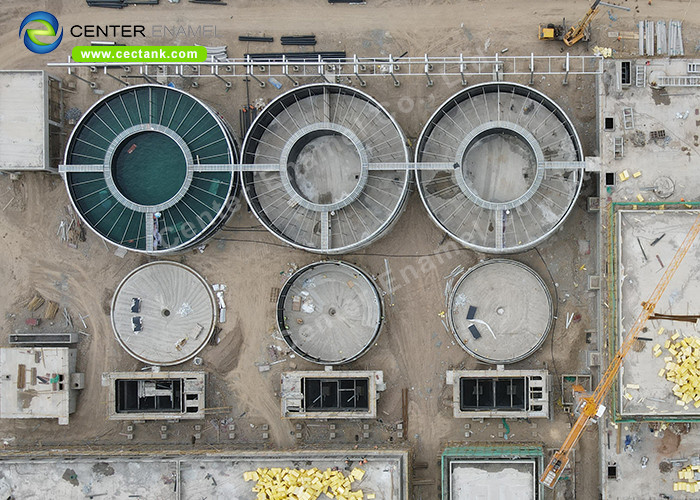

Biogas Tanks Project References
