Bolted Steel Industrial Water Storage Tanks Customized Color
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden |
| Delivery Time: | 10-30 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W |
| Corrosion Resistance: | Suitable For Waste Water Salt Water, Sea Water, High Sulfur Crude Oil, Salt Fox, Organic And Inorganic Compounds | Tank Body Color: | Dark Green / Can Be Customized |
| Steel Grade: | ART 310 | Roof Available: | Glass Fused Steel Roof , Membrane Roof, Aluminum Roof , GRP Roof |
| Corrosion Integrity: | Excellent | Foundation: | Concrete Or Glass Fused Steel |
| High Light: | Bolted Steel Water Storage Tanks,PH14 Water Storage Tanks |
||
Product Description

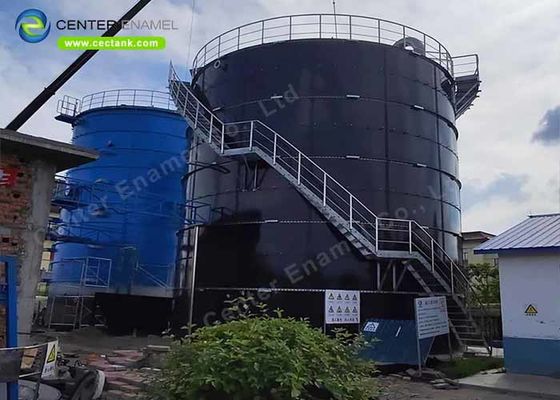

Bolted Steel Industrial Water Storage Tanks ForPotable Water Storage
Bolted steel industrial water tanks or combined water tanks are ideal solutions for storing large amounts of water, and are also suitable for applications with restricted access. These tanks are manufactured in a factory and assembled on site.
Center Enamel is a good supplier of bolted steel industrial water tanks in the storage tanks industry, with a track record of excellent quality certification in completed projects. We have more than 30 years of production experience to meet the needs of each project. Our large bolted steel tanks have a capacity of up to 25000 m3 and have been installed all over the world. Please refer to our case study examples to learn about some of the projects we have already undertaken.
Bolted steel drinking water tanks mainly consist of glass fused to steel plates. After firing at 820°C-930°C high temperature, the molten glass reacts with the steel plate surface to form an inert and inorganic bond. Combing the strength and flexibility of steel and the corrosion resistance of glass, the glass fused to steel plates can resist PH range from 1 to 14, which allows glass fused to steel plates used for various storage applications .
Bolted Steel Industrial Water Storage Tanks Specifications
| Coating color | dark blue, dark green , white, and customized |
| A standard steel plate size | effective size 2400mm x 1200 m |
| Steel plates thickness | 3mm - 12mm , depends on the diameter & height |
| Coating thickness | 0.25mm - 0.4mm, two coating internal and external |
| Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
| Adhesion | 3,450N/cm |
| Elastic | same as steel sheet , around 500KN/mm |
| Hardness | 6.0 Mohs |
| Service life | >30 years |
| Spark test | >1500 V |
| Permeability | gas and liquid impermeable |
| Easy yo clean | smooth, glossy, inert, anti-adhesion |
| Corrosion resistance |
excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds
|
Bolted Steel Drinking Water Tank Advantages
Features and benefits
✓ Designed to AWWA D103-09 and EN/ISO28765:2011 standards
✓ Provides high levels of accuracy
✓ Improved resistance to bacterial growth.
✓ UV stabilized materials
✓ Heavy-duty cover
✓ Low maintenance, resists wind and snow loadings.
Bolted Steel Industrial Water Storage Tanks Manufacturer
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel bolted tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel bolted tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel bolted tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition. Contact our sales team with any questions you may have, we will be happy to quote your project and give our expert advice on the type of tank that best suits your requirements.
