Chemical Corrosion 0.4mm Glass Lined Steel Holding Tank
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W20161227006 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 0-60 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W20161227006 |
| Applications: | Water , Waste Water, Digester , Reactor , Grain , Sludge , Chemicals | Acid And Alkalinity Proof: | PH1 - PH14 |
| Usage: | Waste Water Treatment , Sewage Treatment, Effluent Treatment, Ect. | Defect Free: | Minimum Maintenance Needed |
| Installation: | By Jacking Machine Or Steel Pole, Fast In Installation | High Light: | Glass Lined Steel Holding Tank,0.4mm Steel Holding Tank,OSHA Biogas Storage Tank |
Product Description

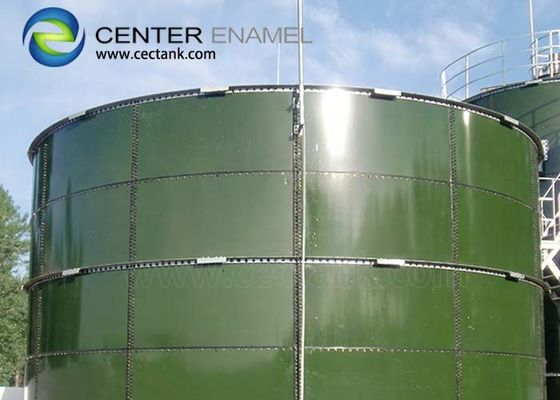

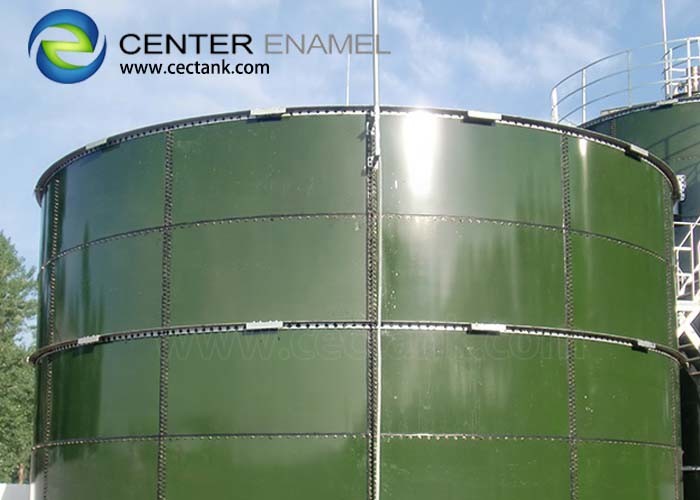

High Resistance to Chemical Corrosion Glass Lined Steel Holding Tank
Since 1989, Center Enamel has been supplying and installing glass lined steel tanks up to 25,000 m3 capacity. Our glass lined steel tanks– which meet quality standard ISO EN 28765:2011 – provide the best possible combination of the strength and flexibility of steel and the inertness of glass.
Elaboration of our enamelled steels
Enamelled steel, also known as glass-lined steel or glass-fused-to-steel, is the result of coating the steel with glass in fusion at high temperature ( 820°C-930°C ). The enamelling of steel for the construction of tanks, is a process requiring considerable know-how and involving many inspection stages in order to guarantee “zero defect” quality reliably and continuously. Glass Lined Steel Holding Tanks are a long-term temporary solution for sewage disposal. The tank retains waste until the tank is emptied. Our Glass Lined Steel Septic Holding Tanks are made of Glass Lined Steel which combines the strength and flexibility of steel and the corrosion resistance of glass.so Glass Lined Steel tanks can provide many advantages over standard epoxy or welded painted storage tanks. Glass Lined Steel technology is the premium coating technology in the storage tanks market.
Glass Lined Steel Holding Tank is bolted type . Factory fabricated steel panels are bolted together by high grade bolts and sealed by silicone sealant . The glass fused steel tank is gas and liquid impermeable . When make the installation , it is usually assembled from top to bottom , which the top rings is firstly connected and then next ring .... till the bottom ring . Lifting system like jacks or steel poles are used to lift the tanks which give access to workers to assembly the next rings .
Glass Lined Steel Holding Tank Specifications
| Coating color | dark blue, dark green , white, and customized |
| A standard steel plate size | effective size 2400mm x 1200 m |
| Steel plates thickness | 3mm - 12mm , depends on the diameter & height |
| Coating thickness | 0.25mm - 0.4mm, two coating internal and external |
| Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
| Adhesion | 3,450N/cm |
| Elastic | same as steel sheet , around 500KN/mm |
| Hardness | 6.0 Mohs |
| Service life | >30 years |
| Spark test | >1500 V |
| Permeability | gas and liquid impermeable |
| Easy yo clean | smooth, glossy, inert, anti-adhesion |
| Corrosion resistance |
excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds
|
About Center Enamel
Center Enamel Co., Ltd is not only the first Glass Lined Steel Tanks manufacturer and supplier in China, but also the most experienced Glass Lined Steel tanks manufacturer in all of Asia. Center Enamel Glass Lined Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass Lined Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass Lined Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
