Glass Fused To Steel Potable Tanks For Agriculture Water Storage
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden |
| Delivery Time: | 10-30 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W |
| Coating Thickness: | 0.25mm~0.40mm , Two Layer Of Coating Internal And External | Adhesion: | 3,450N/cm |
| Service Life: | ≥30 Years | Steel Grade: | ART 310 |
| Roof Available: | Glass Fused Steel Roof , Membrane Roof, Aluminum Roof , GRP Roof | Size Of Panel: | 2.4M * 1.2M |
| Acid And Alkalinity Proof: | Standard Coating Suits For PH3 - PH11, Special Coating Suits For PH1 - PH14 | Applications: | Water , Waste Water, Digester , Reactor , Grain , Sludge , Chemicals |
| Capactiy Available: | 20 M3 To 20,000 M3 | Feature: | Eco-friendly, Durability |
| Easy To Clean: | Smooth, Glossy, Inert, Anti-adhesion | Steel Plates Thickness: | 3mm - 12mm , Depends On The Diameter & Height |
| Installation: | By Jacking Machine Or Steel Pole, Fast In Installation | Corrosion Integrity: | Excellent |
| Impact Resistance: | Excellent | High Light: | Fused To Steel Potable Tanks,20m3 Steel Potable Tanks,anti adhesion Liquid Storage Tanks |
Product Description

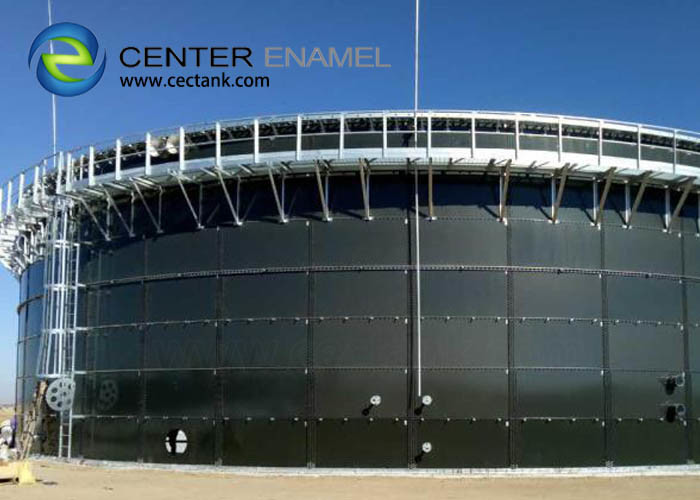

Glass Fused to Steel Potable Water Storage Tanks For Agriculture Water Storage
The glass fused to steel potable water storage tank consists of glass fused steel, special sealant, self-locking bolts and other accessories. Among them, the enamel piece is the most important part. Enamel plates are fused together in glass and steel to achieve the best of both worlds: steel strength and flexibility combined with superior corrosion resistant glass.
Our glass fused to steel potable water storage tank s are ideal for irrigation, fire water, urban drinking water storage, commercial rainwater collection, rainwater storage, and treatment water storage for the industrial, mining, and agricultural sectors.
Our advantage is in the manufacture of glass fused to steel potable water storage tank
* Engaged in the enamel industry for nearly 30 years, processing enamel frit formula patents more than 200.
* Passed ISO9001-2008 quality system certification, conforming to the Manufacturing standards of Q/01ZT012009 and NSF61(for drinking water storage) for glass fused steel tanks
* We designed the structure according to AWWA D103-09 and OSHA, En28765 and Australian
series standards.
glass fused to steel potable water storage tank Specifications
| Coating color | dark blue, dark green, white, and customized |
| A standard steel plate size | effective size 2400mm x 1200 m |
| Steel plates thickness | 3mm - 12mm, depends on the diameter & height |
| Coating thickness | 0.25mm - 0.4mm, two coatings internal and external |
| Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
| Adhesion | 3,450N/cm |
| Elastic | same as steel sheet, around 500KN/mm |
| Hardness | 6.0 Mohs |
| Service life | >30 years |
| Spark test | >1500 V |
| Permeability | gas and liquid impermeable |
| Easy yo clean | smooth, glossy, inert, anti-adhesion |
| Corrosion resistance | excellent! Suitable for wastewater saltwater, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds |
glass fused to steel potable water storage tank Manufacturer
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
glass fused to steel potable water storage tank Projects
