ART 310 Steel Biogas Storage Tank With Double PVC Membrane Gas Holder Cover

Product Details
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W20160831004
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 0-60 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Detail Information

Place of Origin China Brand Name CEC TANKS
Certification ISO 9001:2008, AWWA D103 , OSHA , BSCI Model Number W20160831004
Design Life: 50years Capacity: 20 M3 To 18,000 M3
Coating Thickness: 0.25mm~0.40mm , Two Layer Of Coating Internal And External Steel Grade: ART 310
High Light:

biogas septic tank


biogas anaerobic digestion

Product Description

Biogas Storage Tank with Double PVC Membrane Gas Holder Cover



Biogas storage tank with double PVC membrane holder cover is suitable for a wide range of working gas pressures, storage volumes and gas production rates and can accommodate the requirements of any sewerage, wastewater treatment, industrial effluent and biogas plant.


The out membrane is used to protect and keep the structure of the biogas holder, and the inner membrane is used to gather and store biogas. The air pressure of the out and inner membrane is adjusted and kept by an air blower. So biogas in the inner membrane is sent to the gas pipelines. This system has been long-time tested, at least be functional for 15 years



Biogas contains C2H2, H2S, carbon dioxide , H2O ect . H2S could be very corrosive . The top ring which is gas and liquid mixing area is the mostly easily to be corrode . So we use glass coated steel material tank . This is the combination of both material to achieve the best of both : superior corrosion resistant of glass , combined with flexibility and strength of steel . Glass coating FUSED together in high temperature furnace not just sprayed on it. Glass coated bond with steel plates to become one material .

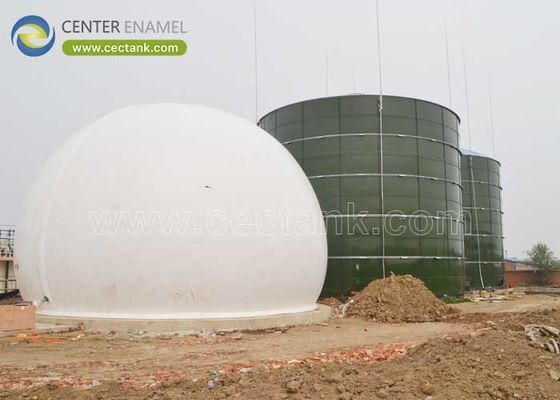

ART 310 Steel Biogas Storage Tank With Double PVC Membrane Gas Holder Cover 0


Look at the characteristics of glass coated steel plate


Coating color dark blue, dark green , white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm , depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coating internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet , around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance

excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds




Application of Glass coated steel biogas storage tank with membrane roof


Such a tank is generally used in waste water treatment and biogas plant projects . To name a few , they are CSTR , USR , SBR , UASB , EGSB , ect. Any kinds of digester and reactor could be made from glass coated steel biogas storage tank .

We have been installed thousands of tank , among half of them are used in waste water -biogas treatment projects . The well designed system has many irreplaceable advantages than the traditional biogas storage tank, and it also can be regarded as a tendency. Many customers who have ever used this system,they all feel greatest satisfied.


ART 310 Steel Biogas Storage Tank With Double PVC Membrane Gas Holder Cover 1


Areas have been installed with our tanks


The United States , Germany , Australia , New Zealand , Russia , Colombia , Ecuador , Costa Rica , Panama , El Salvador , Saudi Arabia , Qatar , Niger , Rwanda, Guinea , Malaysia , Indonesia , Singapore , Philippines , Thailand , Bangladesh , Kazakhstan , Maldives , ect.
