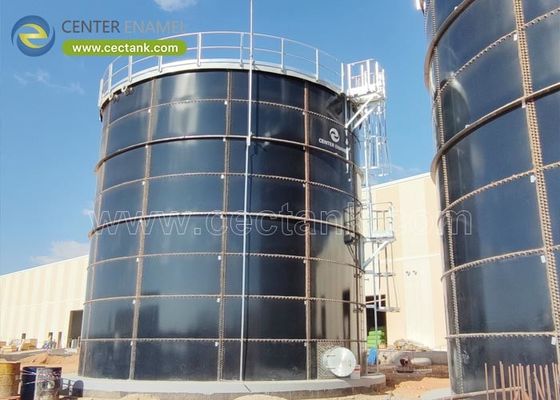

Dark green leachate storage tanks with porcelain enamel coating process

Large Capacity 20m3 to 18000m3 Leachate Storage Tanks With Low Project Budget

Product Summary

From landfill to landfill, the variability of the composition of leachate brings great difficulty of leachate storage and containment.This highly corrosive liquid needs to be properly managed and store, to prevent the leachate contaminated water from seeping into the ground water prior to treatment.

There are only few tanks that have abilities to store landfill leachate, which with the variability in composition. When a project comes with leachate storage tanks, the landfill operator’s first option is Center Enamel’s glass fused to steel leachate storage tanks.

Parts and Accessories of GFS Leachate Storage Tanks

Center Enamel’s glass fused to steel tanks are manufactured and designed as per AWWA D103 - 09 standard, OHSA, and can meet European and Australia design standard.

1. Glass fused to steel sheets

2. Special Sealant

3. Self-locking bolts

4. Manholes

5. Ladder and Platform

6. Roofs and Covers

7. Walkways

Quality Control of GFS Leachate Storage Tanks

1. Raw materials testing in the factory: ingredient analysis, impurities test.

2. Recipe finalized small samples test : enamel fluidity test, chromatic difference analysis, enamel burning experiment, acid and alkali resistance testing, glossy, adhesion etc,

3. Middle stage products test: amplification experiment simulated  environment；

4. Destructive testing, detection, impact test, 1500 V holiday test, sliced electric microscope analysis.

Acid Resistance Test of GFS Leachate Storage Tanks

1. 10% citric acid solution

2. Place on the overlapping of three filter paper 3cmx3cm, use a dropper to drop the 10% citric acid solution,

3. After 15 minutes at room temperature 20 - 25℃, remove the filter paper and rinse with water.

4. Check the enamel surface

Impact Test of GFS Leachate Storage Tanks

1. Test the adhesive ability of glassed lined sheet

2. Put the enameled steel on the base of hydropress, close decompression valve

3. Make hydropress pressing up to 15MPa

Manufacturing Steps of GFS Leachate Storage Tanks

All GFS leachate storage tanks are manufactured in Center Enamel’s ISO certificated factory based in Shijiazhuang City, and confirming to AWWA D103 - 09 design standard.

1. Laser Cutting: Center Enamel adopts most advanced 3500W laser cutting machine to meet the best cutting performance

2. Enameling: Center Enamel is the only one using automatic enamel machine in China

3. Firing: The temperature of firing oven is 850 degrees Celsius

4. Test: Center Enamel tests every sheet with 1500V holidays test and other tests

5. Packing: All the glass fused to steel sheets are packed in wooden boxes

Advantages of GFS Leachate Storage Tanks
