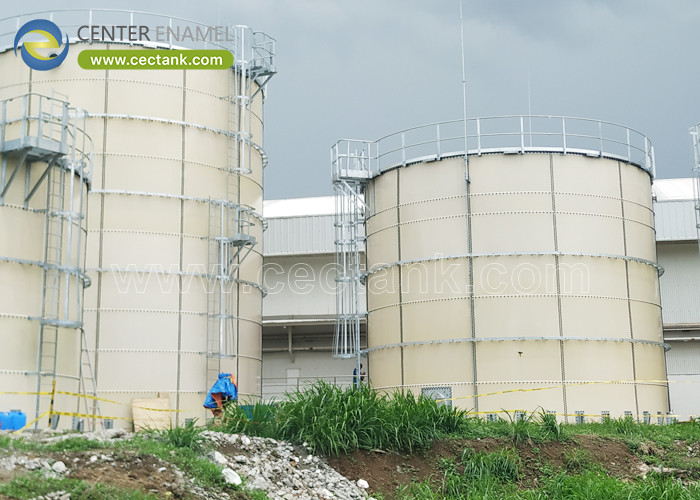

Glass coated steel sludge storage tank for industrial wastewater treatment

Glass coated steel sludge storage tank for industrial wastewater treatment
Glass coated steel sludge storage tank for industrial wastewater treatment Glass coated steel sludge storage tank for industrial wastewater treatment

Large Image :  Glass coated steel sludge storage tank for industrial wastewater treatment

Product Details:
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: J2016012613
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 0-60 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Detailed Product Description
Applications: Water , Waste Water, Digester , Reactor , Grain , Sludge , Chemicals Standard: AWWA D 103 , OSHA
Warranty Period: 2 Years Free Of Charge Capacity: Customized, 20 M3 To 18,000 M3
Lifespan: Over 30 Years Coating Thickness: 0.25mm~0.40mm ,double Coating
Coating Color: Customized
High Light:

sludge holding tanks

,

sewage storage tank

Glass coated steel sludge holding tank for industrial wastewater treatment





Glass coated steel tank is also named as glass fused steel tank , glass lined steel tank, GFS tank , GLS tank , GCS tank , enamel steel tank , enamel coated steel, assembled enameled steel tank , ect.  All these names actually mean the same thing.


Glass-Fused-to-Steel is a unique tank finish. Two materials are fused together to achieve the best properties of both – the strength and flexibility of steel combined with the corrosion resistance of glass. The enamel is applied to both interior and exterior surfaces, makes the steel have beautiful appearance, delicate texture, and strong abrasion / corrosion resistance.







Glass coated steel tank specifications





  • Hardness : 6.0 Mohs
  • Adhesion : 3,450N/cm
  • Coating color : standard dark green and dark blue, color can be customized
  • Coating thickness : 0.25mm - 0.4mm, two coating internal and external
  • Acid and alkalinity proof : PH 1 - PH 14
  • Elastic : same as steel sheet , around 500KN/mm
  • Service life : over 30 years
  • Spark test :  over 1500 V
  • Permeability: gas and liquid impermeable
  • Easy yo clean : smooth, glossy, inert, anti-adhesion
  • Corrosion resistance : excellent !



Why choose glass coated steel holding tank ?



Suitable for various kind of fields: Not only industrial effluent /Waste water, sewage treatment, it also can be sued in power and energy, agriculture storage tanks, bio gas digester.



 Large capacity: wide range of capacity of selection up to 18,000 m3.



 Good chemical and physical performance: To improve the steel quality performance after enameling, we developed special steel ART310 with Angang Steel Group in 2005. The Ti-rich steel not only increase the  adhesive power between steel and enamel coating, but also significantly solve fish scaling problem. More over, the color the tanks could be customized upon your request.



Easy installed, expanded, dismantle, removed: The modular system allows not only fast rapid installation, expand, or removed not subject to any weather, but also easily repaired and clean.



 conservation and environmental.



 Low project cost: as short construction, installed, the cost is much lower then other traditional tanks.





Our GFS tanks already passed ISO9001-2000 quality system certification,  and product and design can reach AWWA D103-09 standard, OSHA and meet European standards. We are the only enterprise that can produce AA grade (acid-proof and alkali- proof ) enameled sheet now





Glass coated steel sewage treatment tanks serve in many types of applications, but not limited to :

  • MBBR
  • Biologic Treatment
  • Anaerobic Digestion
  • Flocculation
  • Sedimentation
  • Equalization
  • Aeration Basin
  • Aerobic Digestion
  • ATAD Tanks
  • SBR’s
  • Sludge
  • Dewatering



Center Enamel Co Ltd provides and installs glass coated steel tanks suitable for all stages of sewage sludge treatment plants, , including sedimentation tanks , mixing tanks, flocculation tanks, and others. Our factory fabricated enamel coated steel tank provides the best long term corrosion protection .
