Enamelled Pressed Glass Fused Steel Tanks For Fire Protection System

Enamelled Pressed Glass Fused Steel Tanks For Fire Protection System
Enamelled Pressed Glass Fused Steel Tanks For Fire Protection System Enamelled Pressed Glass Fused Steel Tanks For Fire Protection System

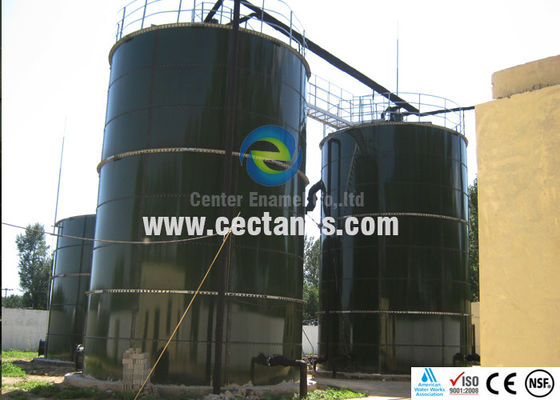

Large Image :  Enamelled Pressed Glass Fused Steel Tanks For Fire Protection System

Product Details:
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: J2016012311
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 0-60 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Detailed Product Description
PH Range: A Grade Sheet PH:3-11, AA Grade Sheet PH : 1-14 Coating Thickness: 0.25mm - 0.4mm, Two Coating Internal And External
Corrosion Resistance: Excellent ! Suitable For Waste Water Salt Water, Sea Water, High Sulfur Crude Oil, Salt Fox, Organic And Inorganic Compounds Adhesion: 3,450N/cm
Permeability: Gas And Liquid Impermeable Acid And Alkalinity Proof: Standard Coating Suits For PH3 - PH11, Special Coating Suits For PH1 - PH14
Elastic: Same As Steel Sheet , Around 500KN/mm Serive Life: More Than 30 Years
High Light:

glass fused to steel water tanks

,

above ground fuel storage tanks

Assembled Enamelled Pressed Steel Tank For Fire Protection System



Enameled pressed steel tanks for fire protection water are in high demand as a result of increased regulations and insurance industry requirements. A properly sized enameled pressed steel tank will make a valuable contribution during firefighting emergencies, especially when firefighting demands more water than the building's domestic water feed line can supply or during intervals of troubling regional water shortages.





Features of enameled pressed steel fire protection tank





Corrosion-resistance - Avoid obvious corrosion concerns associated with long-term storage of water by using a tank made from enamel pressed steel which is immune to rust.



Fast in installation - enameled pressed steel tank is assembled by jacks or steel poles . No cranes or big installation equipment is needed for construction . It is fast in installation and saves time in construction .

Shop-Fabricated, Watertight Design – Our assembled enameled pressed steel tanks are pre-fabricated at workshop . Openings and nozzles are perfectly matched with each other . No job site cutting or spraying is needed .



Custom-Design Flexibility – Assembled enameled pressed steel tank can be designed for future expansion ; diameter and height is customized according to location limitation ; customer can choose with accessories like ladder, platform, manhole , hatch, or without any of them .





 Characteristics of enameled pressed steel tank

  • Adhesion : 3,450N/cm
  • Size available : from 20 m3 to 18,000 m3 , customized
  • Elastic : same as steel sheet , around 500KN/mm
  • Hardness : 6.0 Mohs
  • Service life : >30 years
  • Spark test : >1500 V
  • Permeability: gas and liquid impermeable
  • Easy yo clean : smooth, glossy, inert, anti-adhesion
  • Coating thickness : 0.25mm - 0.4mm, two coating internal and external
  • Coating color : dark blue, dark green , white, and customized
  • A standard steel plate size : effective size 2400mm x 1200 m
  • Steel plates thickness : 3mm - 12mm , depends on the diameter & height
  • Acid and alkalinity proof : A grade PH3 - PH11,  AA grade PH1 - PH14
  • Corrosion resistance : excellent !





Cover options





We have five kinds of roof in option. They are enameled pressed steel roof , membrane dome roof , glass reinforced polyester roof , aluminum sloped deck roof and aluminum dome roof . Aluminum doom roof and glass fiber reinforced polyester roof are highly recommended for fire protection water storage tank as they are efficient as a cover to keep away from dust and most economical .





Applications



Substrate treatment

Residual waste storage

Energy storage system

Bulk material storage

Rain reservoir

Water tank

Buffer tank

Waste water tank

Sludge holding tank

Aeration basin

Tricking filter plant

Secondary settling tank

Mixing and surge tank

fermenter

Landfill leachate storage

Process vessel

Fire protection system

Grain silo

Agriculture irrigation system

Anaerobic digester
