Anaerobic Biogas Digester , Biogas Storage Tank With Three Phase Separator

Anaerobic Biogas Digester , Biogas Storage Tank With Three Phase Separator

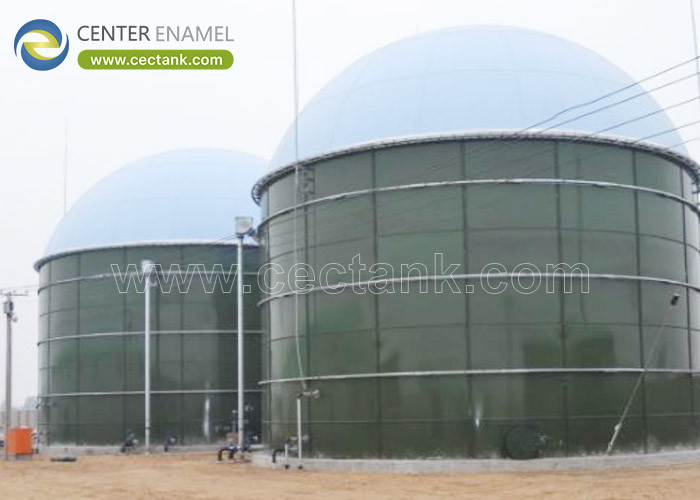

Anaerobic Biogas Digester , Biogas Storage Tank With Three Phase Separator Anaerobic Biogas Digester , Biogas Storage Tank With Three Phase Separator

Large Image :  Anaerobic Biogas Digester , Biogas Storage Tank With Three Phase Separator

Product Details:
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: J2016012105
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 0-60 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Detailed Product Description
Service Life: >30 Years Spark Test: 1500 V
A Standard Steel Plate Size: Effective Size 2400mm X 1200 M Elastic: Same As Steel Sheet , Around 500KN/mm
Corrosion Resistance: Excellent ! Suitable For Waste Water Salt Water, Sea Water, High Sulfur Crude Oil, Salt Fox, Organic And Inorganic Compounds Coating Color: Dark Blue, Dark Green , White, And Customized
High Light:

anaerobic manure digester

,

anaerobic digestion tanks

Enamel Bolted Anaerobic Digester (AD) Tank , With Three Phase Separator

Anaerobic Biogas Digester , Biogas Storage Tank With Three Phase Separator 0



What is Three - Phase - Separator ?



During the anaerobic digestion process , gas – solid - liquid separation is one of the most important parts

of the UASB treatment plant . The separator occupied 16 % – 25% of the reactor volume and any blockage in gas separator compartment can cause failure in solid separation . The three separator at the top of the reactor to separate the gas , the liquid and solid . After the anaerobic reaction , 80% - 90%  of organic waste was decomposed .





Application of AD tank





* Industrial



Glass fused to steel anaerobic digerster tank is used in industry,especially in the food process industry , which can be used as the raw material for anaerobic digester tank . Food process waste  is an excellent feedstock than any other raw materials to generate the biogas , it can be the max is more than 15 times

of cattle waste . During the digestion , food waste can mix with the fertilizer so that it can improve the generation of methane . Most of the digester reaction is basic on the ratio between solid and liquid .





* Agricultrue



Anaerobic digester is widely used in agriculture , animal and crop waste are the mainly raw material of the anaerobic digester in agriculture , and they are also easy to get it . Anarobic digester benefit a lot in the agriculture , firstly the generation of biogas , which can as a source of fuel and also can convert to electricity ; secondly digester material can as fertilizer .





* Wastewater treatment plant



Nowadays , the wastewater pollution is serious . Glass fused to steel tank as the anaerobic digester , the function of it is excellent . Wastewater treatment facilities employ anaerobic digester to break down sewage sludge and eliminate pathogens in wastewater . Biogas generator is required during the reaction process , as usual biogas will be use to covert electricity to heat nearby facilities.





Our technology advantages



* Being engaged in enamel industry for over 26 years , we process more than 200 patents of enamel frit formulas , until now we install more than 2000 tanks all over the world .



* Complied with quality system certificate ISO9001-2008 , glass – fused – to - steel tank manufacturing standard Q/01ZT012009 and NSF ( National Sanitation Foundation ) .



We design GFS tank according to AWWA D103-09 and OSHA standard .



Quality Control



Anaerobic Biogas Digester , Biogas Storage Tank With Three Phase Separator 1



Anaerobic Biogas Digester , Biogas Storage Tank With Three Phase Separator 2



Glass fused steel tank specifications



Coating color

dark blue, dark green , white, and customized

A standard steel plate size

effective size 2400mm x 1200 m

Steel plates thickness

3mm - 12mm , depends on the diameter & height

Coating thickness

0.25mm - 0.4mm, two coating internal and external

Acid and alkalinity proof

standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14

Adhesion

3,450N/cm

Elastic

same as steel sheet , around 500KN/mm

Hardness

6.0 Mohs

Service life

>30 years

Spark test

>1500 V

Permeability

gas and liquid impermeable

Easy yo clean

smooth, glossy, inert, anti-adhesion

Corrosion resistance

excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil,

 salt fox, organic and inorganic compounds





Manufacturing machine



Anaerobic Biogas Digester , Biogas Storage Tank With Three Phase Separator 3Anaerobic Biogas Digester , Biogas Storage Tank With Three Phase Separator 4
