Enamel Coated Glass Lined Steel Tanks With Double Coating Internal And External

small.img.alt small.img.alt

Large Image :  Enamel Coated Glass Lined Steel Tanks With Double Coating Internal And External

Product Details:
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: J2016012101
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 0-60 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Detailed Product Description
Coating Color: Dark Blue, Dark Green , White, And Customized Adhesion: 3,450N/cm
Elastic: Same As Steel Sheet , Around 500KN/mm Coating Thickness: 0.25mm - 0.4mm, Two Coating Internal And External
Acid And Alkalinity Proof: Standard Coating Suits For PH3 - PH11, Special Coating Suits For PH1 - PH14 Spark Test: >1500 V
Permeability: Gas And Liquid Impermeable Easy Yo Clean: Smooth, Glossy, Inert, Anti-adhesion
High Light:

glass fused to steel water tanks


enamel tank

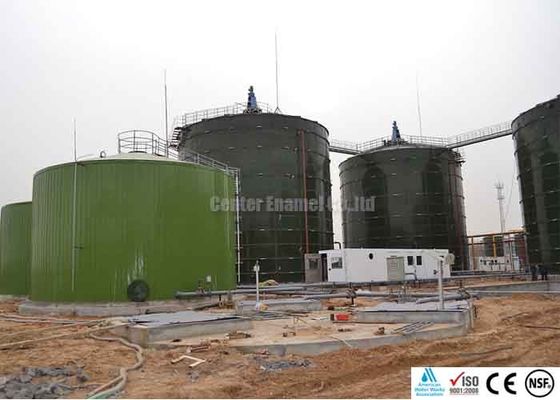

30 Years Service Life Glass Lined Steel Tank With Double Coating Internal And External
Glass Lined Steel Tanks are used in applications where bare metal or painted coating is not recommended.  It is named in different way, depending on the region where they are installed . “ Glass - fused - to - steel tank “ , “GFS tank “ , “ glass lined steel tank “ , “ GLS tank “, “ glass coated steel tank “ , “ enamel coated steel tank “ , “ assembled enameled steel tank “ ect.  All these names all mean the same thing , that the tank panels are fused internal and external with  enamel frit that binds to the Ti-rich steel plates .  The combination of “ glass “ and “ steel “ provides many advantages over standard epoxy coated steel tank or welded steel painted tanks or concrete tank .
Competitive advantages
1. factory fabrication tank . No painting or spray on erection site . The process of glass coating is finished in factory, so there is no spray works to be done on job site . Glass fused steel tank is a kind of factory pre-fabricated tank
2. minimal maintenance cost : once it is erected, there is minimal maintenance requirement needed.
3. superior performance in corrosion resistance and against rust : glass fused steel tank is combination of glass and steel . Glass is coated to steel and become a protection layer to the tank body
4. can be designed to future expansion, dismantle or re-movement. If it is specified before the tank manufacturing that a future expansion is needed, engineer will make the structure suitable for future enlarged capacity. It can be realized by simply adding another rings
5. free service for technical drawings . Once a order deal, all drawings, pictures, technical
6. No need crane or other large equipment during erection. Since glass fused steel tank is bolted type tank . So no need for crane to hang the tanks and located it. Workers just assemble steel  plates and bolted them piece by piece
7. not subjected to severe weather and environment. Glass fused steel tank is not subjected to environmental and weather. It can be erected at remote places like desert and extremely cold places.
8. turn key service from proposal to tank commissioning . Our team provides proposals according to customer’s tender file or FRQ , shipment of material, tank erection , water proof treatment and commissioning.
Water supply and water treatment
Waste water treatment
Sewage and effluent treatment
Power and energy
Industrial bulk storage
Agriculture irrigation system
Fire protection system

Coating color

dark blue, dark green , white, and customized




same as steel sheet , around 500KN/mm

Coating thickness

0.25mm - 0.4mm, two coating internal and external

Acid and alkalinity proof

standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14

A standard steel plate size

effective size 2400mm x 1200 m

Steel plates thickness

3mm - 12mm , depends on the diameter & height


6.0 Mohs

Service life

>30 years

Spark test

>1500 V


gas and liquid impermeable

Easy yo clean

smooth, glossy, inert, anti-adhesion

Corrosion resistance

excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil,
 salt fox, organic and inorganic compounds

Quality Control
Enamel Coated Glass Lined Steel Tanks With Double Coating Internal And External 0Enamel Coated Glass Lined Steel Tanks With Double Coating Internal And External 1
Manfacturing machine
Enamel Coated Glass Lined Steel Tanks With Double Coating Internal And External 2Enamel Coated Glass Lined Steel Tanks With Double Coating Internal And External 3
