Advanced Anaerobic Solutions for Municipal Sludge Treatment with GFS Tanks in Vietnam

This article focuses on the application of biogas technology in Vietnam's municipal wastewater sector. It details the origin of the sludge, the step-by-step conversion process, and the critical role of the CSTR Process. It further examines the importance of GFS Tanks and Double Membrane Roofs, outlines diverse tank and roof options, and lists essential auxiliary equipment. Finally, it highlights the value of partnering with a full-service provider like Center Enamel to achieve sustainable waste-to-energy goals through expert Anaerobic Solutions.

Vietnam is experiencing rapid urbanization and industrial growth, leading to a significant increase in municipal wastewater generation. The treatment of this wastewater produces large quantities of sewage sludge, a complex organic by-product that poses environmental challenges if not managed properly. As Vietnam commits to sustainable development and renewable energy targets, converting municipal sludge to biogas presents a promising solution. This article outlines how experienced Anaerobic Solutions leverage the CSTR Process to turn municipal sludge into biogas, supported by advanced storage solutions like GFS Tanks.

In Vietnam, municipal sludge originates from the treatment of domestic and industrial wastewater at centralized sewage treatment plants. The wastewater undergoes primary and secondary treatment to remove contaminants, resulting in the separation of solid organic matter. This material, known as raw primary and secondary sludge, is a complex mixture of water, organic compounds, nutrients, and trace elements. In Vietnam, the high population density in cities such as Ho Chi Minh City and Hanoi results in substantial volumes of sludge being generated daily. Traditionally, this sludge has been incinerated or landfilled. However, the high organic content and moisture levels of municipal sludge make it an excellent feedstock for anaerobic digestion, presenting a significant opportunity for resource recovery and energy generation.

The conversion of municipal sludge into biogas is achieved through anaerobic digestion, a natural process where microorganisms decompose organic matter in the absence of oxygen. The process begins with the collection and thickening of the raw sludge to optimize the solids concentration for digestion. The sludge is then fed into a sealed anaerobic reactor. Inside the reactor, a series of biochemical reactions take place—hydrolysis, acidogenesis, acetogenesis, and methanogenesis—which convert the complex organic polymers into simpler molecules, ultimately producing biogas. The biogas is then collected, purified, and stored for use in generating electricity, heat, or as a vehicle fuel. The residual digestate is a valuable bio-fertilizer, rich in nitrogen, phosphorus, and potassium, which can be used to enhance agricultural productivity.

The CSTR Process (Continuous Stirred-Tank Reactor) is a cornerstone technology for treating municipal sludge. The CSTR Process is an anaerobic treatment technology that makes fermentation raw materials and microorganisms fully mixed and fermented in a closed tank to produce biogas. The CSTR reactor is equipped with a mechanical stirring device. By feeding continuously or semi-continuously at a constant rate, the organic wastewater with high suspended solids and high concentration and anaerobic microorganisms are in a relatively complete mixed fermentation state. This effectively degrades the organic matter in the wastewater. The continuous mixing ensures uniform temperature, pH, and nutrient distribution, which optimizes the environment for the anaerobic bacteria, leading to high biogas production rates and efficient waste stabilization.

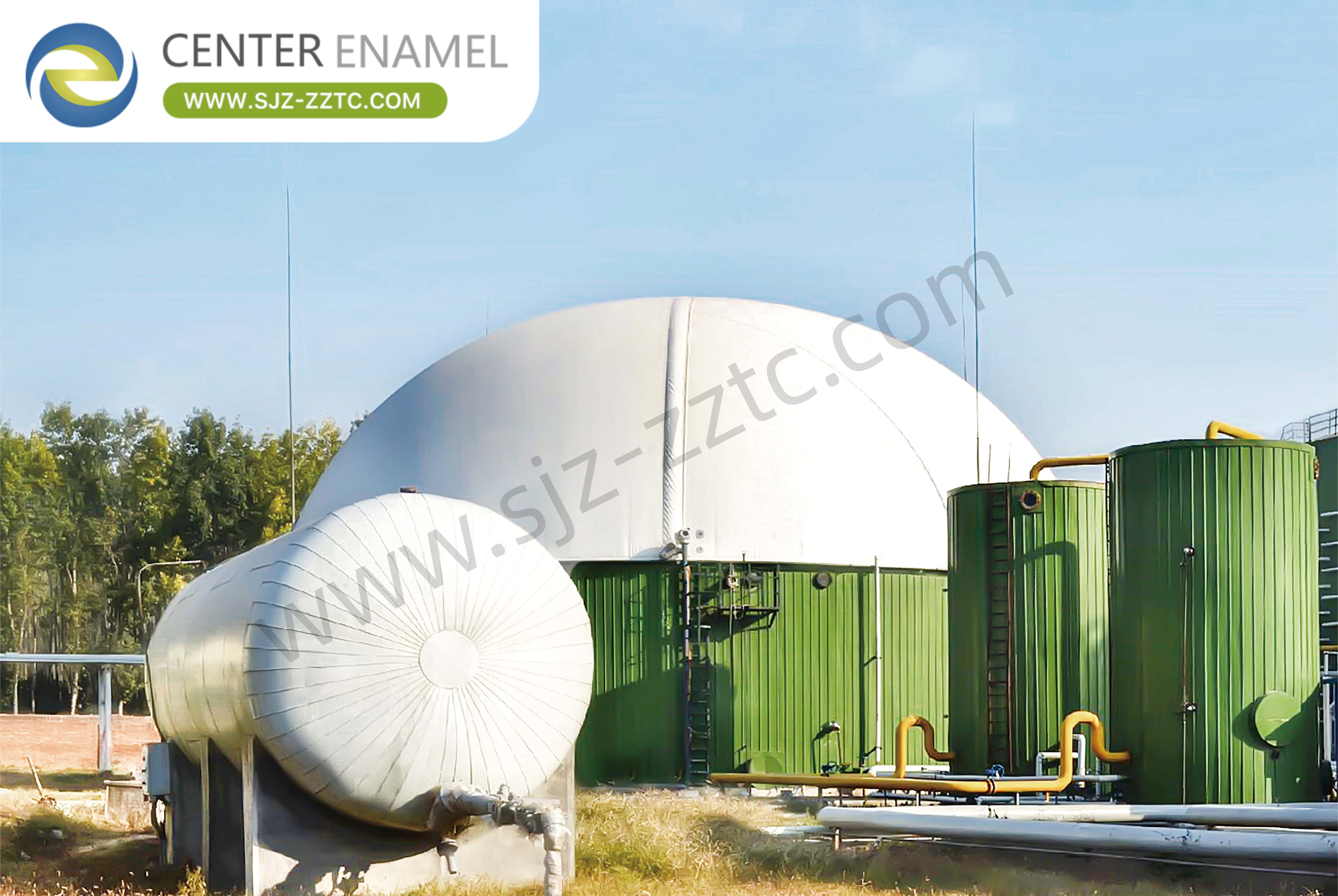

For a biogas project to be successful and durable, the choice of storage tanks and roofs is paramount. GFS Tanks, or Glass-Fused-to-Steel Tanks, are the ideal solution. After firing at 820°C-930°C, the molten glass reacts with the steel plate surface to form an inert and inorganic bond. This combines the strength and flexibility of steel with the outstanding corrosion resistance of glass, making GFS Tanks highly resistant to the corrosive elements found in municipal sludge. The Double Membrane Roof is the preferred solution for biogas storage under normal working conditions. Its main advantages include cost optimization, as it directly reduces the cost of the roof, and space efficiency, as it significantly reduces the floor area and saves the foundation construction cost required for the ground-mounted gas holder.

To meet the varied demands of biogas and water storage projects, a range of customizable roof and tank solutions are available.

Roof Solutions: Aluminum Geodesic Dome Roofs offer advanced corrosion resistance and expansive clear spans; Glass-Fused-to-Steel Roofs are air-tight and utilized for odor control; Single and Double Membrane Roofs are superior for biogas collection; Aluminum Alloy Trough Deck Roofs are an economical option for water storage; Stainless Steel Roofs provide super anti-corrosion performance for harsh environments; and FRP Roofs are suitable for situations where air-tightness is not required.

Tank Solutions: Galvanized Steel Tanks provide a tough, durable protective coating; Fusion Bonded Epoxy Tanks utilize innovative coating technology from partners like AkzoNobel for superior corrosion protection; and Stainless Steel Tanks (AISI 304/316) are designed to meet the most stringent requirements for high-purity water and liquids.

A fully functional biogas plant requires a range of auxiliary equipment to ensure operational efficiency and safety. Key equipment includes:

• Gas Holder: For storing biogas and balancing supply and demand.
• Black Membrane: Used for covering anaerobic lagoons and controlling odors.
• Solid-liquid Separator: To separate the digestate into solid and liquid fractions for easier handling.
• Torch System: For the safe combustion of excess or flare gas.
• Lifting Pump: For transferring high-solids slurry and wastewater.
• Dehydration and Desulfurization Tank: To remove water vapor and corrosive hydrogen sulfide (H2S) from the biogas.
• Screw Sludge Dewatering Machine: For efficient dewatering of the sludge produced during the process.

Center Enamel is a leading provider offering comprehensive solutions for municipal sludge-to-biogas projects. Their advantages as a one-stop solution provider include:

• EPC Service: Offering full Engineering, Procurement, and Construction services to ensure a seamless project lifecycle.
• Process Package: Providing optimized process design tailored to the specific characteristics of municipal sludge.
• Equipment Supply: Manufacturing and supplying high-quality GFS Tanks, roofs, and all necessary auxiliary equipment.
• Certifications: Adhering to the highest international standards with certifications including CE/EN1090, ISO9001, NSF61, WARS, EN28765, and design standards like AWWA D103, OSHA, and EuroCode.

For Vietnam's municipal wastewater sector, converting sludge to biogas is a strategic move towards sustainability and resource recovery. By employing the CSTR Process and utilizing durable infrastructure like GFS Tanks and Double Membrane Roofs, a dedicated provider can deliver a reliable and efficient biogas plant. This approach effectively mitigates environmental pollution, reduces reliance on fossil fuels, and produces valuable bio-fertilizer, creating a win-win scenario for the industry and the environment.
