Advanced GFS Tanks and UASB Process for Thailand's Fruit and Vegetable Waste Biogas Project

Advanced GFS Tanks and UASB Process for Thailand's Fruit and Vegetable Waste Biogas Project

Fruit and vegetable waste (FVW) is an inevitable byproduct of the global food supply chain, generated in massive quantities daily. Its primary sources include agricultural harvesting, wholesale markets, food processing facilities, commercial kitchens, and supermarkets. In centralized distribution hubs and commercial markets, large volumes of discarded produce, spoiled fruits, and structural plant residues are generated every day.

Because fruit and vegetable waste possesses a high moisture content and is rich in easily degradable organic matter, it rots rapidly if left untreated. This rapid decomposition leads to severe odor issues, pest attraction, and potential leachate contamination, making immediate and effective organic waste management a critical priority for modern environmental planning.

Challenges of Fruit and Vegetable Waste Treatment in Thailand

Thailand, a major global agricultural hub and food exporter, faces distinct environmental hurdles in managing its escalating municipal, commercial, and agro-industrial organic waste. Across its busy night markets, food processing plants, and major wholesale distribution centers, hundreds of tons of fruit and vegetable scraps are discarded daily. Historically, the country has relied heavily on open dumping or traditional landfills for municipal solid waste disposal.

However, fruit and vegetable waste contains an exceptionally high water content. When dumped without treatment, it severely complicates landfill operations by generating massive volumes of highly concentrated leachate that threatens local rivers and rich agricultural soils. Furthermore, Thailand's hot and humid tropical climate accelerates the putrefaction of fresh organic matter. This rapid decay creates intense odor control issues and public hygiene concerns around urban areas. As landfill capacities decline and the government actively targets more ambitious green policies, relying on traditional dumping is becoming entirely unsustainable, demanding advanced technological alternatives.

Transforming Fruit and Vegetable Waste into Biogas

The most sustainable pathway for processing fruit and vegetable waste is anaerobic digestion (AD), a biological process that converts organic burdens into valuable green energy. In a controlled anaerobic environment, specialized microorganisms break down the complex sugars, carbohydrates, and organic acids present in the fruit and vegetable matter.

This multi-stage biological breakdown—consisting of hydrolysis, acidogenesis, acetogenesis, and methanogenesis—finally generates renewable biogas, which is primarily composed of methane ($CH_4$) and carbon dioxide ($CO_2$). The captured biogas can be scrubbed and utilized to generate green electricity, heat, or upgraded into biomethane fuel. Simultaneously, the nutrient-rich digestate residue left behind after the digestion cycle can be processed into high-quality organic fertilizer, successfully closing the food-to-energy loop.

Benefits of Biogas Projects to Thailand

Implementing dedicated fruit and vegetable waste biogas projects offers multi-dimensional advantages aligned with Thailand's green economy and national sustainability goals:

Landfill Diversion: By diverting thousands of tons of heavy organic fractions from waste streams, biogas projects significantly extend the operational lifespan of existing landfill infrastructure and mitigate leachate hazards.

Reduction of Carbon Footprint: Anaerobic digestion systems capture potent methane emissions before they escape into the atmosphere during open-air decomposition, directly supporting national carbon reduction commitments.

Local Renewable Energy Generation: The clean electricity generated from recovered biogas supplements local power grids, enhancing energy independence for processing facilities and lowering dependence on fossil fuels.

Promotion of Circular Economy: Transforming agricultural market waste into nutrient-dense organic fertilizer directly supports Thailand's large farming community, displacing chemical fertilizers with local, eco-friendly inputs.

Specialized Anaerobic Technologies: CSTR, UASB, USR, and IC

Selecting the appropriate technical process depends heavily on the total suspended solids (TSS) and organic composition of the fruit and vegetable waste stream:

UASB (Upflow Anaerobic Sludge Blanket): The ideal solution for treating the highly concentrated liquid-phase wastewater generated during fruit washing, rinsing, and primary juice-extraction processing stages. It relies on a dense, high-activity granular sludge blanket to rapidly reduce extreme Chemical Oxygen Demand (COD) levels in space-efficient footprints.

CSTR (Continuous Stirred Tank Reactor): Well-suited for handling thick slurries or raw, chopped organic fractions with high solid contents. Its mechanical stirring prevents crusting and solid settling to optimize microbial contact.

USR (Upflow Solids Reactor): Engineered specifically for dense high-solid streams, maximizing solids retention times to break down complex organic fibers and residues.

IC (Internal Circulation) Reactor: An ultra-high-rate system featuring a small spatial footprint, perfect for high-volume liquid industrial waste treatment.

Advantages of GFS Tanks in Thailand's Biogas Projects

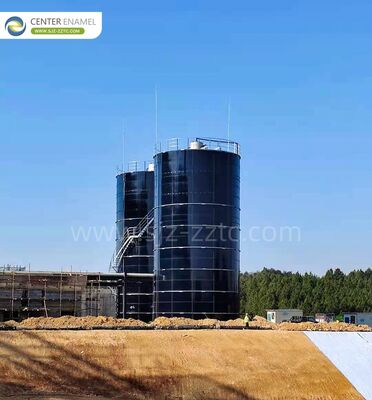

Center Enamel’s proprietary Glass-Fused-to-Steel (GFS) tanks serve as the premium containment solution for anaerobic digestion infrastructure:

Superior Corrosion Protection: The chemical fusion of glass and steel creates an inert coating that completely resists the aggressive organic acids and corrosive hydrogen sulfide ($H_2S$) gases generated during fruit and vegetable waste digestion.

Fast and Clean Installation: The modular, bolted construction allows these reactors to be assembled quickly on site, minimizing local labor requirements and construction timelines compared to concrete alternatives.

Exceptional Engineering Quality: Manufactured under strict, automated factory conditions, GFS tanks offer an operational lifespan exceeding 30 years with minimal long-term maintenance.

Tropical Climate Resilience: Engineered specifically to withstand harsh tropical environments, heavy seasonal monsoons, and high structural loads, ensuring reliable, long-term operational safety.

Why Partner with Center Enamel?

Center Enamel stands out as a premier global EPC contractor and storage tank manufacturer, bringing unparalleled expertise to organic waste-to-energy projects:

Turnkey EPC Capabilities: We deliver full lifecycle management, encompassing detailed waste analysis, customized process design, GFS tank manufacturing, automated control integration, and complete commissioning support.

Tailored Engineering Solutions: Every biogas setup is carefully optimized based on the specific moisture, fiber, and solid characteristics of the client's localized waste stream.

Unmatched Technical Expertise: Decades of global innovation across advanced anaerobic processes like UASB, CSTR, and IC ensure maximized methane yields and stable operation.

Global Quality Compliance: Our designs and tank manufacturing conform to strict international standards, guaranteeing successful alignment with municipal environmental guidelines.

Proven Global Success Stories

Center Enamel has a decorated track record of executing large-scale industrial wastewater and organic waste treatment projects worldwide:

Case1: Indonesia Biogas Project

Tank Application: Palm Oil Wastewater Treatment Plant

Tank Model: Ø19.86 × 8.4 m

Number of Tanks: 3 GFS Tanks

Installation: 7 personnel, 40 days

Installation Date: November 2009

Case2: Sweden Biogas Project

Tank Dimensions: φ19.11 × 19.2 m (H) — 1 Unit

Total Volume: 5,510 m³

Completion Date: 2024

Accelerating organic waste diversification requires innovative, robust engineering solutions. By deploying advanced anaerobic digestion technologies—such as the high-efficiency UASB process—housed within industry-leading Glass-Fused-to-Steel (GFS) tanks, Thailand can transform its fruit and vegetable waste from a localized liability into a reliable stream of clean, green energy. Partnering with an experienced EPC contractor like Center Enamel ensures that authorities and food processors achieve optimal operational stability, maximize resource recovery, and build a resilient foundation for a truly circular economy.
