Advanced GFS Tanks and EPC Solutions for Vietnam's Papermaking Wastewater Treatment

Vietnam has rapidly ascended as a pivotal hub for paper and pulp production in Southeast Asia, fueled by the global demand for packaging and high-quality paper products. As the industry scales, the Vietnamese government has tightened environmental regulations to protect the country's vital water resources and coastal ecosystems. For local manufacturers, implementing advanced papermaking wastewater treatment projects is no longer just an option but a critical regulatory necessity. Center Enamel, a premier global EPC contractor, delivers high-efficiency Anaerobic Solutions and proprietary GFS tanks to help Vietnamese paper mills achieve sustainable environmental performance.

Vietnam's Papermaking Landscape and Environmental Policy

The Vietnamese paper industry is characterized by a diverse mix of large-scale integrated mills and a significant number of small-to-medium enterprises (SMEs). To combat the heavy pollution historically associated with traditional pulping, the Vietnamese Ministry of Natural Resources and Environment (MONRE) has enforced stringent compliance standards. These regulations mandate significant reductions in water consumption and strict limits on the discharge of organic pollutants and toxic effluents.

For mills operating across Vietnam, meeting Chemical Oxygen Demand (COD) and Biological Oxygen Demand (BOD) limits is essential to avoid severe legal penalties. As the national industrial policy shifts toward "Green Growth" and "Zero Liquid Discharge" (ZLD) targets, the demand for specialized EPC services that can deliver robust, scalable, and automated treatment systems has reached an all-time high.

The Complexity of Papermaking Wastewater

Wastewater from paper production is significantly more complex and difficult to treat than standard municipal sewage. While municipal waste typically comes from domestic sources, papermaking effluent is defined by several challenging industrial factors:

High Organic Loading: The pulping process releases lignin, hemicellulose, and various organic acids, resulting in extremely high COD levels that require powerful anaerobic digestion.

High Suspended Solids (SS): Fine cellulose fibers, fillers, and coating agents frequently remain in the effluent, necessitating specialized reactor designs to prevent clogging and ensure consistent operation.

Toxic Chemical Components: Residual chemicals from bleaching and pulping can inhibit biological activity, making the stabilization of the treatment process a major technical hurdle.

Comprehensive Papermaking Wastewater Treatment Flow

To address these challenges, Center Enamel provides a scientifically structured treatment flow designed for maximum efficiency:

Pre-treatment: Utilizing physical screening and fiber recovery systems to remove suspended solids and stabilize the effluent pH before biological stages.

Anaerobic Core: The most vital stage, where high-rate reactors like IC or UASB digest the organic load and convert it into renewable biogas.

Aerobic Polishing: Secondary biological treatment to further reduce residual organic pollutants and remove nutrients to meet discharge standards.

Advanced Filtration: Using membranes or activated carbon to ensure the final water is suitable for internal mill reuse or safe environmental discharge.

Core Anaerobic Technologies: IC, UASB, CSTR, and USR

Center Enamel integrates diverse reactor technologies to optimize treatment for different paper mill profiles in Vietnam:

IC (Internal Circulation) Reactor: A next-generation high-rate reactor ideal for large-scale mills. Its internal circulation mechanism allows it to handle massive organic loads while providing exceptional stability against chemical fluctuations.

UASB (Upflow Anaerobic Sludge Blanket): A classic, energy-efficient solution that treats liquid-phase effluent by passing it through a dense blanket of anaerobic sludge.

CSTR (Continuous Stirred Tank Reactor): Best suited for wastewater with high suspended solids (SS), utilizing mechanical agitation to ensure complete digestion of organic matter.

USR (Upflow Solids Reactor): Specifically designed for high-solid streams, ensuring efficient biogas conversion from complex waste.

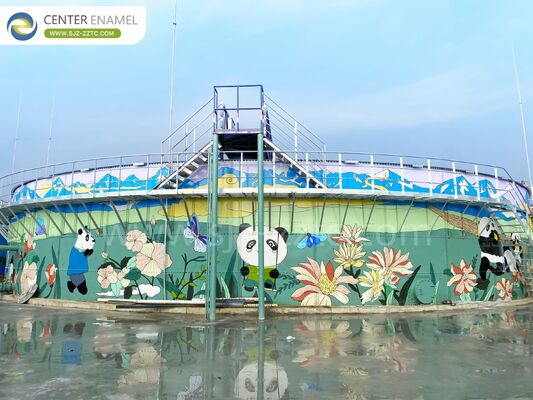

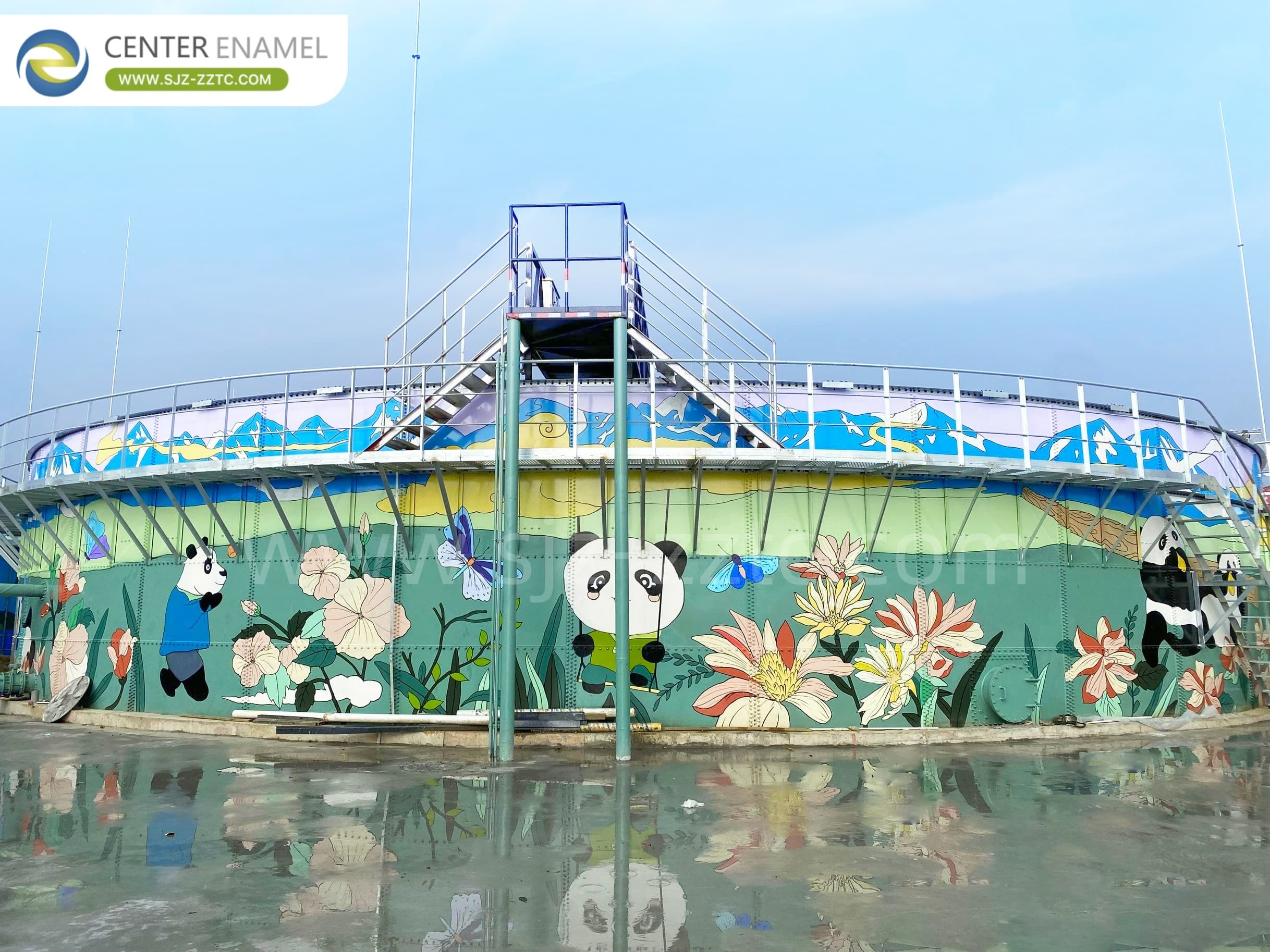

The Advantage of Glass-Fused-to-Steel (GFS) Tanks

Center Enamel’s EPC solutions utilize proprietary Glass-Fused-to-Steel (GFS) tanks as the primary containment vessels. These tanks offer several advantages over traditional concrete in the Vietnamese climate:

Superior Corrosion Resistance: The glass-to-steel bond is impervious to aggressive industrial chemicals and organic acids, preventing leaks for over 30 years.

Rapid Modular Installation: Bolted construction is significantly faster than concrete pouring, allowing for quick deployment even during active mill operations.

Scalability and Flexibility: GFS tanks can be easily expanded or relocated, providing the flexibility needed as production capacity grows.

Why Choose Center Enamel as Your EPC Contractor?

As a global leader, Center Enamel provides a seamless, turnkey experience for the environmental sector:

Customized Engineering: Our systems are precision-engineered to meet Vietnam's specific effluent standards and your mill's unique chemical profile.

Proven Global Expertise: With projects in over 100 countries, we bring international engineering standards and innovation to local projects.

Full Lifecycle Support: From initial design and tank fabrication to automated control systems and long-term commissioning.

Success Stories in Papermaking Treatment

Case 1: Jiangxi Papermaking Wastewater Treatment Project

Tank Dimensions: φ15.29*28.2 meters (H) 2 tanks

Total Tank Volume: 10350 m³

Completion Date: 2023

Case 2: Yunnan Papermaking Wastewater Treatment Project

Tank Dimensions: φ9.94*18 m (H) 1 tank

Total Volume: 1396 m³ 1 tank

Completion Date: 2024

Vietnam’s papermaking industry requires advanced and sustainable wastewater solutions to remain competitive and compliant in an increasingly eco-conscious market. Center Enamel’s integration of high-rate anaerobic processes and durable Glass-Fused-to-Steel technology provides manufacturers with a high-performance foundation for environmental excellence. By partnering with an experienced EPC contractor, Vietnamese mills can effectively manage toxic effluents while contributing to a greener industrial future and ensuring their long-term growth in the global marketplace.
