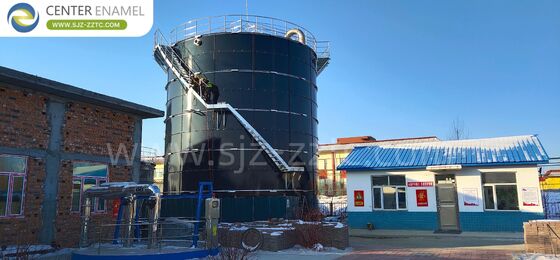

Advanced GFS Tanks and EPC Solutions for Japan's Papermaking Wastewater Treatment

Japan stands as one of the world's leading producers of paper and paperboard, supported by a highly sophisticated manufacturing infrastructure and a strong focus on high-quality specialized paper. As the global demand for sustainable packaging and eco-friendly paper products rises, the Japanese paper industry is undergoing a significant transition toward greener production methods. For Japanese manufacturers, implementing advanced papermaking wastewater treatment projects is a vital strategy to maintain international competitiveness while adhering to some of the world's most rigorous environmental standards. Center Enamel, a premier global EPC contractor, leverages its proprietary GFS tanks and high-efficiency anaerobic technologies to provide turnkey solutions for the Japanese paper sector.

Japan's Papermaking Industry and Environmental Policy

The Japanese paper industry is characterized by its high technological standards and a deep commitment to recycling, with one of the world's highest wastepaper utilization rates. However, the industrial process remains resource-intensive. To protect its delicate island ecosystems and inland water quality, the Japanese government enforces strict environmental regulations. These policies focus on minimizing the discharge of organic pollutants and toxic effluents, pushing the industry toward circular water management.

For mills operating in industrial clusters across Japan, achieving ultra-low Chemical Oxygen Demand (COD) and Biological Oxygen Demand (BOD) levels is mandatory. As the national policy trends toward carbon neutrality and "Zero Liquid Discharge" (ZLD), the need for an EPC contractor capable of delivering high-performance, energy-efficient wastewater treatment systems has reached a critical point.

The Challenge of Papermaking Wastewater

Generating wastewater from paper production is significantly more complex than treating standard municipal sewage. While municipal waste is largely organic and consistent, papermaking effluent presents several distinct engineering challenges:

High Organic Concentration: The pulping stage releases lignin and various wood sugars, resulting in elevated COD levels that require intensive anaerobic digestion to break down.

High Suspended Solids (SS): Fine cellulose fibers and mineral fillers frequently remain in the water, which can lead to clogging if the reactor design is not optimized.

Chemical Complexity: The presence of bleaching agents and other process chemicals can inhibit biological activity, making the stabilization of the treatment system a sophisticated task.

Comprehensive Papermaking Wastewater Treatment Flow

To meet Japan’s high standards, Center Enamel designs a multi-stage treatment process tailored to the specific needs of each mill:

Pre-treatment: Advanced physical screening is used to recover valuable fibers and remove heavy solids, followed by pH stabilization to prepare the water for biological stages.

Anaerobic Core: This is the heart of the system, where high-rate reactors like IC or UASB digest organic matter and generate renewable biogas as a byproduct.

Aerobic Polishing: A secondary treatment stage that further clarifies the water and removes residual nutrients.

Advanced Tertiary Treatment: Utilizing membranes or activated carbon filtration to ensure the water is clean enough for reuse within the factory or safe discharge into the environment.

Specialized Anaerobic Technologies: IC, UASB, CSTR, and USR

Center Enamel offers a variety of reactor types to ensure the best fit for different industrial applications:

IC (Internal Circulation) Reactor: A high-rate system ideal for large-scale Japanese mills. Its internal circulation mechanism provides superior stability and handles heavy organic loads in a compact footprint.

UASB (Upflow Anaerobic Sludge Blanket): A classic, energy-efficient solution that utilizes a dense sludge blanket to treat high volumes of liquid effluent.

CSTR (Continuous Stirred Tank Reactor): Best applied to wastewater with high suspended solids, using active mechanical stirring to ensure complete digestion.

USR (Upflow Solids Reactor): Designed specifically for streams with high solid content, ensuring efficient conversion of complex waste into energy.

The Advantage of Glass-Fused-to-Steel (GFS) Tanks

At the core of Center Enamel’s EPC solutions are our proprietary Glass-Fused-to-Steel (GFS) tanks. These tanks provide significant benefits over traditional concrete structures:

Exceptional Durability: The glass-to-steel bond offers superior resistance to corrosion from aggressive industrial chemicals, ensuring a lifespan of over 30 years.

Modular and Rapid Installation: The bolted design allows for fast assembly on-site, which is essential for Japanese mills with limited space or tight construction schedules.

Low Maintenance and Flexibility: These tanks require minimal upkeep and can be expanded or relocated as the mill’s production needs change.

Why Partner with Center Enamel?

As a global leader in the environmental sector, Center Enamel offers more than just equipment; we provide complete engineering certainty:

Precision Engineering: Our systems are customized to align with local Japanese regulations and the specific effluent chemistry of each site.

Global Project Experience: With successful installations in over 100 countries, we bring international best practices to the Japanese market.

End-to-End Service: As an integrated EPC contractor, we manage everything from process design and tank manufacturing to installation and final commissioning.

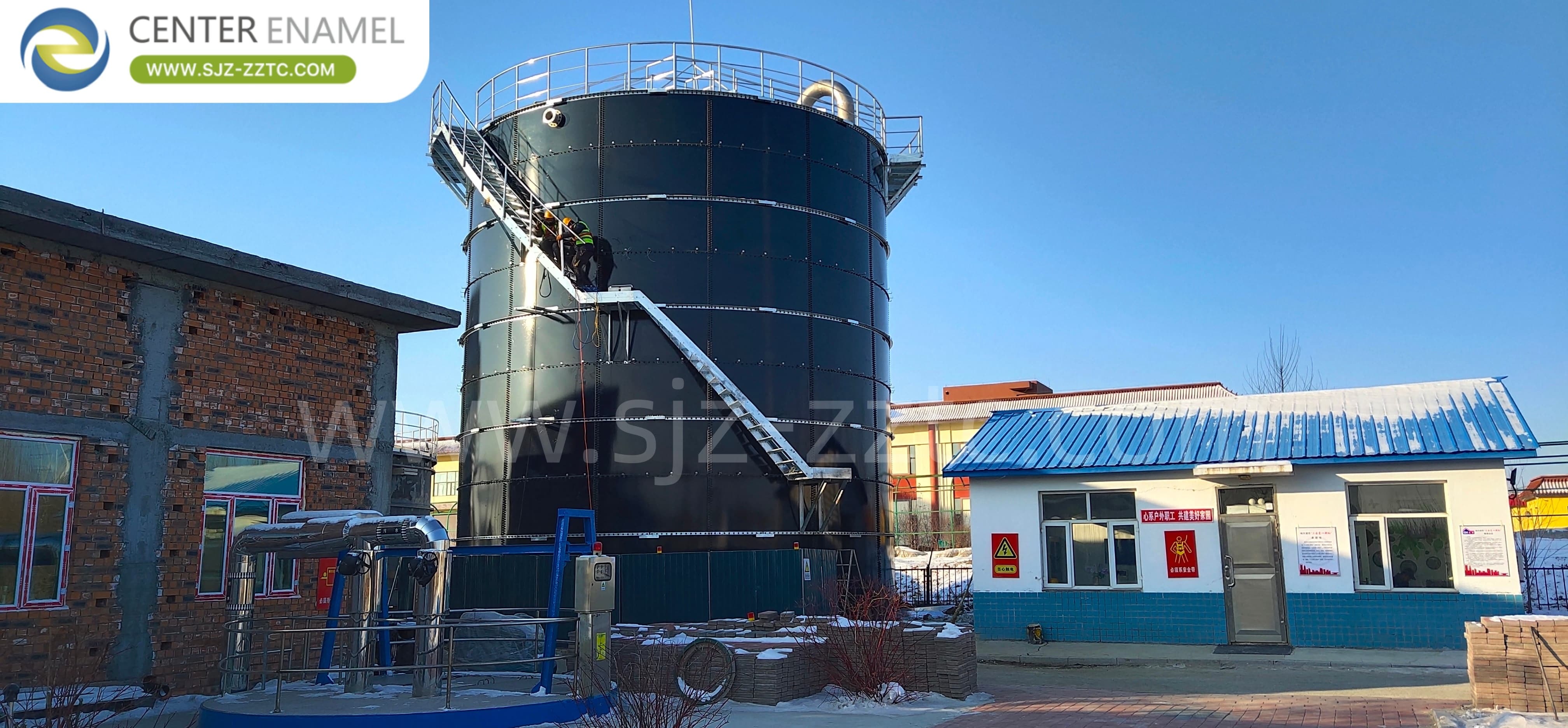

Successful Case Studies of Center Enamel

Case 1: Jiangxi Papermaking Wastewater Treatment Project

Tank Dimensions: φ15.29*28.2 meters (H) 2 tanks

Total Tank Volume: 10350 m³

Completion Date: 2023

Case 2: Yunnan Papermaking Wastewater Treatment Project

Tank Dimensions: φ9.94*18 m (H) 1 tank

Total Volume: 1396 m³ 1 tank

Completion Date: 2024

Japan’s papermaking industry is a model of technical excellence that requires equally advanced wastewater solutions to meet modern environmental goals. Center Enamel’s combination of high-rate anaerobic technology and durable Glass-Fused-to-Steel tanks offers a high-performance foundation for sustainable operations. By working with an experienced EPC contractor, Japanese mills can efficiently process complex effluents, recover energy, and ensure their long-term growth in a green-conscious global economy.
