Powering a Sustainable Future: Center Enamel's Bolted Steel Biogas Tanks for Renewable Energy and Waste-to-Value Solutions
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden |
| Delivery Time: | 10-30 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W |
| Corrosion Resistance: | Suitable For Waste Water Salt Water, Sea Water, High Sulfur Crude Oil, Salt Fox, Organic And Inorganic Compounds | Elastic: | Same As Steel Sheet ,around 500KN /mm |
| Tank Body Color: | Dark Green / Can Be Customized | Coating Thickness: | 0.25mm~0.40mm , Two Layer Of Coating Internal And External |
| Foundation: | Concrete Or Glass Fused Steel | Steel Grade: | ART 310 |
| Highlight: | bolted steel biogas tanks,glass fused steel biogas tanks,renewable energy storage tanks |
||
Product Description
In the global movement towards a sustainable, circular economy, the conversion of organic waste into valuable resources is a powerful and increasingly vital strategy. Biogas technology stands at the forefront of this transformation, offering a dual solution to two of the world's most pressing challenges: waste management and the need for renewable energy.
| Attribute | Value |
|---|---|
| Corrosion resistance | Suitable for waste water, salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds |
| Elastic | Same as steel sheet, around 500KN/mm |
| Tank body color | Dark green / can be customized |
| Coating thickness | 0.25mm~0.40mm, two layers of coating internal and external |
| Foundation | Concrete or glass fused steel |
| Steel grade | ART 310 |

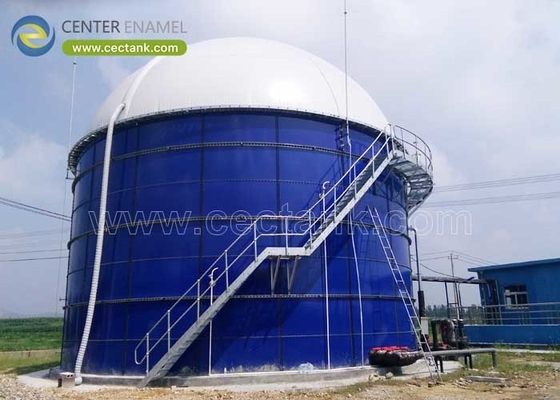

At Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel), we are proud to be a foundational partner in this vital industry. Our advanced Bolted Steel Biogas Tanks are not just containers; they are the heart of any anaerobic digestion facility, meticulously engineered to create the optimal environment for converting waste into energy.
We leverage over three decades of unparalleled expertise in bolted tank technology to provide solutions that are not only robust and durable but also perfectly suited to the unique, demanding conditions of biogas production.
| Storage tanks | Volume | Roofs | Application | Design Requirements |
|---|---|---|---|---|
| GLS Tanks, SS Tanks, Fusion Bonded Epoxy Tanks, Galvanized Steel Tanks, Welded Steel Tanks | <1000m³, 1000-10000m³, 10000-20000m³, 20000-25000m³, >25000m³ | ADR Roof, GLS Roof, Membrane Roof, FRP Roof, Trough Deck Roof | Wastewater Treatment Project, Drinking Water Project, Municipal Sewage Project, Biogas Project, Fire Water Storage Project, Oil Storage Project | Water Supply & Drainage System, Seismic Design, Wind Resistant Design, Lightning Protection Design, Tank Insulation Design |
| Pretreatment Equipment | Resource Utilization System | Sludge Treatment System | Other Equipment |
|---|---|---|---|
| Mechanical Bar Screen, Solid-liquid Separator, Submersible Mixer | Gas Holder, Boiler System, Boost Fan, Bio gas Generator, Torch System, Dehydration and Desulfurization Tank | PAM Integration Dosing Device, Screw Sludge Dewatering Machine, Slurry Separation Centrifuge | Sewage Pump, Mud Scraper, Submersible Sewage Pump, Three-phases Separator |
A biogas tank, or anaerobic digester, is a sealed vessel where microorganisms break down organic materials in the absence of oxygen. This process yields two primary products:
- Biogas: A mixture of gases, primarily methane (CH4) and carbon dioxide (CO2), which can be used to generate electricity, heat, or be upgraded to biomethane
- Digestate: A nutrient-rich, semi-solid byproduct that serves as an excellent natural fertilizer
Our bolted steel biogas tanks combine the strength and structural reliability of steel with the practicality of a modular, factory-fabricated design:
- Exceptional Corrosion Resistance with specialized coatings
- Gas-Tight Integrity with precision-engineered bolted panel design
- Rapid and Cost-Effective Deployment with modular panels
- Design Flexibility and Scalability for any project size
- Superior Quality Control with strict manufacturing protocols
Glass-Fused-to-Steel (GFS) Tanks: The premier choice with ultimate corrosion resistance, hygienic surface, and 30+ year service life.
Fusion Bonded Epoxy (FBE) Coated Steel Tanks: A robust, durable, and cost-effective solution for general anaerobic digestion.
Stainless Steel Tanks: The premium choice for specialized applications requiring specific chemical resistance or hygienic surfaces.
Our commitment to excellence is reflected in our adherence to international standards including AWWA D103-09, ISO 28765, ISO 9001, and NSF/ANSI 61. As the most experienced bolted tanks manufacturer in Asia and a global supplier to over 100 countries, we bring a legacy of innovation to every project.
Center Enamel's bolted steel biogas tanks are integral components that enhance the performance, safety, and longevity of your entire biogas facility, enabling operators to maximize energy yields and contribute to a cleaner, more sustainable planet.
