Engineering High-Standard Separators: Navigating ASME Code Requirements

Engineering High-Standard Separators: Navigating ASME Code Requirements

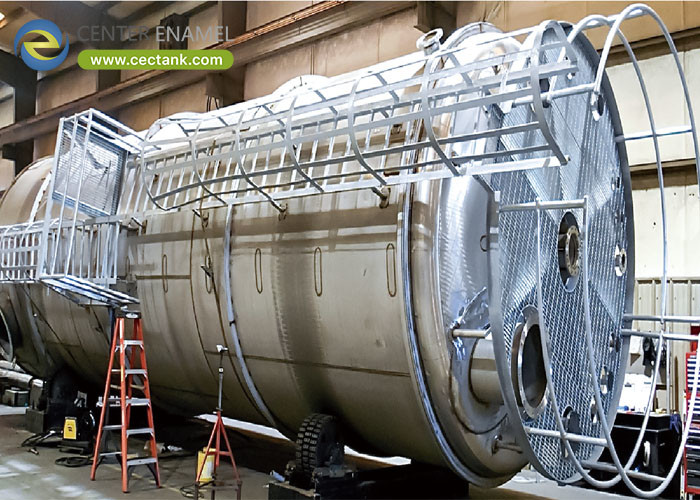

In the intricate world of process engineering, particularly within the oil and gas, petrochemical, and water treatment industries, the efficient and safe separation of various phases – liquid from gas, liquid from liquid, or solids from liquids – is a fundamental requirement. The workhorses of these separation processes are pressure vessels known as separators. These critical pieces of equipment must be designed, fabricated, and tested to the highest standards to ensure operational reliability, prevent catastrophic failures, and safeguard both personnel and the environment. At the forefront of these standards lies the ASME Boiler and Pressure Vessel Code (BPVC), a globally recognized benchmark for the design, construction, inspection, and testing of pressure vessels. For manufacturers like Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel), adherence to ASME code requirements is not merely a regulatory obligation but a core principle that underpins the quality, safety, and longevity of their high-standard separators.

We will explore the key sections relevant to separator design and fabrication, the importance of material selection, the intricacies of welding and non-destructive examination, and the crucial role of pressure testing and certification. Understanding these elements provides valuable insight into the engineering rigor that goes into producing separators that meet the demanding needs of various industries while adhering to the highest safety and quality standards.

The Cornerstone: Understanding the ASME Boiler and Pressure Vessel Code

The ASME BPVC is a comprehensive set of rules and guidelines governing the design, fabrication, inspection, testing, and certification of boilers and pressure vessels. It is developed and maintained by the American Society of Mechanical Engineers (ASME) and is adopted as law in many jurisdictions worldwide. The Code is organized into several sections, each addressing specific aspects of pressure vessel engineering. For separator design and fabrication, the most relevant sections include:

Section VIII, Division 1: Rules for Construction of Pressure Vessels: This is the primary section governing the design, fabrication, inspection, testing, and certification of pressure vessels operating at internal or external pressures exceeding 15 psig. It provides detailed requirements for various aspects, including design calculations, material selection, welding procedures, non-destructive examination (NDE), and pressure testing.

Section II: Materials: This section specifies the acceptable materials for use in pressure vessel construction, outlining their chemical and physical properties, allowable stress values, and testing requirements. Adherence to Section II ensures that the materials used in separator fabrication possess the necessary strength and corrosion resistance for their intended service.

Section V: Non-destructive Examination: This section details the requirements for various NDE methods used to verify the quality of welds and materials, including visual examination (VT), radiographic examination (RT), ultrasonic examination (UT), magnetic particle examination (MT), and liquid penetrant examination (PT). Proper application of these methods is crucial for detecting discontinuities and ensuring the structural integrity of the separator.

Section IX: Welding and Brazing Qualifications: This section establishes the rules for the qualification of welding and brazing procedures, welders, and brazers. Adherence to Section IX ensures that all welding performed during separator fabrication is carried out by qualified personnel using approved procedures, resulting in strong and reliable welds.

Navigating these sections requires a deep understanding of the Code's requirements and their practical application in separator design and fabrication. Engineers at Center Enamel possess this expertise, ensuring that every separator manufactured meets or exceeds the stringent standards set forth by ASME.

Design Integrity: The Foundation of a High-Standard Separator

The design phase is the bedrock upon which a safe and efficient separator is built. ASME Section VIII, Division 1 provides a comprehensive framework for pressure vessel design, encompassing several critical considerations:

Design Pressure and Temperature: These are the maximum pressure and temperature that the separator is expected to experience during normal operation. Accurate determination of these parameters is crucial for selecting appropriate materials and calculating required wall thicknesses.

Stress Analysis: ASME code mandates rigorous stress analysis to ensure that the separator can withstand the design pressure and other applied loads without exceeding allowable stress limits for the chosen materials. This involves calculating stresses due to internal pressure, external pressure (if applicable), dead weight, seismic loads, and other operational forces. Finite Element Analysis (FEA) is often employed for complex geometries to accurately predict stress distribution.

Wall Thickness Calculation: Based on the design pressure, material allowable stress, and vessel geometry, ASME code provides formulas for calculating the minimum required wall thickness for the shell, heads, and other pressure-containing components. These calculations incorporate safety factors to ensure adequate structural integrity.

Nozzle and Opening Design: Separators invariably require nozzles and openings for inlet, outlet, instrumentation, and access. ASME code provides specific rules for reinforcing these openings to compensate for the material removed and ensure that the structural integrity of the vessel is maintained. Area replacement rules and reinforcement pads are common methods employed.

Support Design: The design of supports (skirts, saddles, or legs) must ensure that the separator is adequately supported under all operating and testing conditions, considering static loads, dynamic loads (like wind and seismic), and thermal expansion. ASME code provides guidelines for support design to prevent excessive stresses on the vessel shell.

Internal Component Design: While not strictly governed by pressure vessel code, the design of internal components like baffles, weirs, mist eliminators, and coalescers is crucial for separator performance. These components must be engineered to withstand the process conditions and flow rates without causing undue stress on the vessel shell or hindering separation efficiency. Center Enamel's expertise extends to the design and integration of these critical internals.

Adherence to these design principles, guided by the ASME BPVC, ensures that Center Enamel's separators are not only structurally sound but also optimized for the specific separation tasks they are intended to perform.

Material Selection: Ensuring Compatibility and Strength

The selection of appropriate materials is paramount for the safety and longevity of a separator. ASME Section II provides a comprehensive list of acceptable materials, each with specified chemical and physical properties, including tensile strength, yield strength, and allowable stress values at various temperatures. Key considerations in material selection include:

Service Conditions: The temperature, pressure, and chemical composition of the fluids being processed dictate the required material properties. Resistance to corrosion, erosion, and embrittlement is crucial.

Strength Requirements: The material must possess sufficient tensile and yield strength to withstand the design pressure and other applied loads within the allowable stress limits specified by ASME code.

Weldability: The chosen material must be readily weldable using approved procedures without compromising its mechanical properties or corrosion resistance.

Cost and Availability: While safety and performance are paramount, cost-effectiveness and material availability are also practical considerations.

Common materials used in separator fabrication include various grades of carbon steel, stainless steel, and alloy steels, each offering different combinations of strength, corrosion resistance, and cost. Center Enamel's material selection process involves a thorough evaluation of the service conditions and design requirements to ensure the optimal material is chosen for each separator, complying fully with ASME Section II.

The Art and Science of Welding and Non-Destructive Examination

Welding is the primary method of joining the various components of a separator. The integrity of these welds is critical to the overall structural integrity and safety of the pressure vessel. ASME Section IX establishes stringent requirements for welding procedures and welder qualifications. Key aspects include:

Welding Procedure Specifications (WPS): A WPS is a detailed document outlining the specific welding parameters (e.g., welding process, filler metal, welding technique, voltage, amperage) to be used for a particular material and joint design. WPSs must be qualified through procedure qualification records (PQRs) to demonstrate that they can consistently produce welds with the required mechanical properties.

Welder Qualification: Welders must be qualified by testing to demonstrate their ability to produce sound welds according to qualified WPSs. These qualifications are specific to the welding process, material type, and welding position.

To ensure the quality of the welds, Non-Destructive Examination (NDE) is employed. ASME Section V outlines the requirements for various NDE methods, including:

Visual Examination (VT): A basic but essential method for detecting surface discontinuities.

Radiographic Examination (RT): Uses X-rays or gamma rays to inspect the internal soundness of welds.

Ultrasonic Examination (UT): Uses high-frequency sound waves to detect both surface and subsurface discontinuities.

Magnetic Particle Examination (MT): Used to detect surface and slightly subsurface discontinuities in ferromagnetic materials.

Liquid Penetrant Examination (PT): Used to detect surface-breaking discontinuities in non-porous materials.

The extent and type of NDE required are specified by ASME Section VIII, Division 1 based on the design conditions, material thickness, and service requirements. Center Enamel employs qualified welders and certified NDE personnel, adhering strictly to ASME Sections IX and V, to ensure the highest quality welds in their separators.

Pressure Testing and Certification: The Final Verification

Before a separator leaves the fabrication shop, it undergoes rigorous pressure testing to verify its structural integrity and leak tightness. ASME Section VIII, Division 1 details the requirements for hydrostatic testing (using water) or pneumatic testing (using air or another gas). The test pressure is typically 1.3 times the design pressure for hydrostatic testing. Successful completion of the pressure test, without any signs of leakage or permanent deformation, is a crucial step in the certification process.

Upon successful completion of all design, fabrication, inspection, and testing requirements, the separator is stamped with the ASME U-stamp (for unfired pressure vessels) and a Manufacturer's Data Report (Form U-1) is prepared. This report documents all aspects of the vessel's design, materials, fabrication, inspection, and testing, and is signed by the manufacturer and the Authorized Inspector (an independent third-party inspector accredited by ASME). The ASME U-stamp and the Form U-1 serve as a testament to the fact that the separator has been designed, fabricated, and tested in accordance with the stringent requirements of the ASME BPVC.

Center Enamel: Engineering Excellence Through ASME Compliance

For Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel), adherence to ASME code requirements is ingrained in their engineering and manufacturing processes. Their commitment to quality and safety is evident in every separator they produce. By employing experienced engineers with a deep understanding of the ASME BPVC, utilizing high-quality materials compliant with Section II, employing qualified welders and certified NDE personnel adhering to Sections IX and V, and conducting rigorous pressure testing and certification, Center Enamel ensures that their separators meet the highest industry standards.

This dedication to ASME compliance translates into numerous benefits for Center Enamel's customers:

Enhanced Safety: ASME-certified separators are designed and built to withstand operating pressures and temperatures safely, minimizing the risk of failure and protecting personnel and the environment.

Operational Reliability: Adherence to stringent fabrication and inspection standards ensures the structural integrity and leak tightness of the separators, leading to reliable and efficient operation.

Regulatory Compliance: ASME certification is widely recognized and often mandated by regulatory authorities worldwide, ensuring that Center Enamel's separators meet the necessary legal requirements.

Increased Asset Lifespan: The use of quality materials and adherence to robust design and fabrication practices contribute to the longevity of the separators, providing a long-term return on investment.

Global Acceptance: The ASME U-stamp is a globally recognized mark of quality, facilitating the acceptance and operation of Center Enamel's separators in various international markets.

engineering high-standard separators is a multifaceted process that demands meticulous attention to detail and a thorough understanding of complex codes and standards. Navigating the ASME Boiler and Pressure Vessel Code is not just a technical exercise but a commitment to safety, quality, and operational excellence. Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel)'s unwavering adherence to ASME requirements underscores their dedication to providing their customers with separators that are not only efficient and reliable but also engineered to the highest safety standards, ensuring peace of mind and long-term value in demanding industrial applications.
