FDA Certified Two Layer Coating GFS Tanks For Drinking Water Projects

Product Details
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W20160705006
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 0-60 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Detail Information

Place of Origin China Brand Name CEC TANKS
Certification ISO 9001:2008, AWWA D103 , OSHA , BSCI Model Number W20160705006
Coating Thickness: 0.25mm~0.40mm , Two Layer Of Coating Internal And External Tank Material: Glass Fused To Steel
Steel Grade: ART 310 Roof Available: Glass Fused Steel Roof , Membrane Roof, Aluminum Roof , GRP Roof
High Light:

Two Layer Coating Gfs Tanks


Gfs Tanks FDA Certified

Product Description

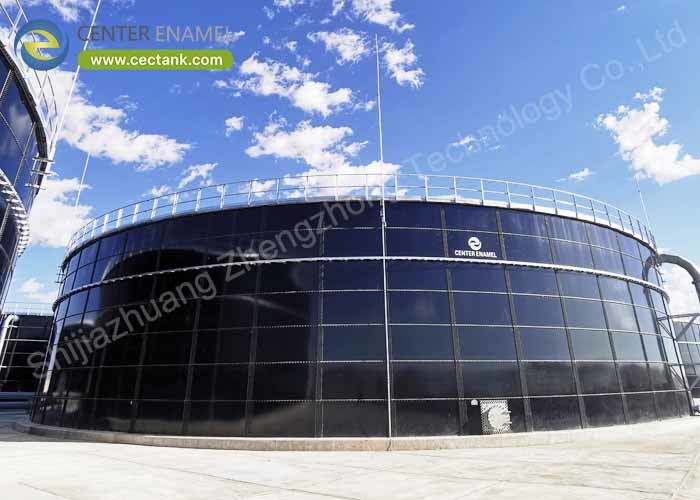

FDA-Certified GFS Tanks - An Excellent Storage Tank Solution For Drinking Water Projects


Center Enamel combines local realities and provides drinking water solutions according to local conditions, using Glass-Fused-to-Steel tanks as project equipment. Different from other equipment of the same type, the enamel assembled tanks innovatively developed by Center Enamel have passed multiple international certifications such as the FDA. Its enamel porcelain layer has superior antibacterial and anti-corrosion effects, and its color is white and stable, which strengthens the safety of drinking water.


Glass-Fused-to-Steel tanks are assembled on site from special Glass-Fused-to-Steel plates, stirrups, self-locking bolts, sealants and other accessories. The raw material of the steel plate is titanium-containing enamel hot-rolled plate developed in cooperation with domestic first-tier steel companies, which is formed using fast and low-cost on-site assembly technology. After the Glass-Fused-to-Steel plate is enameled at a high temperature of 820°-930°, the enamel will fuse with the surface of the steel plate to form a strong and chemically inert inorganic coating with excellent corrosion resistance. The Glass-Fused-to-Steel process is currently the most advanced coating anti-corrosion technology in the steel storage tank market.


Category Specification
Coating Color Black blue, Grey olive, Forest green, Cobalt blue, Desert tan etc.
Coating thickness 0.25-0.45mm
Acid and alkalinity proof Standard PH: 3~11, Special PH:1~14
Adhesion 3450N/cm²
Hardness 6.0 (Mohs)
Service life ≥30 Years
Holiday test >1500V
Permeability Gas liquid impermeable
Easy to clean Smooth, glossy, inert, anti-adhesion
Corrosion resistance Excellent, suitable for harsh environment


Advantages of GFS tanks

Superior anti-corrosion technology

Center Enamel independently develops double-sided double-layer enamel technology to fill the gap in the Chinese enamel industry in the field of hot-rolled double-sided enamel technology. This technology is currently the best coating anti-corrosion technology in the steel storage tank market and has superior anti-corrosion advantages.

Wide range of applications

Center Enamel has independently developed more than 200 glaze formulas and patents, and can develop customized enamel formulas according to customers' storage medium requirements for enamel assembled tanks, making the storage tanks widely applicable to different fields.

Designed to suit local conditions

Based on the project construction location, multiple targeted designs such as wind resistance and earthquake resistance were adopted for the enamel assembled tanks to ensure that the enamel assembled tanks will not be damaged by natural factors such as earthquakes and typhoons.

Make reasonable use of the environment

Enamel assembled tanks can be flexibly designed and customized in tank size and color according to customer needs and environmental requirements, saving floor space and suitable for modern construction requirements.

High degree of standardization

The steel plates and main components of the enamel assembled tanks are produced in a standardized manner through automated equipment in the factory, and are packaged and transported to the project site for standardized assembly. From production to installation, the design plan is strictly followed to ensure standardized manufacturing of storage tanks.

Easy and quick installation

The enamel assembled tank adopts on-site assembly method, which is simple and fast to install, is less affected by weather factors, and has a short and controllable installation cycle. After it is completed and put into operation, the storage tank can be dismantled and reinstalled, making it easy to relocate and expand its capacity.


In addition to the Maldives, Center Enamel has also built drinking water projects in Indonesia, Ghana, Costa Rica, Panama and other countries and regions, effectively solving the problems of water shortage and drinking water safety, meeting the daily water and drinking water needs of local residents, and has obtained unanimously recognized by customers.
