Place of Origin: | China |
Brand Name: | CEC TANKS |
Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
Model Number: | W20171016013 |
Minimum Order Quantity: | 1set |
Price: | $5000~$20000 one set |
Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
Delivery Time: | 10-30 days after deposit received |
Supply Ability: | 60 sets per month |
Detail Information |
|||
Place of Origin | China | Brand Name | CEC TANKS |
---|---|---|---|
Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W20171016013 |
Coating Thickness: | 0.25mm~0.40mm & Double Coating | Capacity: | 20 M3 To 18,000 M3 |
Foundation: | Concrete Or Glass Fused Steel | Size Of Panel: | 2.4M * 1.2M |
Easy To Clean: | Smooth, Glossy, Inert, Anti-adhesion | Feature: | Eco-friendly, Durability |
Highlight: | 18000m3 Glass Fused Steel Tanks,Eco Friendly Glass Fused Steel Tanks,Double Coating Glass Fused Steel Tanks |

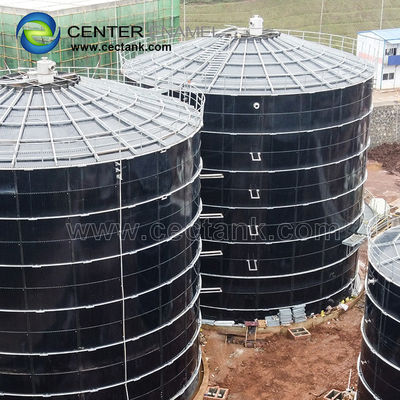

Glass Fused to Steel Tanks
Glass Fused to Steel Tanks (GFS Tanks), also known as Glass Lined Steel Tanks (GLS Tanks), are constructed using GFS panels. These GFS panels are processed stainless steel sheets with a glass/silicate fused layer. The key reason for fusing glass with steel is to improve the overall durability of the panel. Single-layer steel is susceptible to environmental conditions that cause early decomposition/corrosion of the material; so the fusion of glass prevents this from happening. After the steel and glass are fused, the strength increases, the acceptable range of the pH value of the alkaline solution expands, and the wear resistance increases.
The enamel assembling tank technology is a tank manufacturing technology that uses a special high-strength steel substrate for enamel, adopts a professional enamel process, and fuses a highly inert anti-corrosion glaze layer on the surface of the substrate to make a standardized steel module tank manufacturing technology; Consumption, quick installation, and finally complete tank forming.
Quality Assurance and Standards
Every sheet/panel goes through a thorough and strict quality inspection at the manufacturing plant; all the Glass-Fused-to-Steel tanks engineering designs meet or exceed AWWA D103-09 and EN/ISO28765:2011.
Our Storage tanks
Storage tanks | Volume | Roofs | Accessories | Application |
GFS Tanks SS Tanks Steel Tanks |
20-20000m³ | ADR Roof GFS Roof Membrane Roof FRP Roof Trough Deck Roof |
Ladders Platforms Pumps Three-phase Separator Biogas Purification System |
Wastewater Treatment Project Drinking-Water Project Municipal Sewage Project Biogas Project Fire-Water Storage Project Oil Storage Project |
