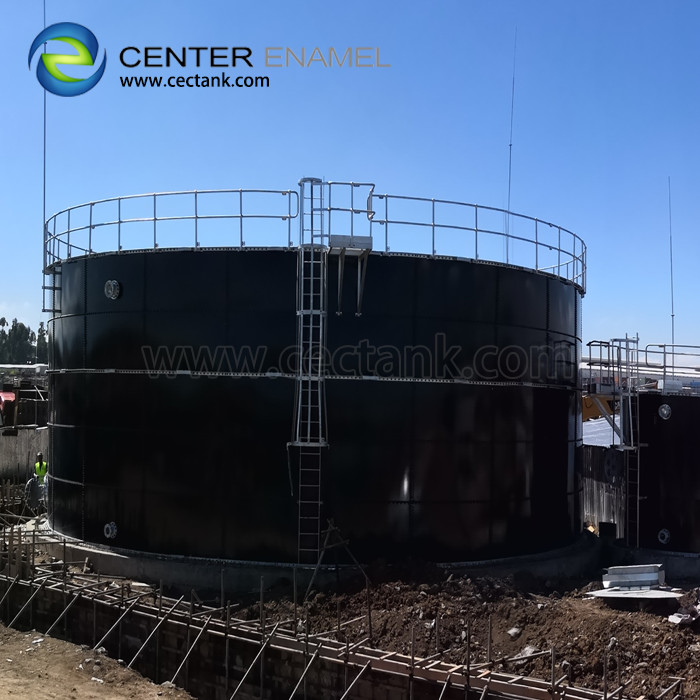

ART 310 Glass Fused Storage Tanks For Pig Farm Biogas Project

ART 310 Glass Fused Storage Tanks For Pig Farm Biogas Project
ART 310 Glass Fused Storage Tanks For Pig Farm Biogas Project ART 310 Glass Fused Storage Tanks For Pig Farm Biogas Project ART 310 Glass Fused Storage Tanks For Pig Farm Biogas Project ART 310 Glass Fused Storage Tanks For Pig Farm Biogas Project

Large Image :  ART 310 Glass Fused Storage Tanks For Pig Farm Biogas Project

Product Details:
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden
Delivery Time: 10-30 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Detailed Product Description
Impact Resistance: Excellent Installation: By Jacking Machine Or Steel Pole, Fast In Installation
Tank Material: Glass Fused To Steel Hardness: 6.0Mohs
Steel Grade: ART 310
High Light:

ART 310 Glass Fused Storage Tanks

,

Pig Farm Glass Fused Storage Tanks

,

Biogas Glass Fused Storage Tanks

Biogas Storage Tanks For Pig Farm Biogas Project



Anaerobic digestion (AD), which uses farm waste streams such as animal slurries and agricultural biomass products, is seen as an important part of the continued growth of "green" renewable energy solutions worldwide. AD is the ideal solution to generate on-farm biogas and generate viable diversification income for the farm, and the by-product of the process is used as fertilizer.



The biogas produced by the anaerobic digestion plant is composed of combustible gas methane (50-75%), carbon dioxide (25-50%), water (H2O), nitrogen (N2), oxygen (O2), hydrogen sulfide (H2S), ammonia ( NH3) and trace elements (organohalides, siloxanes, etc.). H2S, CO2 and water make biogas very corrosive.



Whether you're battling greenhouse gases or rising energy costs, Center Enamel can help you build an anaerobic digester that will last.Our main products include Glass-Fused-to-Steel tanks, stainless steel tanks, Carbon Steel tanks, aluminum geodesic dome roofs, and can provide customized design, manufacturing, and installation for global customers.



Glass Fused to Steel Biogas Tank Specifications



Coating color dark blue, dark green, white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm, depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coatings internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet, around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil,
salt fox, organic and inorganic compounds





Center Enamel is the leading bolted tanks and roofs manufacturer in China, which have more than 30 years of industry experience. All our products are in strict accordance with AWWA D103-09, API 650, OSHA, ISO 28765, NSF/ANSI 61, NFPA and other international standards. Until 2022, Center Enamel storage tanks and roofs have been exported to more than 90 countries including the USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, Brazil, and South Africa etc.





ART 310 Glass Fused Storage Tanks For Pig Farm Biogas Project 0
