Place of Origin: | China |
Brand Name: | CEC TANKS |
Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
Model Number: | J2016012654 |
Minimum Order Quantity: | 1set |
Price: | $5000~$20000 one set |
Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
Delivery Time: | 0-60 days after deposit received |
Payment Terms: | L/C, T/T |
Supply Ability: | 60 sets per month |
Detail Information |
|||
Place of Origin | China | Brand Name | CEC TANKS |
---|---|---|---|
Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | J2016012654 |
Adhesion: | 3,450N/cm | Elastic: | Same As Steel Sheet ,around 500KN /mm |
Acid And Alkalinity Proof: | Standard Sheet PH:3~11 Special Sheet PH: 1~14 | Service Life: | ≥30 Years |
Permeability: | Gas And Liquid Impermeable | Material: | Glass And Steel |
Coating Color: | Can Be Customized | Coating Thickness: | 0.25mm~0.40mm & Double Coating |
High Light: | Glass Fused To Steel Industrial Tanks,Liquid Impermeable Industrial Tanks,Double Coating Industrial Tanks |

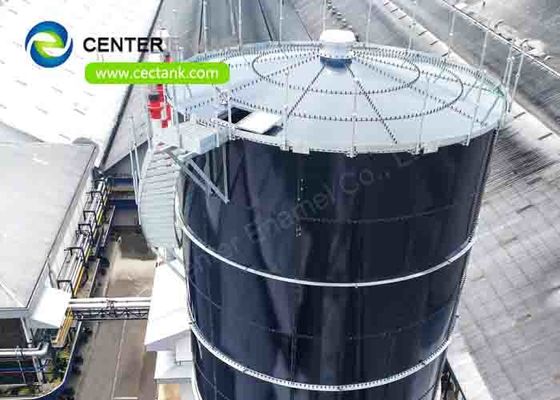

Glass Fused To Steel Industrial Tanks
Glass Fused to Steel (GFS) is the ultimate tank solution which utilizes a proven product with significant advantages, also known as Glass Lined Steel (GLS). What is Glass Fused To Steel (GFS)? A special tank finish is Glass Fused to Steel (Glass Lined Steel Tanks). The power and the durability of stain combined with the corrosion resistance of glass are two components fused together to achieve the best properties of both. Glass Fused to Steel will provide trouble-free operation in harsh environments, for years on both internal and external surfaces.
Center Enamel Co., Ltd is not only the first glass lined steel Tanks manufacturer and supplier in China, but also the most experienced glass lined steel tanks manufacturer in all of Asia. Center Enamel porcelain enamel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC glass lined steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel porcelain enamel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
Glass Lined Steel Tanks Specifications
Coating color | dark blue, dark green, white, and customized |
A standard steel plate size | effective size 2400mm x 1200 m |
Steel plates thickness | 3mm - 12mm, depends on the diameter & height |
Coating thickness | 0.25mm - 0.4mm, two coatings internal and external |
Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
Adhesion | 3,450N/cm |
Elastic | same as steel sheet, around 500KN/mm |
Hardness | 6.0 Mohs |
Service life | >30 years |
Spark test | >1500 V |
Permeability | gas and liquid impermeable |
Easy yo clean | smooth, glossy, inert, anti-adhesion |
Corrosion resistance | excellent! Suitable for wastewater saltwater, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds |
