Glass Fused To Steel Biogas Storage Tank Double Coating
| Place of Origin: | CHINA |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W20180508003 |
| Minimum Order Quantity: | 1 SET |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates;wooden pallets and wooden box |
| Delivery Time: | 10-30 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | CHINA | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W20180508003 |
| Coating Color: | Dark Green, Or Customizing Colors | Coating Thickness: | 0.25~0.40mm, Double Coating |
| Acid And Alkalinity Proof: | Standard Coating Suits For PH3 - PH11, Special Coating Suits For PH1 - PH14 | Adhesion: | 3,450N/cm |
| Hardness: | 6.0 Mohs | Holiday Test: | >1500V |
| Installation: | By Jacking Machine Or Steel Pole, Fast In Installation | Permeability: | Gas / Liquid Impermeable |
| Foundation: | Concrete Or Glass Fused Steel | Steel Grade: | ART 310 |
| Applications: | Water , Waste Water, Digester , Reactor , Grain , Sludge , Chemicals | Highlight: | Double Coating Biogas Storage Tank,Liquid Impermeable Biogas Storage Tank |
Product Description

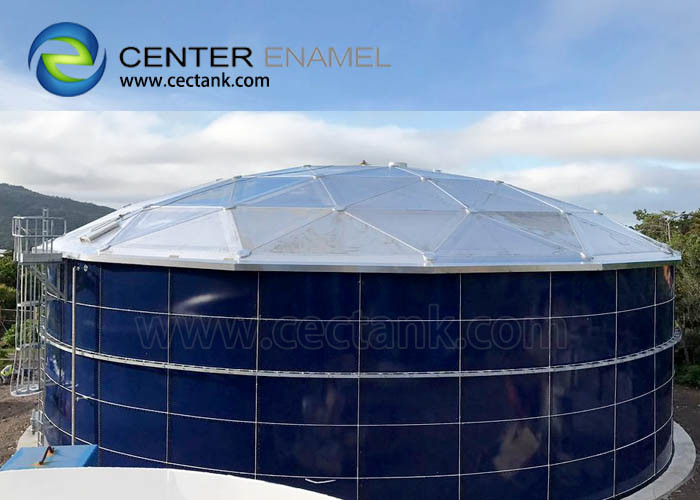

Glass Fused To Steel Biogas Storage Tanks for Biogas Project
Our removable and expandable Glass Fused To Steel Biogas Storage Tanks are assembled with special high-grade bolts and sealed by constantly flexible silicone ( sealant ). The connecting material and shell accessories are equipped by the surface treatment. Verified life time of such tank made from glass fused to steel plates is more than 30 years and have high abrasion resistance and chemical resistance ( pH 2 -13 ) standard. Glass fused to steel tanks are used for high variability of construction tank design ( diameter , height , piping connection ) and placing of technical equipment ( pumps , agitators , heating ).
Glass Fused To Steel Biogas Storage Tanks Specififcations
| Coating color | dark blue, dark green, white, and customized |
| A standard steel plate size | effective size 2400mm x 1200 m |
| Steel plates thickness | 3mm - 12mm, depends on the diameter & height |
| Coating thickness | 0.25mm - 0.4mm, two coatings internal and external |
| Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
| Adhesion | 3,450N/cm |
| Elastic | same as steel sheet, around 500KN/mm |
| Hardness | 6.0 Mohs |
| Service life | >30 years |
| Spark test | >1500 V |
| Permeability | gas and liquid impermeable |
| Easy yo clean | smooth, glossy, inert, anti-adhesion |
| Corrosion resistance | excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds |
Why choose Removable and Expandable Glass Fused To Steel Biogas Storage Tanks ?
1. Short Construction Period: compare to over 90 days construction time of concrete tank, it takes even less than 15 days for installation of GFS Leachate Storage Tanks.
2. Superior Corrosion Resistance: Center Enamel Leachate Storage Tanks can resist PH range of 1 - 14.
3. Long Service Life: the Center Enamel GFS Tank are designed to work in a long service life as more than 30 years.
4. Tank Volume can be easily expand: GFS Leachate Storage Tanks are not only easy to construct, but also convenient to expand, remove and rebuild.
5. Beautiful Appearance: the color of glass fused to steel tank could be customized as per client’s request based on Pantone Matching System.
Glass Fused To Steel Biogas Storage Tanks Manufacturer
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
Glass Fused To Steel Biogas Storage Tanks Project References
