| Adhesion: | 3,450N/cm | Elastic: | Same As Steel Sheet ,around 500KN /mm |
|---|---|---|---|
| Acid And Alkalinity Proof: | Standard Sheet PH:3~11 Special Sheet PH: 1~14 | Service Life: | ≥30 Years |
| Permeability: | Gas And Liquid Impermeable | Material: | Glass And Steel |
| Coating Color: | Can Be Customized | Coating Thickness: | 0.25mm~0.40mm & Double Coating |
| High Light: | ISO 28765 Liquid Storage Tanks,3450N/cm Liquid Storage Tanks,Glossy Bolted Steel Tanks |
||
Glass lined steel tanks create an impervious barrier, ideal for storing many and various materials, since it is not subjected to the impact of liquids or steam, controlling the weakening that may be caused by corrosion, because of its durability, impact resistance and wear resistance. It is also a unique deterrent to most common graffiti because it can be easily removed and it does not require paint.
Glass Lined Steel Liquid Storage Tanks are the leader of liquid storage solutions, which is widely used as Water Storage Tanks for Potable Distribution Line, Bio Gas Plant, Waste Water Treat Plant (WWTP) etc. Glass Lined Steel Industrial Liquid Storage Tanks combine the strength and flexibility of steel and the corrosion resistance of glass., Glass lined liquid tanks can resist corrosion of Waste Water of PH 1 - 14.
Glass Lined Steel Liquid Storage Tanks Specifications
| Coating color | dark blue, dark green , white, and customized |
| A standard steel plate size | effective size 2400mm x 1200 m |
| Steel plates thickness | 3mm - 12mm , depends on the diameter & height |
| Coating thickness | 0.25mm - 0.4mm, two coating internal and external |
| Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
| Adhesion | 3,450N/cm |
| Elastic | same as steel sheet , around 500KN/mm |
| Hardness | 6.0 Mohs |
| Service life | >30 years |
| Spark test | >1500 V |
| Permeability | gas and liquid impermeable |
| Easy yo clean | smooth, glossy, inert, anti-adhesion |
| Corrosion resistance |
excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds
|
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
Advantages of the Glass Lined Steel Liquid Storage Tanks
1. Short construction period
2. Superior corrosion resistance, service life is more than 30 yeas
3. Low project cost
4. Tank volume can be easily expanded
5. Beautiful appearance, color can be customized
6. Not subject to weather conditions
7. No need big installation equipment
8. Easily expand, dismantle, move

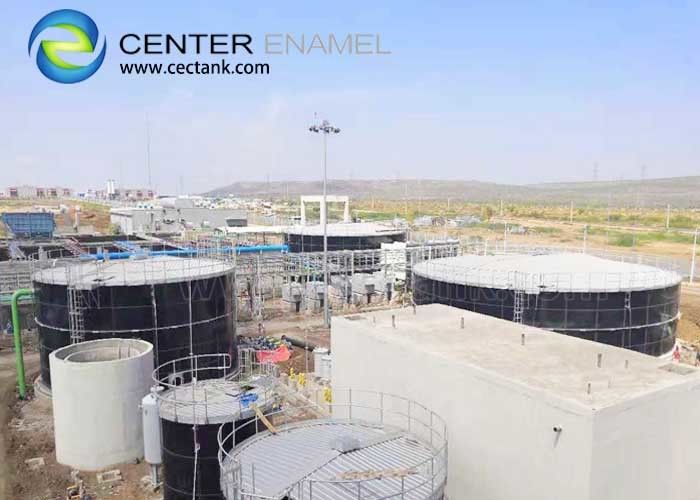

Glass Lined Steel Liquid Storage Tanks Project
