Glass Fused To Steel Farm Biogas Tanks For Steel Bolted Tank For Biogas Anaerobic Digestion Of Cow Farm

Product Details
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden
Delivery Time: 10-30 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Detail Information

Place of Origin China Brand Name CEC TANKS
Certification ISO 9001:2008, AWWA D103 , OSHA , BSCI Model Number W
Tank Body Color: Dark Green / Can Be Customized Corrosion Integrity: Excellent
Steel Plates Thickness: 3mm To 12mm , Depends On The Tank Structure Chemical Resistance: Excellent
Size Of Panel: 2.4M * 1.2M Easy To Clean: Smooth, Glossy, Inert, Anti-adhesion
High Light:

Steel Farm Biogas Tanks

,

Glass Fused Farm Biogas Tanks

,

3mm Biogas Anaerobic Digestion tank

Product Description

Glass Fused to Steel Farm Biogas Tanks For Steel Bolted tank for biogas anaerobic digestion of cow farm



Glass fused to steel (glass-lined steel) is a unique channel surface treatment. The two materials are fused together to achieve the best properties of both -- the strength and flexibility of the steel combined with the corrosion resistance of the glass. Glass is fused to the inner and outer surfaces of steel, providing years of trouble-free service in harsh environments.



Our glass fused to steel farm biogas storage tank consists of glass-lined steel plates, special sealants, self - locking bolts, and a double film roof with a capacity of 50 m to 25,000 m. The glass molten steel industrial tank produced by our company is mainly used in large scale field biogas digester, industrial wastewater treatment, municipal wastewater treatment and sewage treatment.



Glass Fused to Steel Farm Biogas Tanks Advantages



1. Easy and quick to be built

The construction of our glass fused to the steel industrial liquid tank is enamel coating steel sheet, special sealant, self-locking bolt, which is exempt from the difficult airtight craft. So the technical difficulty is greatly decreased, and the construction period is greatly shortened. To build a glass fused to a steel tank, the constructers are only required to master how to assemble and disassemble the steel mold.



2. Easy to maintain

The glass fused to steel industrial liquid tanks is with excellent performance of anti-leaking, anti-abrasion, anti-corrosion. And the color won't fade even after 30 years. It can be used in a harsh environment.



3. Durable

The glass fused to steel industrial liquid tanks can last over 30 years.



4. Excellent safety feature

The glass fused to the steel industrial liquid tank is antistatic. And as contains titanium, our steel is twice harder than traditional steel plate.



5. Low cost

The glass fused to steel industrial liquid tanks are easy to be transported, built, maintained and repaired. So the total cost is much lower when compared to other traditional tanks.



Glass Fused to Steel Farm Biogas Tanks Specifications



Coating color dark blue, dark green, white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm, depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coatings internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet, around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance

excellent! Suitable for wastewater saltwater, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds





Glass Fused to Steel Farm Biogas Tanks Manufacturer



Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.

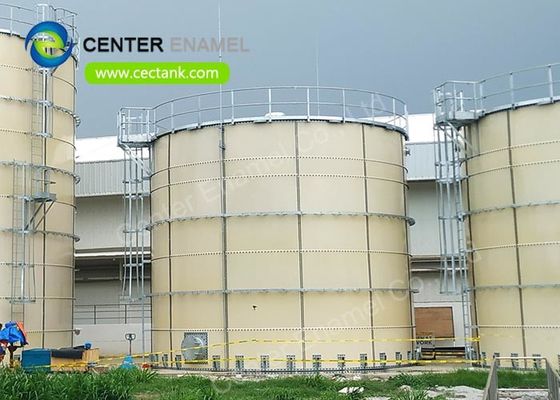

Glass Fused to Steel Farm Biogas Tanks Project References.


Glass Fused To Steel Farm Biogas Tanks For Steel Bolted Tank For Biogas Anaerobic Digestion Of Cow Farm 0
