Payment & Shipping Terms:
|Corrosion Integrity:||Excellent||Steel Plates Thickness:||3mm To 12mm , Depends On The Tank Structure|
|Size Of Panel:||2.4M * 1.2M||Easy To Clean:||Smooth, Glossy, Inert, Anti-adhesion|
|Feature:||Eco-friendly, Durability||Steel Grade:||ART 310|
ART 310 Drinking Water Storage Tanks,
12mm Drinking Water Storage Tanks

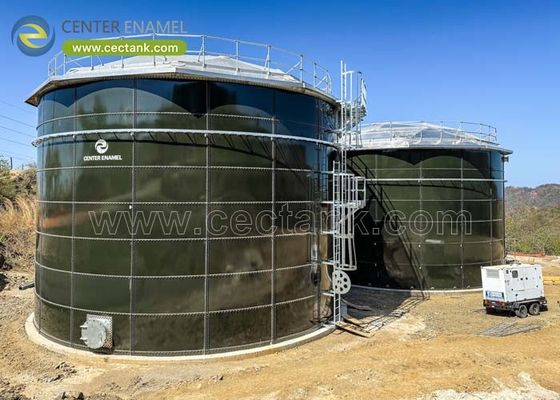

FDA Approved Glass Fused to Steel Drinking Water Storage Tanks For Liquid Storage
As with any really important decision, choosing the right size and type of drinking water storage tank is crucial so that when needed, you won't be surprised when you start using the water that you have stored for your drinking water storage needs. An important element in the quality of the storage tank is the ability to keep the water clean and ready for use, which, in most cases, means that a liner or bladder is needed to keep the water from being previously in contact with steel. Steel coated with this material will do the same thing as stainless steel or glass-lined steel.
Drinking Water Storage Tanks Specifications
|Coating color||dark blue, dark green, white, and customized|
|A standard steel plate size||effective size 2400mm x 1200 m|
|Steel plates thickness||3mm - 12mm, depends on the diameter & height|
|Coating thickness||0.25mm - 0.4mm, two coatings internal and external|
|Acid and alkalinity proof||standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14|
|Elastic||same as steel sheet, around 500KN/mm|
|Service life||>30 years|
|Spark test||>1500 V|
|Permeability||gas and liquid impermeable|
|Easy yo clean||smooth, glossy, inert, anti-adhesion|
excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil,
salt fox, organic and inorganic compounds
Glass fused steel tank advantages
1. factory fabrication tank. No painting or spray-on erection site. The process of glass coating is finished in the factory, so there is no spray works to be done on the job site . Glass fused steel tank is a kind of factory pre-fabricated tank
2. superior performance in corrosion resistance and against rust: glass fused steel tank is a combination of glass and steel . Glass is coated to steel and become a protection layer to the tank body
3. No need crane or other large equipment during erection. Since glass fused steel tank is a bolted type tank. So no need for a crane to hang the tanks and located it. Workers just assemble steel plates and bolted them piece by piece
4. Minimal maintenance cost: once it is erected, there is minimal maintenance requirement needed.
5. Not subjected to severe weather and environment. Glass fused steel tank is not subjected to environmental and weather. It can be erected at remote places like a desert and extremely cold places.
6. It can be designed for future expansion, dismantle, or re-movement. If it is specified before the tank manufacturing that future expansion is needed, the engineer will make the structure suitable for future enlarged capacity. It can be realized by simply adding another ring
7. Free service for technical drawings. Once an order deal, all drawings, pictures, technical documents are provided to the customer free of charge.
8. Turnkey service from proposal to tank commissioning. Our team provides proposals according to the customer’s tender file or FRQ, a shipment of material, tank erection, waterproof treatment, and commissioning.
Drink water tanks manufacturer
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
Contact Person: Miss.Melody wong
Acid and alkalinity proof: standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Usage: waste water treatment , sewage treatment, effluent treatment, ect.
Corrosion resistance: excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds
Spark test: >1500 V
