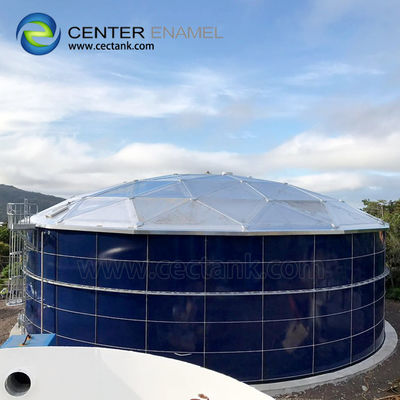

Glass Fused To Steel Biogas Storage Tank With Corrosion Resistant
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W20160504007 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 0-60 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W20160504007 |
| Material: | Glass Fused To Steel | Foundation: | Concrete Or Glass Fused Steel |
| Steel Grade: | ART 310 | Roof: | Can Be Glass Fused Steel Roof , Membrane Roof, Aluminum Roof , GRP Roof |
| Service Life: | Over 30 Years | Highlight: | Fused To Steel Biogas Storage Tank,Glass Biogas Storage Tank |
Product Description
Build worry-free Biogas tanks for less with corrosion resistant Glass Fused to Steel Tanks
Biogas storage tank is also called biogas holder and is a kind of Anaerobic digestion tanks which are often cone shaped and supported at the centre with a single pole. The outer layer of membrane roof works as the protection for the inner membrane . The outer membrane is more strong and coated with UV resistance coating . Outer membrane can be against static electricity, ultraviolet radiation and aging. Inner coat can be against biogas leakage.
Why use Glass-Fused-To-Steel Tank for biogas storage tank ?
1. Advanced technology and innovative edge protection ensure Center Enamel Glass-Fused-to-Steel Tanks are the exceptional solution in most harshest storage environment.
2. Center Enamel Glass-Fused-to-Steel tanks with superior corrosion resistance can be utilized in both the liquid and gaseous zone, and maximizing the service life of tank structure.
3. Customized colors make the tank harmonized with the surrounding environment.
4. Long service life glass coating requiring minimal maintenance, reducing the risk & loss of project shutdown during operation.
5. Modular bolted constructure give shorter installation period with simple installation tools.
6. Tank can be dismantled and rebuilt, gives continuous asset value to the product.
Glass Fused to Steel Bolted Biogas Storage Tank Specifications
| Coating color | dark blue, dark green, white, and customized |
| A standard steel plate size | effective size 2400mm x 1200 m |
| Steel plates thickness | 3mm - 12mm, depends on the diameter & height |
| Coating thickness | 0.25mm - 0.4mm, two coatings internal and external |
| Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
| Adhesion | 3,450N/cm |
| Elastic | same as steel sheet, around 500KN/mm |
| Hardness | 6.0 Mohs |
| Service life | >30 years |
| Spark test | >1500 V |
| Permeability | gas and liquid impermeable |
| Easy yo clean | smooth, glossy, inert, anti-adhesion |
| Corrosion resistance |
excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds
|
About Center Enamel Co., Ltd
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
