ART 310 Steel Tightness Biogas Tanks Standard Coating For PH3 - PH11
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, NSF - 61 , AWWA D103 , OSHA , BSCI |
| Model Number: | W20160831001 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 30 days after deposit received |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, NSF - 61 , AWWA D103 , OSHA , BSCI | Model Number | W20160831001 |
| Foundation: | Concrete Or Glass Fused Steel | Tank Body: | Glass Fused To Steel |
| Service Life: | ≥30 Years | Holiday Test: | >1500v |
| Tank Material: | Glass Fused To Steel | Corrosion Integrity: | Excellent |
| Highlight: | Steel Tightness Biogas Tanks,ART 310 Tightness Biogas Tanks |
||
Product Description

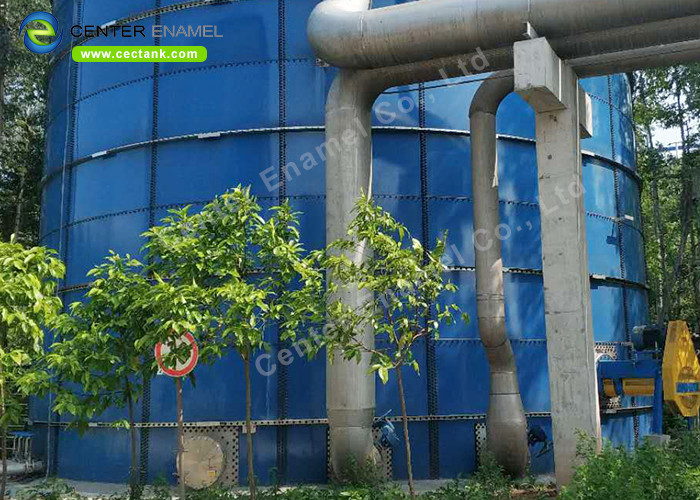

ART 310 Steel Grade Tightness Biogas Tanks Standard Coating Suits For PH3 - PH11
In industry, agriculture and municipalities the increasing integration of renewable, fluctuating energy sources makes the use of flexible storage options to an important instrument with the control of energy flows. Biogas tanks are an active contribution to the generation of renewable energies, and thus to environmental protection in general. Now biogas tank are used for storing digester gas from waste water treatment plants. Our biogas storage tanks are consisted of Glass-Fused-to-Steel Plate, also called glass fused to steel tanks. This glass fused to steel biogas storage tanks design has been tested and proven over the decades and now is an integral feature in the design of any modern waste water treatment plant worldwide.
Biogas Storage Tanks Specifications
| Coating color | dark blue, dark green, white, and customized |
| A standard steel plate size | effective size 2400mm x 1200 m |
| Steel plates thickness | 3mm - 12mm, depends on the diameter & height |
| Coating thickness | 0.25mm - 0.4mm, two coatings internal and external |
| Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
| Adhesion | 3,450N/cm |
| Elastic | same as steel sheet, around 500KN/mm |
| Hardness | 6.0 Mohs |
| Service life | >30 years |
| Spark test | >1500 V |
| Permeability | gas and liquid impermeable |
| Easy yo clean | smooth, glossy, inert, anti-adhesion |
| Corrosion resistance | excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds |
Our Advantages
- The first and most professional Glass-Fused-to-Steel tanks manufacturer in Asia
- Innovative enameling protection technology on sheet’s four edges and bolt holes
- Successful projects reference in more than 65 countries in the world
- Products conform to or exceed AWWA D103-09, OSHA and ISO/EN 28765
- Certified by ISO9001, NSF61, BSCI etc. international qualification system
- Cutting edge enameling technology to lead industry innovation
- Quick installation and lowest maintenance cost
Glass-Fused-to-Steel Tanks manufacturer
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61, API and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 65 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
