Expanded Bolted Steel Biogas Storage Tank With Double Membrane Roof
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W20160901012 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 0-60 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W20160901012 |
| Adhesion: | 3,450N/cm | Service Life: | ≥30 Years |
| Elastic: | Same As Steel Sheet ,around 500KN /mm | Design Life: | 50years |
| Tank Material: | Glass Fused To Steel | Foundation: | Concrete Or Glass Fused Steel |
| Highlight: | Bolted Steel Biogas Storage Tank,Membrane Roof Biogas Storage Tank,Enamel Roof Biogas Storage Tank |
||
Product Description

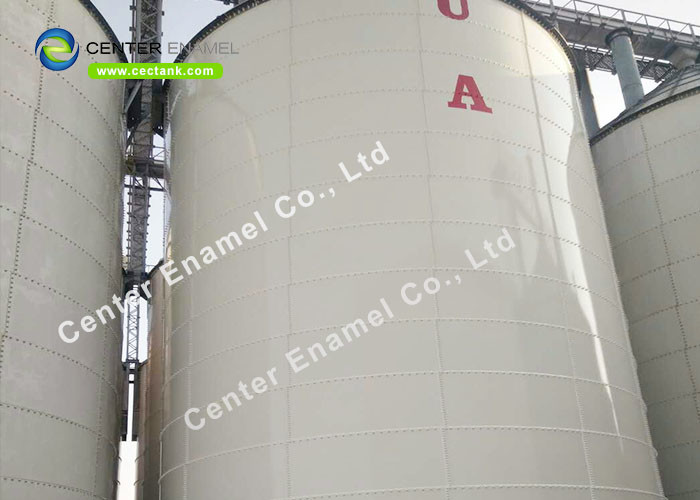

Easily Expanded Bolted Steel Biogas Storage Tank with Double Membrane Roof or Enamel Roof
Center Enamel Co., Ltd is a professional factory specialized at making factory coated bolted steel biogas storage tank . The biogas storage tank wall is made of fusion glass lined carbon steel plates . The roof is double membrane gas holder which is the place where biogas is stored .
This is a intergrated unit : the coated bolted steel tank body is acting as the digester space , the double membrane gas holder is storing biogas generated from the digestion process .
Center Enamel biogas storage tank combines the strength of steel with the corrosion and scratch resistance of glass. Compared to other spray application methods, which often use inorganic clays to suspend the particles in water, enamel powder coating provides the proven optimal purity.
Biogas Storage Tank Specifications
| Coating color | dark blue, dark green, white, and customized |
| A standard steel plate size | effective size 2400mm x 1200 m |
| Steel plates thickness | 3mm - 12mm, depends on the diameter & height |
| Coating thickness | 0.25mm - 0.4mm, two coatings internal and external |
| Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
| Adhesion | 3,450N/cm |
| Elastic | same as steel sheet, around 500KN/mm |
| Hardness | 6.0 Mohs |
| Service life | >30 years |
| Spark test | >1500 V |
| Permeability | gas and liquid impermeable |
| Easy yo clean | smooth, glossy, inert, anti-adhesion |
| Corrosion resistance |
excellent! Suitable for wastewater saltwater, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds
|
GFS Biogas Storage Tank Advantages :
- Short construction period, low project cost ;
- Superior corrosion resistance, service life is more than 30 yeas
- Convenient installation, easy construction, good quality
- Tank volume can be easily expanded
- Beautiful appearance, color can be customized
- Not subject to weather conditions
- No need big installation equipment
- Easily expand, dismantle, move
Biogas Storage Tank Manufacturer
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
Biogas Storage Tank Project References
