Glass Fused to Steel Anaerobic Digester Tank For Food Processing Wastewater Treatment
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | J2016012635 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 0-60 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | J2016012635 |
| Lifespan: | More Than 30 Years | Coating Thickness: | 0.35 Mm |
| Coating Color: | Customized | Roof Type: | Glass Steel Roof, Membrane Roof, Aluminum Roof, GRP Roof |
| Design According To: | AWWA D 103 , OSHA | Tank Color: | Dark Green, Dark Blue, Light Blue And Customized |
| Tank Material: | Glass Coated Steel Sheets | Capacity Range: | 20 M3 To 18,000 M3 |
| High Light: | anaerobic sludge digester,anaerobic manure digester |
||
Product Description
Anaerobic digestion (AD) is one of the most established technologies for processing waste
organics. Our Glass-Fused-to-Steel Tanks are widely used as anaerobic digestion tanks for wastewater treatment project, special for food processing wastewater treatment. Food processing wastewaters are generated mainly from food-processing industries, food services and retail establishments. As we all know, The characteristics of food processing wastewater vary greatly. Food processing wastewater usually contains dissolved or colloidal forms of organic matter.
Biological treatment is considered to be the most suitable method for the treatment of food processing wastewater. The method used depends on the characteristics of the wastewater being treated. Among the existing aerobic and anaerobic treatment methods, the most effective methods include activated sludge, biofiltration, anaerobic digestion, oxidation ponds, lagoons and sprinkler irrigation. Anaerobic digestion is the most widely used anaerobic treatment method for food processing wastewater. A key advantage of anaerobic digestion over other conventional methods is the ability to convert organic matter into energy-rich biogas, which can be used as fuel or upgraded for clean-fuel vehicles.
Glass Fused to Steel Anaerobic Digestion Tanks Specifications
| Coating Color | Standard dark green and blue or customized |
| Coating thickness | 0.25-0.45mm |
| Acid and alkalinity proof | Standard PH: 3~11, Special PH:1~14 |
| Adhesion | 3.450N/cm |
| Hardness | 6.0 (Mohs) |
| Service life | ≥30 Years |
| Holiday test | >1500V |
| Permeability | Gas liquid impermeable |
| Easy to clean | Smooth, glossy, inert, anti-adhesion |
| Corrosion resistance | Excellent, suitable for wastewater, salt water, sea water, high sulfur crude oil, salt fog organic and inorganic compounds |
Glass Fused to Steel Anaerobic Digestion Tanks Manufacturer
Center Enamel bolted Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC bolted Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel bolted Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.

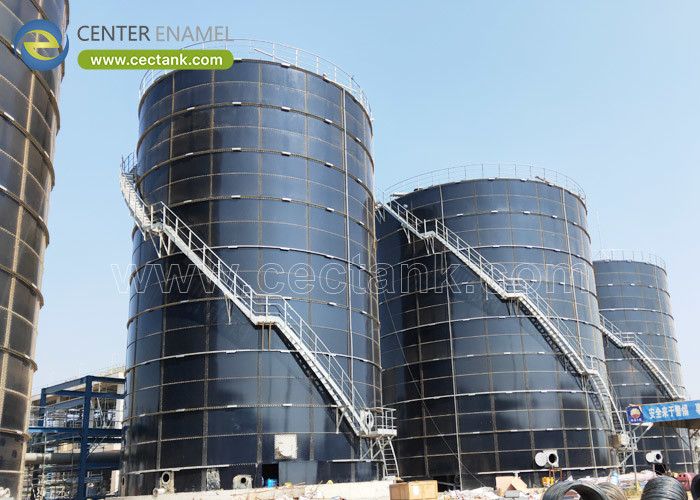

Glass Fused to Steel Anaerobic Digestion Tanks Projects
