ART 310 Glass Fused To Steel Water Tanks For Chemical Wastewater Treatment

ART 310 Glass Fused To Steel Water Tanks For Chemical Wastewater Treatment
ART 310 Glass Fused To Steel Water Tanks For Chemical Wastewater Treatment

Large Image :  ART 310 Glass Fused To Steel Water Tanks For Chemical Wastewater Treatment

Product Details:
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden
Delivery Time: 10-30 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Detailed Product Description
Coating Thickness: 0.25mm~0.40mm , Two Layer Of Coating Internal And External Tank Material: Glass Fused To Steel
Foundation: Concrete Or Glass Fused Steel Steel Grade: ART 310
Steel Plates Thicknes: S 3mm To 12mm , Depends On The Tank Structure Roof Available: Glass Fused Steel Roof , Membrane Roof, Aluminum Roof , GRP Roof
High Light:

glass fused to steel water tanks


above ground fuel storage tanks

Glass Fused to Steel Water Tanks For Chemical wastewater Treatment

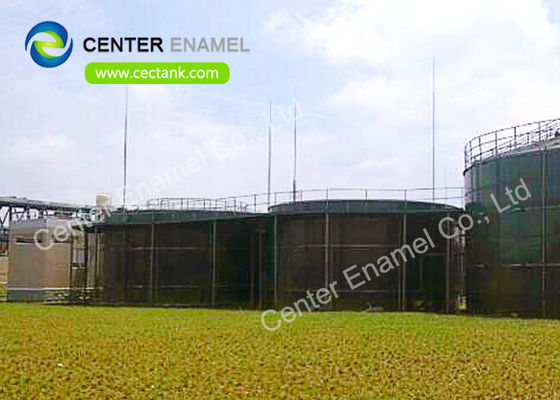

Glass-fused-to-steel is the premium technology in the tank market. The tank is assembled by a special designed enameled steel plate to get the performance of high corrosion resistance, durability, and flexibility on construction ways. Based on the prominent performance, it widely used in the chemical wastewater project, wastewater treatment project, industrial wastewater treatment, agriculture and fermentation industry in the world
Glass Fused to Steel Water Tanks Specifications

Coating color dark blue, dark green, white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm, depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coatings internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet, around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance

excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil,
salt fox, organic and inorganic compounds

Advantages of Glass Fused to Steel Water Tanks
Over 30 year lifespan
Short construction period
Superior corrosion resistance, service life is more than30 years
Low project cost
Tank volume can be easily expanded
Beautiful appearance, color can be customized
No need big installation equipment
Easily expanded, dismantled, moved
Glass Fused to Steel Water Tanks application
Glass fused steel tank is used as various storage tank, digester, reactor in waste to energy and environmental industry especially water plant, waste water treatment plants, fire protection system, anaerobic/aerobic digestion, biogas plant, sewage and effluent treatment , water storage system , agriculture irrigation system, ect.
Roof options available

According to the application of the tank, our sales can recommend most suitable roof proposal . We have Glass-Fused-to-Steel roof with external/internal beams

- air-tightness, GFS/enamel roof is suitable for anaerobic digestion condition
- cone shape roof with external/internal beams according to the requirement
- optimum material same as tank sidewall

Aluminum Alloy Trough Deck Roofs

- economic option for potable water, wastewater, and fire water storage etc.
- only protect from raining and wind, without air-tightness

Single and Double Membrane Roofs

- suitable for anaerobic digestion condition with biogas collection purpose
- integrated AD tank with the cover on top of tank, air-tightness

FRP Roofs

- suitable for no air-tightness required situation such as drinking water, agriculture, fire water, and wastewater storage
- the shape of FRP roof can be dome or flat

Aluminum Dome Roofs

- self-support without support columns
- without air-tightness
