Factory Coated Bolted Steel Tanks for Water Storage or for SBR Reactor

Factory Coated Bolted Steel Tanks for Water Storage or for SBR Reactor
Factory Coated Bolted Steel Tanks for Water Storage or for SBR Reactor Factory Coated Bolted Steel Tanks for Water Storage or for SBR Reactor Factory Coated Bolted Steel Tanks for Water Storage or for SBR Reactor

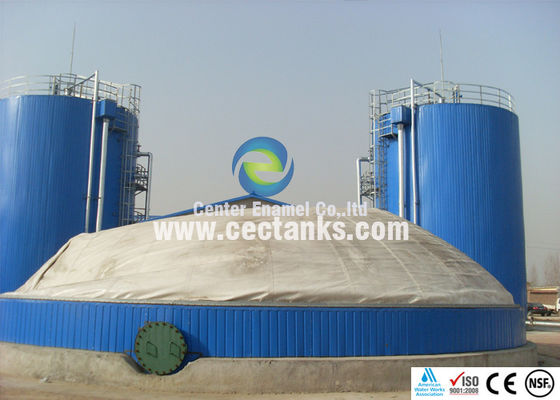

Large Image :  Factory Coated Bolted Steel Tanks for Water Storage or for SBR Reactor

Product Details:
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W20171107003
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 10-30 days after deposit received
Supply Ability: 60 sets per month
Detailed Product Description
Adhesion: 3,450N/cm Service Life: ≥30 Years
Permeability: Gas / Liquid Impermeable Elastic: Same As Steel Sheet ,around 500KN /mm
Steel Grade: ART 310 Corrosion Integrity: Excellent
High Light:

bolted steel water storage tanks

,

above ground water storage tanks

Factory-Coated Bolted Steel Tanks for Water Storage or for SBR Reactor





What is Liquid Storage Tanks?

Glass-Fused-to-Steel (GFS), also known as Glass-Lined-Steel (GLS) and Liquid Storage Tanks, these names all means the same thing. Glass fused to steel tanks are the unique technology, these materials are melted together at +815°C high temperature, resulting an amazing physical and chemical resistance. The main benefits are:



  • Industrial quality control ensure durable, long-lasting coating that fulfills its functions even in the most extreme conditions, without the need for large investments and maintenance in the future.
  • Glass fused to steel tans are assembled in short time, using less equipment.
  • Prefabricated structure makes it easy to replace the damaged panels, or to move the whole tank, etc.
  • Much more cost-effective solution in comparison with concrete and welded tanks.





Specification:

Category Specification
Coating Color Dark green, or Customizing colors
Coating Thickness 0.25~0.40mm, double coating
Acid and alkalinity proof Standard pH: 3~11, Special pH: 1~14
Adhesion 3,450N/cm
Elastic Same as steel sheet, around 500kN/mm
Hardness 6.0 Mohs
Service life ≥30 Years
Holiday test >1500V
Permeability Gas liquid impermeable





GFS Tank Advantages :

- Short construction period, low project cost;

- Superior corrosion resistance, service life is more than 30 years;

- Convenient installation, easy construction, good quality;

- Tank volume is easily expanded;

- Beautiful appearance, color can be customized;

- Not subject to weather conditions;

- No need big installation equipment;

- Easily expand, dismantle, move;



Accessories:

HDG self locking bolts & silicon sealant

external HDG vertical ladder with platform

1 set of HDG manway



Design criterion & certificates: :

OSHA, EN28765, NSF/ANSI 61, ISO9001, FDA, AWWA-D103-09







Tank Size Chart:

CEC full range of Tanks are available in the sizes listed in the table below:

Factory Coated Bolted Steel Tanks for Water Storage or for SBR Reactor 0



Application Fields including:

Power and energy

Biogas biomass Fuel oil Diesel

Aviation oil Kerosene Drilling mud

Process water DI water Reverse osmosis water

Boiler feedwater Coal storage Fly ash silo



Water supply and treatment

Potable water Water purifying tank RO water

Bitter-brackish water Disinfecting water Sea water Desalinization

Raw water / fresh water Fire-fighting water Lime silo

Irrigation water Saline water / brine water Clarification pool

Biological filter Sedimentation container Aeration tank



Wastewater treatment

Buffer pool Regulation tank Water purifying tank

Aerobic reactor Anaerobic reactor Sedimentation container

Biological filter Leachate storage Sludge tank

Effluent treatment Irrigation water Animal wastes



Industrial dry bulk storage

Mineral Chemicals Foods

Wood product Petrochemicals Plasthetics

Stone / clay / glass Mining Industry Grain / seeds





Who we are?

Center Enamel Co., Ltd has been manufacturing and installing a complete line of bolted steel tanks and enamel storage tanks for the potable water, wastewater, fire protection, rain harvesting and bio energy digester Industries since 1989.





CEC Advantages:

  • R&D Ability

With nearly 30 years experience in enameling industry, Center Enamel Co.,Ltd has become the largest and most professional enamel tank manufacturer in China.

We already established a professional R&D team and advanced laboratory. With this strong enameling R&D ability, we can meet various demands of customers.



  • Advanced Production Line - CNC & Automatic production machine



  • Quality Control
  1. Raw Material Test.
  2. Enamel Sample Test
  3. Destructive Test
  4. Acid and Alkali Resistance Test
  5. 1500V Holiday Test
  6. Adherence Test
  7. Enamel Thickness Test



Project reference

Factory Coated Bolted Steel Tanks for Water Storage or for SBR Reactor 1
