| Size Of Panel: | 2.4M * 1.2M | Feature: | Eco-friendly, Durability |
|---|---|---|---|
| Steel Plates Thickness: | 3mm - 12mm , Depends On The Diameter & Height | Applications: | Water , Waste Water, Digester , Reactor , Grain , Sludge , Chemicals |
| Installation: | By Jacking Machine Or Steel Pole, Fast In Installation | Coating Thickness: | 0.25mm~0.40mm , Two Layer Of Coating Internal And External |
| High Light: | glass fused to steel water tanks,above ground fuel storage tanks |
||
Different Type Of Enamel Bolted Steel Tank From Cec Tank
Glass-Fused-To-Steel Tanks production introduction
GFS tanks combine the strength and engineering flexibility of steel with the impermeable and corrosion resistant properties of glass.
>.Fabricated sheets are grit blasted to a uniform,near-white surface
>.A proprietary glass formulation is applied that chemically bonds to each steel panel
>.Dry and firing in tunnel oven at 820℃-930℃ high temperature
>.All enameled sheets are inspected and conduct 1500V holiday test
GFS or enamel sheet specification
| Category | Specification |
| Coating Color | Dark green, or Customizing colors |
| Coating Thickness | 0.25~0.45mm, double coating |
| Acid and alkalinity proof | Standard pH: 3~11, Special pH: 1~14 |
| Adhesion | 3,450N/cm |
| Elastic | Same as steel sheet, around 500kN/mm |
| Hardness | 6.0 Mohs |
| Service life | ≥30 Years |
| Holiday test | >1500V |
| Permeability | Gas liquid impermeable |
| Easy to clean | Smooth, glossy inert, anti-adhesion |
| Corrosion resistance | Excellent suitable for waste water, salt water, sea water, high sulfur crude oil, salt fog, organic and inorganic compounds |
| Modular bolted tank construction | Rapid and cost effective site installation, reducing project timescales, costs and requirement for on site equipment |
| Flexibility to re-model | Tanks can be extended, dismantled and re-sited giving long term asset value |
| Maintenance | Safe and secure storage, with minimal maintenance costs |
Application:
Water supply and treatment
Power and energy
Agricultural silos
Sewage treatment
Biogas/Biomass engineering
Roof type for our GFS tanks:

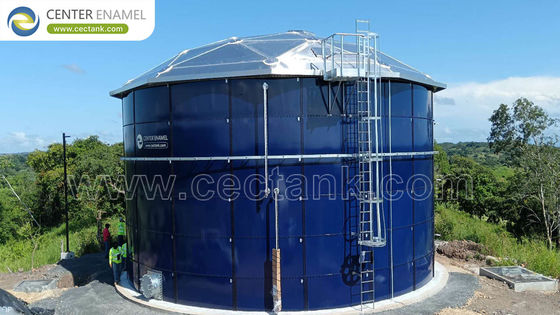

Aluminum Geodesic Dome Roof
2. Aluminum Deck Roof (Highly recommended for potable water storage)
3. Glass Fiber Reinforced Polyester Roof (GRP Roof )

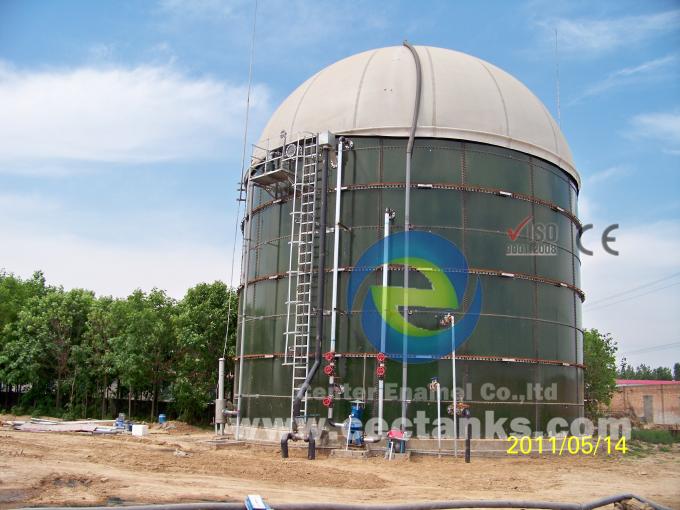

4. Double Membrane Roof
5. Glass Fused to Steel Roof
Parts of the reference projects
2008 Beijing Olympic Games Sewage Treatment--4 sets of Ø18.33×3.6M, 1 set of Ø4.82×3.6M
USA Drinking water storage project-1 set of Ø 20.64*7.2M
Astrialia Filtered water storage project- 1 set of Ø17.58*3M
Malaysia Palm oil biogas plant--2 sets of Ø18.33×3.6M
Indonesia Biogas Fermentation project-3sets of Ø25.22*8.4M
Saudi Arabia Soft drink plant wastewater treatment - 6 sets Ø11.46*10.2M (other different size)
Australia Melbourne Drinking Water Storage--2 sets Ø 22.17 x 6M
New Zealand Dairy Effluent Storage Tank-- 1 set Ø 11.46 x 3.6M
Russia Municipal Wastewater Treatment---2 sets Ø 5.35 x 8.4 M
West Africa Niger Azelik Uranium deposits potable water project --1 set Ø19.86*4.8M
