Center Enamel Glass Fused To Steel Water Tanks For Wastewater Treatment
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W20171016011 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 10-30 days after deposit received |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W20171016011 |
| Tank Body Color: | Dark Green / Can Be Customized | Steel Grade: | ART 310 |
| Chemical Resistance: | Excellent | Corrosion Integrity: | Excellent |
| Feature: | Eco-friendly, Durability | Capactiy Available: | 20 M3 To 18,000 M3 |
| High Light: | glass fused to steel water tanks,above ground fuel storage tanks |
||
Product Description

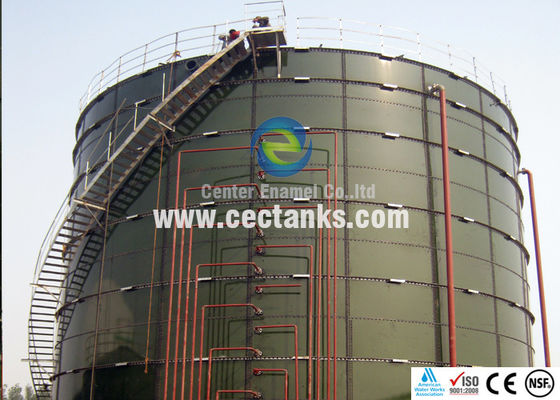

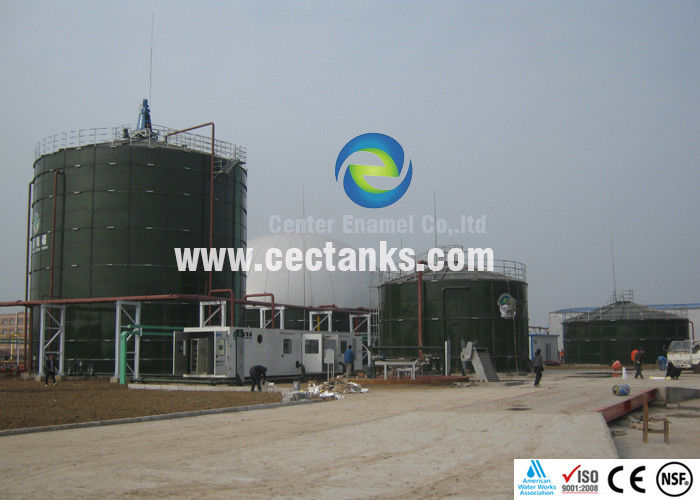

Center Enamel High Quality Glass-Fused-To-Steel Tank For Wastewater Treatment
Brief introduction:
Glass-Fused-to-Steel (Glass-Lined-Steel) is a unique tank finish. Two materials are fused together to achieve the best properties of both – the strength and flexibility of steel combined with the corrosion resistance of glass. Applied to both interior and exterior surfaces, Glass-Fused-to-Steel is able to provide many years of trouble free service in harsh environments. This system has been proven over many decades on thousands of installations, and is supported by International Standards which cover the design and finish requirements.
Steel enameling steps:
1. precise fabrication according to design
2. enamel spraying
3. high temperature burning
4. product testing, packaging, warehousing
| Category | Specification |
| Coating Color | dark green, white, blue, color can be customized |
| Coating Thickness | 0.25～0.40mm ,double coating |
| Acid and alkalinity proof |
Standard sheet PH:3～11 Special sheet PH: 1～14 |
| Adhesion | 3,450 N/cm |
| Elastic | Same as steel sheet,around 500 Kn /mm |
| Hardness | 6.0 ( Mohs ) |
| Service life | ≥30Years |
| Holiday test | >1500v |
| Permeability | Gas / liquid impermeable |
| Easy to clean | Smooth, glossy, inert, non adhesive |
| Corrosion resistance | Excellent,suitable for wastewater,salt water,sea water,high-sulfur crude oil,salt fox,organic and inorganic compounds |
Enamel bolted tank Installation:
