Enamel Bolted Waste Water Storage Tanks With 1500v Holiday Test

Product Details
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W20161124009
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 0-60 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Detail Information

Place of Origin China Brand Name CEC TANKS
Certification ISO 9001:2008, AWWA D103 , OSHA , BSCI Model Number W20161124009
Adhesion: 3,450N/cm Hardness: 6.0Mohs
Service Life: ≥30 Years Permeability: Gas / Liquid Impermeable
High Light:

water treatment tank

,

sewage treatment tank

Product Description

Enamel Bolted Wastewater Storage Tank With 1500v Holiday Test





Brief introduction of glass fused steel tank



Glass fused steel tank is a kind of factory fabrication tank made of glass coated on Ti-rich special steel plates. The steel plates are coated with enamel powder and burned in high temperature oven which makes them superior connection with both .

High recommended, we would cut holes on tank body in the workshop instead of on job site . And along with flange nozzles according to hole.

Glass fused steel tank is usually installed by jacks from top to down, there is no need any other special installation tools. First, assembly the top ring, then lift them up by the jacks ; then assembly the next ring ....

Glass fused steel tank is wide used in water supply and water treatment , wastewater treatment, power and energy, waste water treatment, and dry bulk storage ect. application field .





Glass fused steel tank specifications



Coating color dark blue, dark green , white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm , depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coating internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet , around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds



Oversea projects reference



-- 2008 Beijing Olympics Games wastewater project

-- 2009 Niger Azelik uranium deposits(China National Nuclear Corporation)

-- 2009 Niger Azelik uranium deposits(China National Nuclear Corporation)

-- 2009-2013 Palm oil wastewater treatment project in Indonesia

-- 2011 Anyang city Biogas project

-- Chengde Biology waste water project

-- Brewery wastewater treatment

-- Shandong Garbage waste water treatment project

-- Pharmacy waste water treatment project

-- 2013 Sichuan Chengdu Pharmaceutical wastewate treatment

-- 2014 Urban sludge treatment project- Kazakhstan

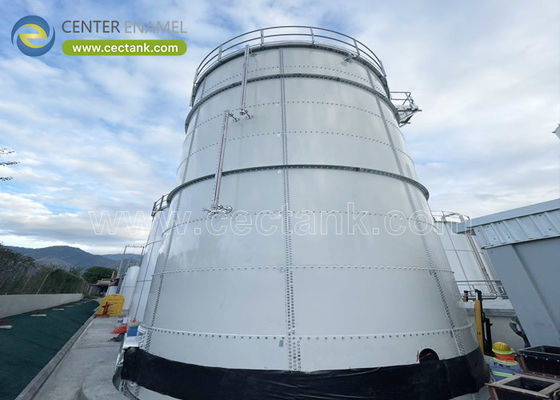

Enamel Bolted Waste Water Storage Tanks With 1500v Holiday Test 0



Advantages of glass fused steel tank



- Over 30 year lifespan

- Short construction period

- Superior corrosion resistance, service life is more than30 years

- Low project cost

- Tank volume can be easily expanded

- Beautiful appearance, color can be customized

- No need big installation equipment

- Easily expanded, dismantled, moved
