Factory Fabrication Bolted Steel Biogas Septic Tank From Min.50m3 To Max. 10,000m3
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W20161123002 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 0-60 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W20161123002 |
| Adhesion: | 3,450N/cm | Service Life: | ≥30 Years |
| Permeability: | Gas / Liquid Impermeable | Elastic: | Same As Steel Sheet ,around 500KN /mm |
| High Light: | bio digester tank,biogas anaerobic digestion |
||
Product Description

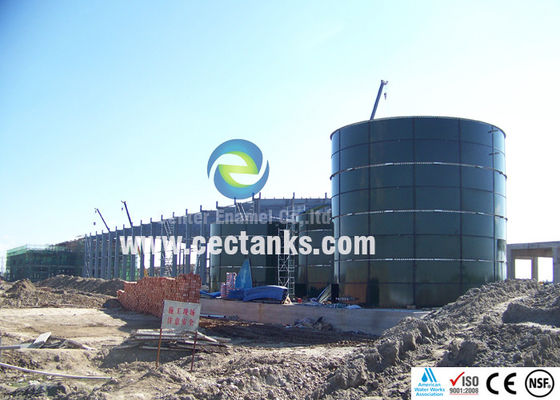

Factory fabrication Bolted Steel Biogas Storage Tank from Min.50m3 to Max. 10,000m3
Center Enamel’ s range of superior biogas storage tanks enables the storage of significant quantities of different gases. These biogas storage systems allow planned biogas storage so that generation plant managers can gather sufficient quantities of fuel in the event of planned export to the grid at a peak price point to optimise revenue.
In the event that a generator is off-line for maintenance, the biogas storage facility will enable maximum gas utilisation. You can use a gound landed spherical PVC double membrane gas holder to collect biogas , or you can use a bolted steel tank mounted with double membrane roof as a temporary storage for biogas .
Specification of Factory fabrication Bolted Steel Biogas Storage Tanks
| Category | Specification |
| Coating Color | dark green, white, blue, color can be customized upon your request |
| Coating Thickness | 0.25 - 0.40mm , double coating |
| Acid and alkalinity proof | Standard sheet PH: 3 - 11 |
| Special sheet PH: 1 - 14 | |
| Adhesion | 3450 N / cm |
| Elastic | Same as steel sheet, around 500 Kn / mm |
| Hardness | 6.0 ( Mohs ) |
| Service life | ≥ 30 Years |
| Holiday test | > 1500 V |
| Permeability | Gas / liquid impermeable |
| Easy to clean | Smooth, glossy, inert, non adhesive |
| Corrosion resistance |
Excellent. suitable for waste water treatment, sewage treatment, effluent treatment |
Factory fabrication bolted steel biogas storage tank has many advantages in this application including :
1. Lower construction costs : a typical tank can be fully installed within 7 - 10 days.
2. Minimal logistics : making it possible to construct a biogas plant in almost any area.
3. Minimal marintainance : as no need for repairs thanks to the corrosion resistance of stainless steel.
4. Gas and water impermeable : joints are easy to keep watertight ; holes are easy to drill ; and gas leakage is prevented.
Except for biogas storage tank , Glass coated bolted steel tank can also be used as :
Agriculture : irrigation water storage tank , dairy farm effluent storage tank , manure storage tank ,
Fire protection system : fire water storage tank
Water supply and treatment : raw water storage tank , river/well/rain water storage tank , treated water storage tank , clear water storage tank , sedimentation tank , sea water tank ,
Waste water treatment : sedimentation tank , equalization tank , regulation tank , sludge holding tank , leachate storage tank , effluent treatment tank , aerobic reactor , anaerobic reactor , buffer hydrolysis tank , ect.
Biogas plant : various anaerobic digester , various aerobic reactor , such as SBR , CSTR , USR , EGSB , UASB , ect.
Grain silo : wheat silo , corn silo , seeds silo ect.
