Waste Water Plants Anaerobic Waste Treatment With Glass Fused To Steel Enamel Bolted Tanks Silo Container
Product Details
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W20161021005 |
Payment & Shipping Terms
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 0-60 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W20161021005 |
| Adhesion: | 3,450N/cm | Hardness: | 6.0Mohs |
| Design Life: | 50years | Capacity: | 20 M3 To 18,000 M3 |
| Coating Thickness: | 0.25mm~0.40mm , Two Layer Of Coating Internal And External | Tank Material: | Glass Fused To Steel |
| High Light: | anaerobic sludge digester,anaerobic manure digester |
||
Product Description

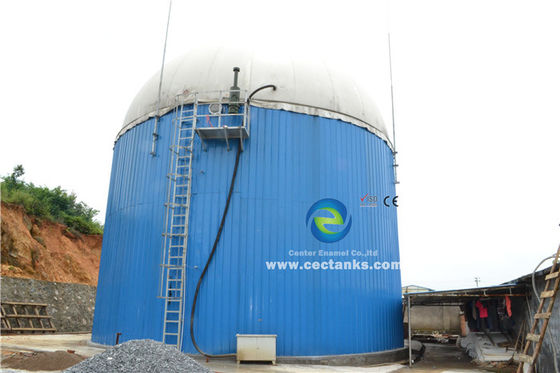

Waste to Energy Power Plants with Glass Fused to Steel Enamel Bolted Tanks Silo Container
Glass Lined to Steel Bolted Tanks differ from other tanks as the tank panels are lined inside and out with a glass enamel that binds to the metal providing many advantages over standard epoxy coated or welded painted storage tanks. The glass lining forms a hard, chemically inert layer that permanently protects the steel surface from rust, corrosion, undercutting, abrasion and stains.
Enamel Tank Specification
| Coating Color: | White, Blue or as per request |
| Number of Coats: | 2 coating (double sides) |
| Number of Fires: | 2 burning (double sides) |
| Coating Thickness: | 0.25 - 0.40mm |
| Steel Size: | 2500 x 1250mm |
| Steel thickness: | 3 - 12mm |
| Adhesion: | 3,450 M/cm |
| Elastic: | 500 KN/mm |
| Hardness: | 6.0 Mohs |
| Service Life: | 30 Years |
| Holiday Test | 1500 V |
Center Enamel Co., Ltd has advanced R&D team which strictly sticks to high-standard testing system. Here are some main testing procedures.
Quality Control
