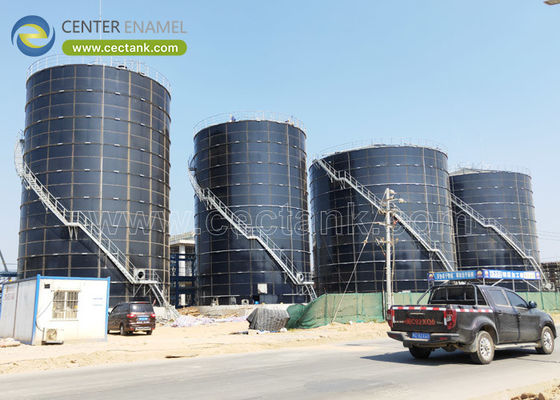

Glass-Fused-to-Steel (GFS) Wastewater Storage Tanks: The Optimal Solution for WWTP

In the industrial and municipal wastewater treatment (WWTP) sector, the containment of effluent is more than a logistical necessity—it is a critical engineering challenge. Wastewater is inherently aggressive; it contains complex organic loads, heavy metals, volatile organic compounds, and fluctuating pH levels that rapidly degrade traditional infrastructure like poured concrete or field-welded carbon steel.

For facility managers and EPC contractors, Glass-Fused-to-Steel (GFS) storage tanks have emerged as the "gold standard" for wastewater infrastructure. By merging the structural resilience of high-strength steel with the absolute chemical inertness of glass, GFS tanks provide a high-performance, long-term solution that significantly reduces operational risk.

The operational environment of a WWTP is hostile. Traditional materials suffer from "concrete cancer" (rebar corrosion), coating delamination, and microbial-induced corrosion. GFS tanks, by contrast, offer a sophisticated engineering alternative.

The core of GFS technology is a molecular, inorganic bond created by firing glass enamel onto steel plates at temperatures between $820^circtext{C}$ and $930^circtext{C}$.

• Broad Chemical Compatibility: Standard grades typically handle pH levels from 3 to 11, while specialized formulations can withstand extreme ranges of pH 1 to 14, making them ideal for high-chloride sewage, industrial effluent, and chemical processing wastewater.

• Non-Porous Barrier: The glass surface is completely non-porous. It does not absorb contaminants, nor does it suffer from the pitting and crevice corrosion that plagues welded steel seams.

In wastewater processing, "dead zones" and sludge accumulation are efficiency killers.

• Anti-Adhesion: The smooth, glass-like finish prevents the adhesion of sludge, fat, oil, and grease (FOG). This ensures consistent flow, easier tank cleaning, and maintenance of optimal biological activity within digesters and aeration tanks.

• Biofilm Prevention: By eliminating the microscopic crevices found in concrete, GFS tanks prevent the establishment of bacterial colonies that can cause long-term structural damage.

Unlike concrete tanks that require weeks or months to pour and cure, or welded steel that is at the mercy of site weather conditions, GFS tanks are modular.

• Site-Independent Construction: Panels are prefabricated in ISO-certified factories.

• Hydraulic Jacking: Our specialized top-down assembly method allows the tank to be built at ground level, eliminating the need for expensive scaffolding, reducing site safety hazards, and compressing construction timelines by up to 60%.

For procurement and project planning, the Total Cost of Ownership (TCO) is the decisive metric.

A: Yes. GFS tanks are the preferred choice for anaerobic digesters. The glass coating is completely resistant to the hydrogen sulfide ($H_2S$) and volatile fatty acids (VFAs) generated during the anaerobic degradation of organic waste.

A: Our tanks are engineered in accordance with international standards, including AWWA D103-19, ISO 28765, and ASCE 7. Before manufacturing, we perform comprehensive structural analysis—including wind, seismic, and hydrostatic load calculations—to ensure your tank is safe for its specific geographical location.

A: Because our tanks are modular and bolted, they are uniquely flexible. If your wastewater treatment capacity needs to increase in the future, it is often possible to add additional rings to the existing structure, a feat impossible with concrete or welded steel.

A: Yes. Traditional tanks often require a cycle of sandblasting, recoating, or crack sealing. GFS technology is a "fit-and-forget" solution. Maintenance is typically limited to routine inspections and minor seal checks, leading to significantly lower operational expenditure (OpEx).

Center Enamel brings over 30 years of global expertise to your wastewater treatment project. We don't just supply tanks; we provide fully integrated, engineered solutions, including site-specific calculations, professional installation, and lifelong technical support.

Ready to optimize your wastewater treatment infrastructure? Our engineering team is available to conduct a feasibility study and capacity assessment for your project.
