|Design Life:||50years||Capacity:||20 M3 To 18,000 M3|
|Elastic:||Same As Steel Sheet ,around 500KN /mm|

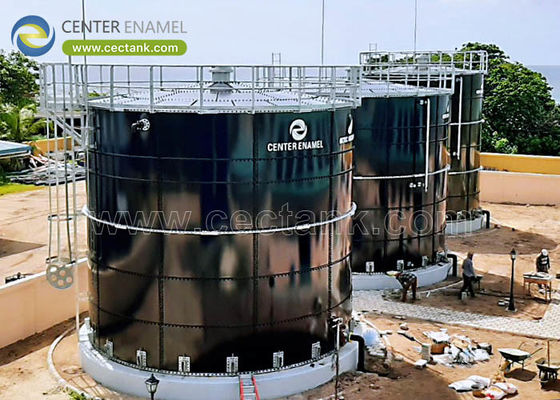

Glass Fused And Factory Lined Steel Tank in China With Competitive Advantages
Glass fused and factory lined steel tanks are mainly consisted of glass fused to steel plates, which with glass fused finish under 850 degrees Celsius firing fusion. By combine the glass anti - corrosion feature with steel hardness advantage, the glass fused to steel plates can resist PH range from 1 to 14. This feature allows glass fused to steel plates used for various storage applications .
Glass fused steel tank advantages
1. factory fabrication tank . No painting or spray on erection site . The process of glass coating is finished in factory, so there is no spray works to be done on job site . Glass fused steel tank is a kind of factory pre-fabricated tank
2. superior performance in corrosion resistance and against rust : glass fused steel tank is combination of glass and steel . Glass is coated to steel and become a protection layer to the tank body
3. No need crane or other large equipment during erection. Since glass fused steel tank is bolted type tank . So no need for crane to hang the tanks and located it. Workers just assemble steel plates and bolted them piece by piece
4. Minimal maintenance cost : once it is erected, there is minimal maintenance requirement needed.
5. Not subjected to severe weather and environment. Glass fused steel tank is not subjected to environmental and weather. It can be erected at remote places like desert and extremely cold places.
6. Can be designed to future expansion, dismantle or re-movement. If it is specified before the tank manufacturing that a future expansion is needed, engineer will make the structure suitable for future enlarged capacity. It can be realized by simply adding another rings
7. Free service for technical drawings . Once a order deal, all drawings, pictures, technical documents are provided to customer free of charge .
8. Turn key service from proposal to tank commissioning . Our team provides proposals according to customer’s tender file or FRQ , shipment of material, tank erection , water proof treatment and commissioning.
Glass fused steel tank specifications
1. Coating color : dark blue, dark green , white, and customized
2. A standard steel plate size : effective size 2400mm x 1200 m
3. Steel plates thickness : 3mm - 12mm , depends on the diameter & height
4. Coating thickness : 0.25mm - 0.4mm, two coating internal and external
5. Acid and alkalinity proof : standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
6. Adhesion : 3,450N/cm
7. Elastic : same as steel sheet , around 500KN/mm
8. Hardness : 6.0 Mohs
9. Service life : >30 years
10. Spark test : >1500 V
11. Permeability: gas and liquid impermeable
12. Easy yo clean : smooth, glossy, inert, anti-adhesion
13. Corrosion resistance : excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds
Glass fused steel tank applications
Storage and process
Process water storage Bulk solids storage
Farm biogas production
Grain and forage silos
Fly ash silo
and so on
Glass fused steel tank roof options
1. Glass fused steel material roof
2. Aluminum sloped deck roof
3. Glass reinforced polyester roof
4. Single / double membrane roof
5. Aluminum geodesic dome roof
