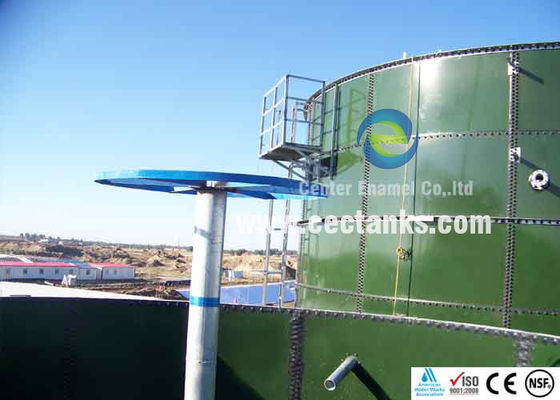

50000 gallon Agricultural Water Storage Tanks With Porcelain Enamel Coating Process
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W20160128017 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 0-60 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W20160128017 |
| Corrosion Integrity: | Excellent | PH Range: | 1~14 |
| Chemical Resistance: | Excellent | Relocation Capability: | Yes |
| Size Change: | Yes | Weather Extremes: | Excellent |
| High Light: | grain storage tanks,large capacity water storage tanks |
||
Product Description
Customized Size Water Storage Enamel Bolted Tank for Agriculture Water Supply
Quick Details
|
Place of Origin : |
Hebei, China ( Mainland ) |
Brand Name : |
ZZ TANK |
|
Finishing : |
Enamel Coating |
Coating Color : |
Customized |
|
Adhesion : |
3,450 N / cm |
Hardness : |
6.0MOhs |
|
Coating Thickness : |
0.25-0.40mm, Double layer and double side coating |
Easy to Clean : |
Smooth, Glossy, Inert, Anti-adhesion |
|
PH Range : |
1-14 |
Service Life : |
Over 30 years |
Customized Size Water Storage Enamel Bolted Tank for Agriculture Water Supply
What’s the Enamel Tank ?
Enamel bolted tank is also called “ Glass-Fused-to-Steel ” tank. Glass-Fused-to-Steel is a unique tank finish. Two materials are fused together to achieve the best of both materials – the strength and flexibility of steel combined with the corrosion resistance of glass. Applied to both interior and exterior surfaces, Glass-Fused-to-Steel is able to provide many years of trouble free service in harsh environments.
Application
|
|
|
|
|
|
|
Fundamental Charteristics
Coating Color dark green, white, blue, color can be customized
Coating Thickness 0.25~0.40mm, double coating
Acid and alkalinity Standard sheet PH:3~11
Proof Special sheet PH:1~14
Adhesion: 3,450 N / cm
Elastic Same as steel sheet, around 500 Kn / mm
Hardness 6.0( Mohs )
Service life >30Years
Holiday test >1500v
Easy to clean Smooth, glossy, inert, non adhesive
Corrosion resistance Excellent,suitable for wastewater,salt water,sea water,high-sulfur crude oil,salt fox,organic and inorganic compounds
Advantage
|
1. |
short construction period |
|
2. |
superior corrosion resistance, service life is more than 30 years |
|
3. |
low project cost |
|
4. |
tank volume can be easily expanded |
|
5. |
beautiful appearance, color can be customized |
|
6. |
not subject to weather conditions |
|
7. |
no need big installation equipment |
|
8. |
easily expand , dismantle, move |
Our Certification
* Being engaged in enamel industry for over 26 years, we process more than 200 patents of enamel frit formulas.
* Complied with quality system certificate ISO9001-2008,glass-fused-to-steel tank manufacturing standard Q/01ZT012009 and NSF (National Sanitation Foundation) .
* We make structure design of GFS tank according to AWWA D103-09 and OSHA.
